Eaton JG3250S41 250A 3P Molded Case Generator Circuit Breaker – Bolt-On – 600VAC

The Eaton JG3250S41 molded case generator circuit breaker provides reliable protection for industrial and commercial electrical systems. Built on the durable JG frame platform, this 3-pole breaker is rated for 250 Amps at 40°C and features a thermal magnetic interchangeable trip unit with a 350–700 Amp adjustable trip range, ensuring consistent protection against overloads and short circuits. The S41 configuration includes a 12–24 VAC or VDC shunt trip installed on the left pole, exiting on the same side, which allows for convenient remote tripping and enhanced system safety. Standard line and load end terminals enable secure connections and easy installation.

Product Specification:

• Brand: Eaton / Cutler Hammer
• Model: JG3250S41
• Frame Type: JG
• Amperage: 250A
• Poles: 3
• Breaker Type: Molded Case Generator Circuit Breaker
• Mount Type: Bolt-On
• Trip Unit Type: Thermal Magnetic Interchangeable
• Configuration: S41 Shunt Trip Option
• Voltage: 600VAC

Technical Specification:

• Trip Setting Range: 350–700A
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC
• Accessory Configuration:
  • S41: 12–24 VAC or VDC Shunt Trip, Left Pole Mounted, Exiting Same Side
• Terminal Type: Standard Line and Load End Terminals
• Mounting Method: Bolt-On Connection

Voltage and Ratings:

• Maximum Rated Voltage: 600VAC
• Rated Current: 250A at 40°C
• Frequency: 50/60 Hz
• Short-Circuit Current Ratings:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC

Product Data:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Frame Series: JG Frame
• Connection Type: Bolt-On
• Standard Lug Type: Line and Load
• Number of Poles: 3
• Installed Accessory: S41 Shunt Trip (12–24 VAC or VDC)

Important Note:

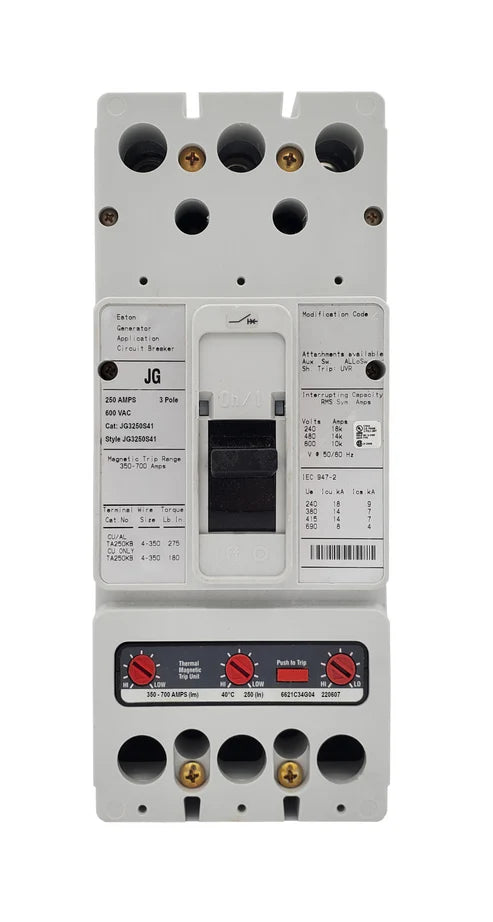

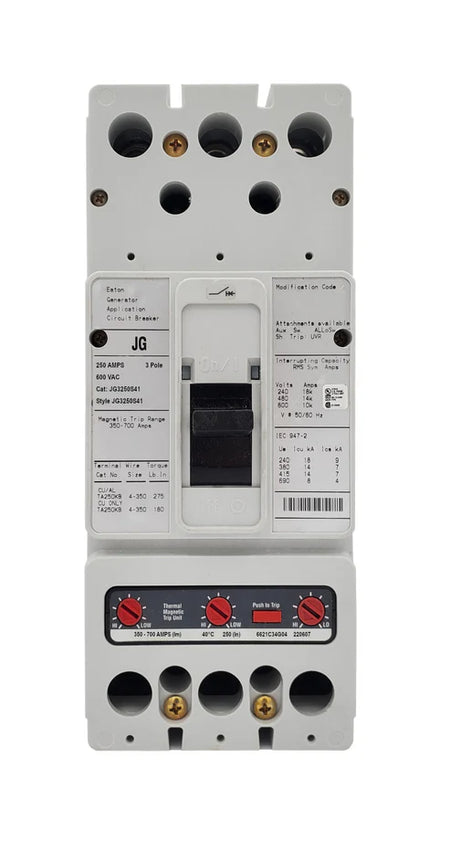

The product image shown represents a base model and is for identification purposes only. If accessories are ordered with the breaker, they will be installed according to your specified configuration at no additional cost. Provide the necessary installation details in the order comment box during checkout. Installation must always be performed by a qualified electrician to ensure safe operation and compliance with applicable electrical codes.
