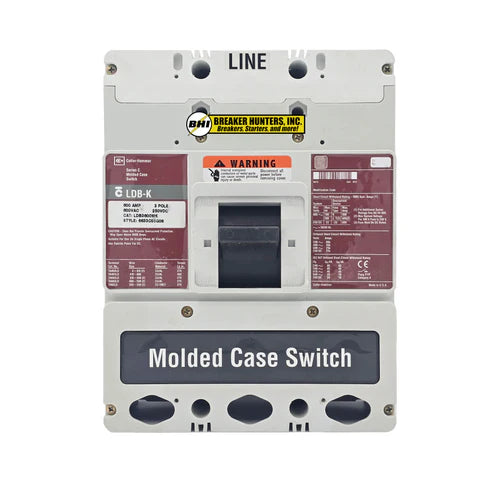

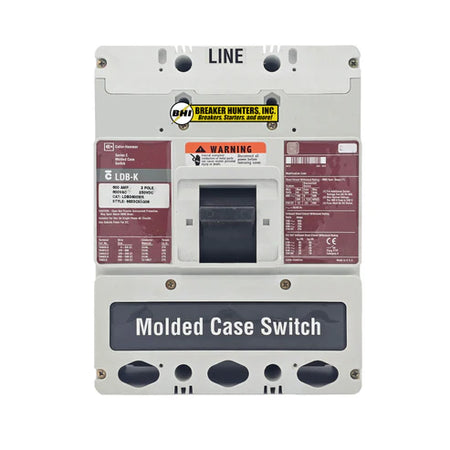

Eaton LDB3600WK 600A 3P Molded Case Switch – LDB Frame – 600VAC

The Eaton LDB3600WK is a heavy-duty molded case switch designed for dependable power control and isolation in commercial and industrial electrical distribution systems. Built on the robust LDB frame platform, this 3-pole switch supports a continuous current rating of 600 amperes at 40°C and operates at up to 600VAC. It offers high interrupting capacity and reliable switching performance, making it suitable for demanding applications where safe circuit isolation and operational durability are required. The design also allows accessory installation to configure the switch according to specific system needs.

Product Specification

• LDB Frame Style Molded Case Switch
• High-capacity switching device for power distribution systems
• Continuous Current Rating: 600A at 40°C
• 3 Pole Configuration
• Designed for industrial and commercial applications
• Compatible with optional accessories for custom configuration

Technical Specification

• Bolt-On Connection Type
• Heavy-duty LDB frame construction
• Designed for safe circuit isolation and switching operations
• Durable mechanism for frequent switching applications

Voltage and Ratings

• Rated Voltage: 600VAC @ 50/60Hz
• Interrupting Capacity:
• • 65kA @ 240VAC
  • 35kA @ 480VAC
  • 25kA @ 600VAC
  • 22kA @ 250VDC

Product Data

• Manufacturer: Eaton / Cutler-Hammer
• Warranty: One Year
• Frame Type: L
• Poles: 3
• Maximum Voltage: 600V
• Amperage Rating: 600A
• Connection Type: Bolt-On
• Standard Lug Type: Not Specified

Important Note

Product images typically represent a base model and are provided for identification purposes only. If accessories are ordered together with the molded case switch, they can be installed during order processing at no additional cost to ensure the unit meets your required configuration. Please provide the necessary details in the order comment section when placing your order.
