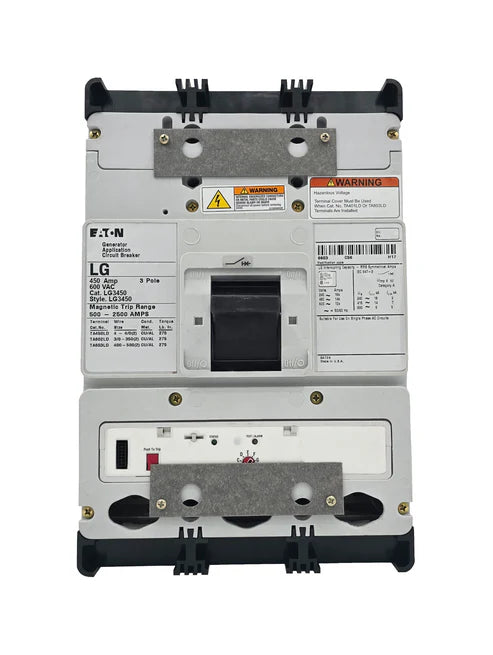

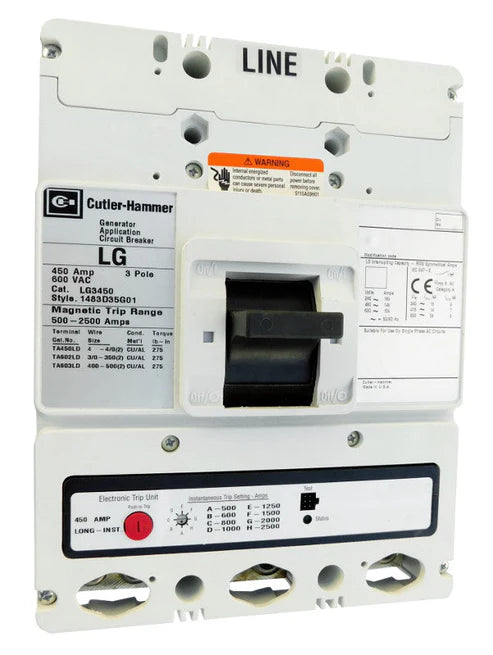

The Eaton LG3450 molded case generator circuit breaker is designed to provide dependable protection and control for generator-based power distribution systems. Built on the durable LG frame platform, this breaker features an electronic interchangeable trip unit with a wide adjustable trip range of 500–2500, allowing flexible protection settings for varying generator load conditions. With a continuous current rating of 450 amperes at 40°C and a 3-pole configuration, the LG3450 ensures reliable performance in generator applications requiring stable and controlled circuit protection. Its bolt-on connection and standard line and load terminals support easy installation and integration into industrial power systems.
Product Specification
- LG Frame Style Molded Case Generator Circuit Breaker
- Electronic Interchangeable Trip Unit
- Adjustable Trip Range: 500–2500
- Continuous Current Rating: 450A at 40°C
- 3 Pole Configuration
- Designed for generator protection applications
Technical Specification
- Electronic Trip Unit for precise protection control
- Adjustable protection settings within the 500–2500 trip range
- Bolt-On Connection Type
- Interchangeable trip unit design for configuration flexibility
- Engineered for generator-based electrical systems
Voltage and Ratings
- Rated Voltage: 600VAC @ 50/60Hz
- Interrupting Capacity:
-
- 18kA @ 240VAC
- 14kA @ 480VAC
- 10kA @ 600VAC
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Warranty: One Year
- Frame Type: L
- Poles: 3
- Maximum Voltage: 600V
- Amperage Rating: 450A
- Connection Type: Bolt-On
- Standard Lug Type: Line and Load Terminals
Important Note

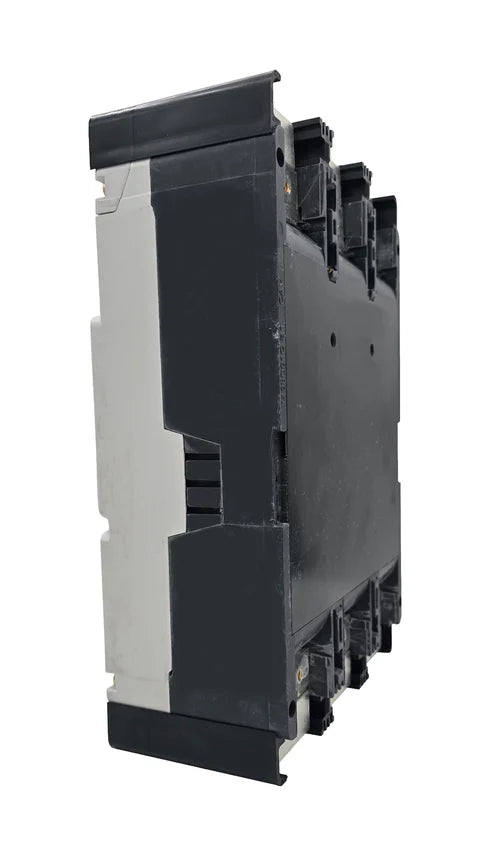

Product images typically represent a base model and are provided for identification purposes only. If accessories are ordered together with the circuit breaker, they can be installed during order processing at no additional cost to ensure the unit meets your specific configuration requirements. Please include the necessary details in the order comment section when placing your order.
