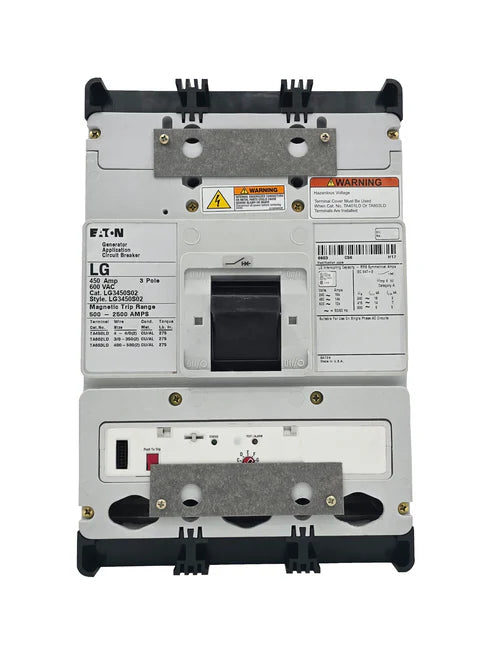

The Eaton LG3450S02 molded case generator circuit breaker is designed for dependable protection and control in generator-based electrical systems. Built on the durable LG frame platform, this breaker features an electronic interchangeable trip unit with an adjustable trip range of 500–2500, allowing flexible protection settings for generator loads. The S02 configuration includes a factory-installed 12–24 VAC/VDC shunt trip mounted on the left pole with rear exit wiring, enabling remote tripping capability for enhanced operational control and safety. With a continuous current rating of 450 amperes at 40°C and a 3-pole design, the LG3450S02 ensures reliable protection and performance in demanding industrial and commercial generator applications.
Product Specification
- LG Frame Style Molded Case Generator Circuit Breaker
- Electronic Interchangeable Trip Unit
- Adjustable Trip Range: 500–2500
- S02 Configuration with Factory-Installed Shunt Trip
- Continuous Current Rating: 450A at 40°C
- 3 Pole Configuration
- With Terminals Standard
Technical Specification
- Electronic trip unit for accurate protection and monitoring
- S02 Option Includes: 12–24 VAC/VDC Shunt Trip
- Shunt Trip Mounted on Left Pole with Rear Exit
- Bolt-On Connection Type
- Interchangeable trip unit design for flexible system configuration
- Designed for generator protection and control applications
Voltage and Ratings
- Rated Voltage: 600VAC @ 50/60Hz
- Interrupting Capacity:
-
- 18kA @ 240VAC
- 14kA @ 480VAC
- 10kA @ 600VAC
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Warranty: One Year
- Configuration: S02 Option (Shunt Trip Installed)
- Frame Type: L
- Poles: 3
- Maximum Voltage: 600V
- Amperage Rating: 450A
- Connection Type: Bolt-On
- Standard Lug Type: With Terminals Standard
Important Note

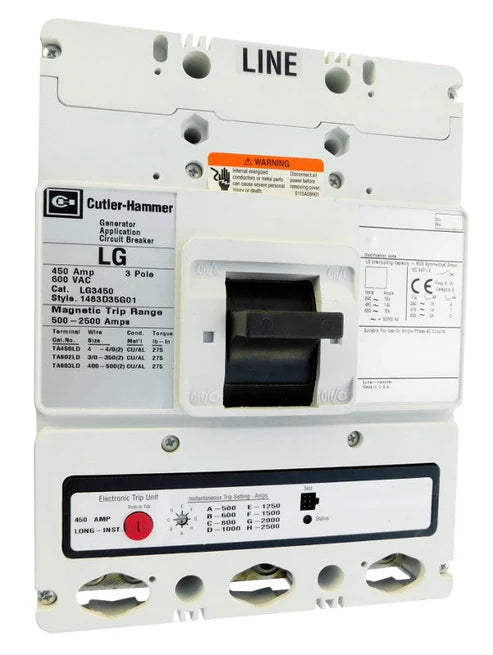

Product images typically represent a base model and are provided for identification purposes only. If accessories are purchased together with the circuit breaker, they can be installed during order processing at no additional cost to ensure the breaker meets your required configuration. Please include the necessary details in the order comment section when placing your order.
