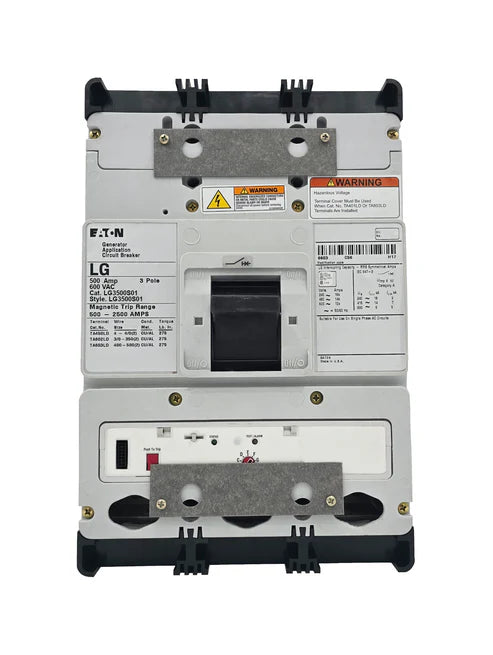

The Eaton LG3500S01 molded case generator circuit breaker is engineered to provide dependable protection and control in generator-based power systems. Built on the robust LG frame platform, this breaker features an electronic interchangeable trip unit with an adjustable trip range of 500–2500, allowing precise configuration for varying generator loads. The S01 option includes a factory-installed 12–24 VAC/VDC shunt trip mounted on the left pole with wiring exiting the same side, enabling remote tripping capability for enhanced operational safety. Supplied with terminals as standard, the LG3500S01 is ready for easy installation while providing reliable performance in commercial and industrial generator applications.
Product Specification
- LG Frame Style Molded Case Generator Circuit Breaker
- Electronic Interchangeable Trip Unit
- Adjustable Trip Range: 500–2500
- S01 Option with Factory-Installed Shunt Trip
- Continuous Current Rating: 500A at 40°C
- 3 Pole Configuration
- With Terminals Standard
Technical Specification
- Electronic trip unit for precise protection and monitoring
- S01 Option Includes: 12–24 VAC/VDC Shunt Trip, Left Pole Mounted, Exiting Same Side
- Bolt-On Connection Type
- Interchangeable trip unit design for flexible system configuration
- Designed for generator protection and control applications
Voltage and Ratings
- Rated Voltage: 600VAC @ 50/60Hz
- Interrupting Capacity:
-
- 18kA @ 240VAC
- 14kA @ 480VAC
- 10kA @ 600VAC
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Warranty: One Year
- Configuration: S01 Option (Shunt Trip Installed)
- Frame Type: L
- Poles: 3
- Maximum Voltage: 600V
- Amperage Rating: 500A
- Connection Type: Bolt-On
- Trip Setting: 500–2500
- Standard Lug Type: With Terminals
Important Note

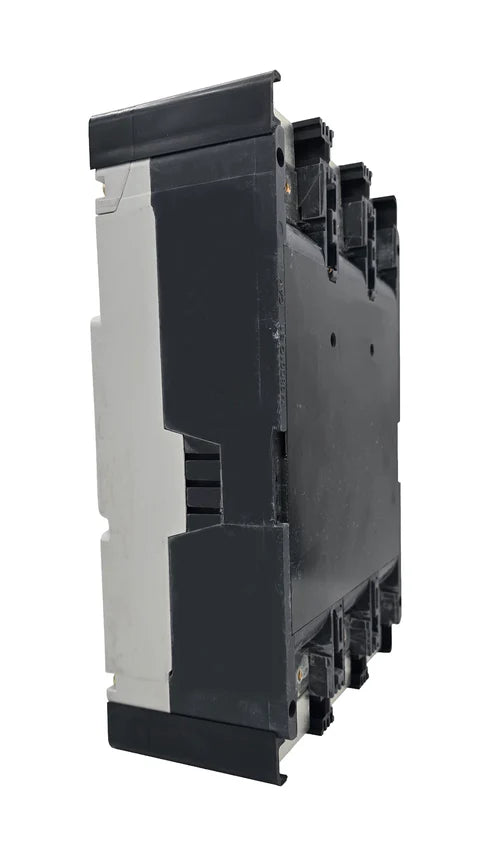

Product images typically represent a base model and are for identification purposes only. If accessories are purchased together with the breaker, they can be installed during order processing at no additional cost to ensure the breaker meets your required configuration. Please include any configuration details in the order comment section when placing your order.
