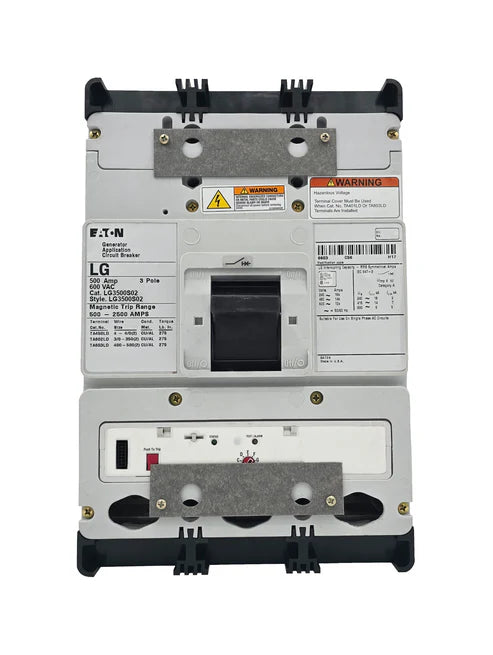

The Eaton LG3500S02 molded case generator circuit breaker is designed to provide dependable protection and operational control for generator-based power distribution systems. Built on the rugged LG frame platform, this breaker incorporates an electronic interchangeable trip unit with an adjustable trip range of 500–2500, enabling accurate protection configuration for generator loads. The S02 option includes a factory-installed 12–24 VAC/VDC shunt trip mounted on the left pole with wiring exiting from the rear, allowing convenient remote tripping capability for improved safety and system control. With a continuous current rating of 500 amperes at 40°C and a 3-pole design, the LG3500S02 is well-suited for demanding commercial and industrial generator applications.
Product Specification
- LG Frame Style Molded Case Generator Circuit Breaker
- Electronic Interchangeable Trip Unit
- Adjustable Trip Range: 500–2500
- S02 Configuration with Factory-Installed Shunt Trip
- Continuous Current Rating: 500A at 40°C
- 3 Pole Configuration
- With Terminals Standard
Technical Specification
- Electronic trip unit for precise protection and monitoring
- S02 Option Includes: 12–24 VAC/VDC Shunt Trip Installed
- Shunt Trip Mounted on Left Pole with Rear Exit
- Bolt-On Connection Type
- Interchangeable trip unit design for flexible system configuration
- Engineered for generator protection and control applications
Voltage and Ratings
- Rated Voltage: 600VAC @ 50/60Hz
- Interrupting Capacity:
-
- 18kA @ 240VAC
- 14kA @ 480VAC
- 10kA @ 600VAC
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Warranty: One Year
- Configuration: S02 Option (Shunt Trip Installed)
- Frame Type: L
- Poles: 3
- Maximum Voltage: 600V
- Amperage Rating: 500A
- Connection Type: Bolt-On
- Trip Setting: 500–2500
- Standard Lug Type: With Terminals Standard
Important Note

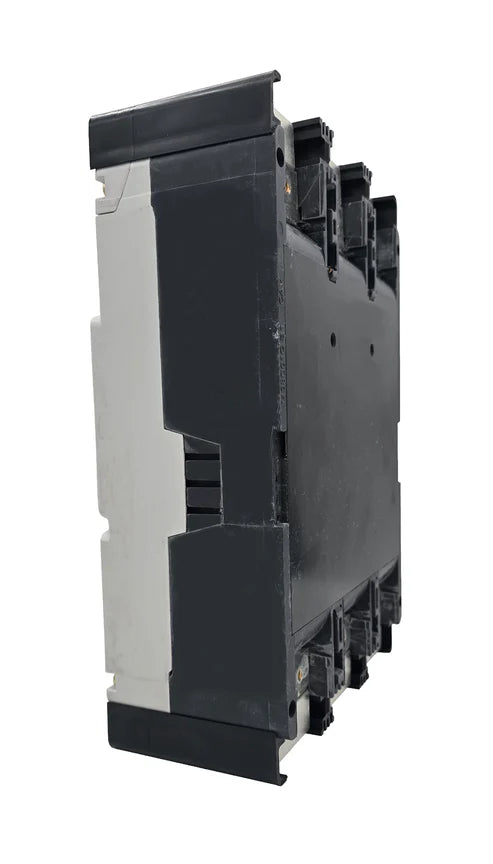

Product images typically represent a base model and are intended for identification purposes only. If accessories are ordered together with the circuit breaker, they can be installed during order processing at no additional cost to ensure the breaker meets your exact configuration requirements. Please provide the necessary installation or configuration details in the order comment section when placing your order
