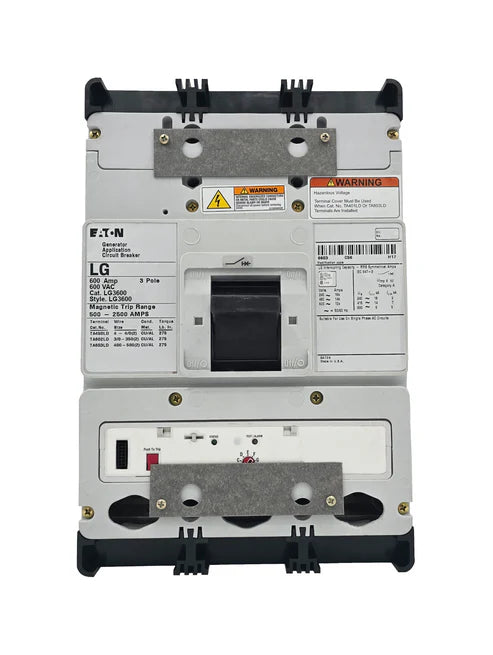

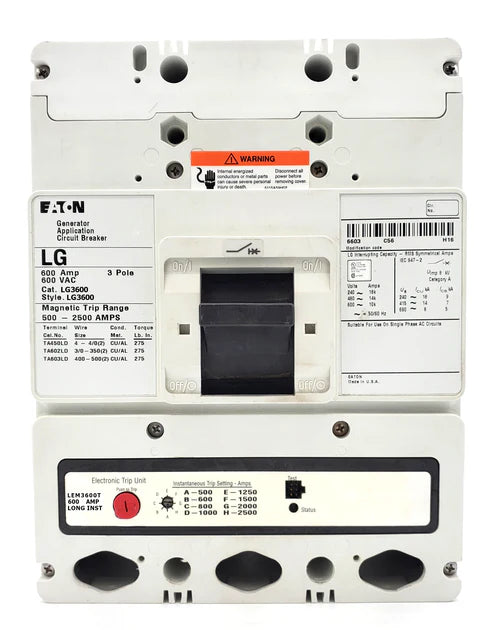

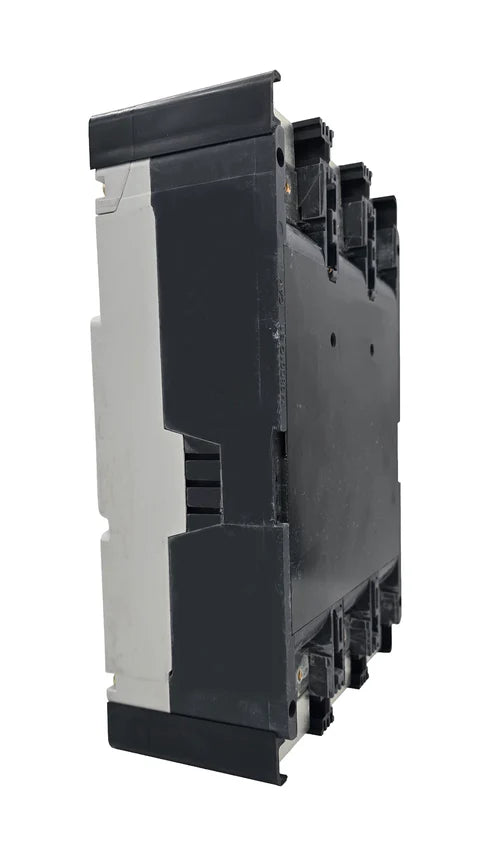

Eaton LG3600 600A 3P Generator Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton LG3600 molded case generator circuit breaker is designed to deliver dependable protection and operational control in generator-powered electrical distribution systems. Built on the robust LG frame platform, this breaker features an electronic interchangeable trip unit with an adjustable trip range of 500–2500, allowing precise protection settings to match various load conditions. Rated for 600 amperes at 40°C and configured with three poles, the LG3600 provides reliable performance for demanding industrial and commercial generator applications. The breaker is supplied with standard terminals, enabling straightforward installation and secure electrical connections.

Product Specification

• LG Frame Style Molded Case Generator Circuit Breaker
• Electronic Interchangeable Trip Unit
• Adjustable Trip Range: 500–2500
• Rated Current: 600A at 40°C
• 3 Pole Configuration
• With Terminals Standard

Technical Specification

• Electronic trip unit for accurate overload and fault protection
• Interchangeable trip unit design for flexible protection configuration
• Bolt-On connection type for secure installation
• Designed specifically for generator circuit protection
• Rugged molded case construction suitable for industrial environments

Voltage and Ratings

• Rated Voltage: 600VAC @ 50/60Hz
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC

Product Data

• Manufacturer: Eaton / Cutler-Hammer
• Warranty: One Year
• Frame Type: L
• Amperage Rating: 600A
• Poles: 3
• Maximum Voltage: 600V
• Connection Type: Bolt-On
• Trip Setting Range: 500–2500
• Standard Lug Type: With Terminals Standard

Important Note

Product images typically represent a base model and are provided for identification purposes only. If accessories are ordered together with the breaker, they can be installed during order processing at no additional cost to ensure the breaker meets your required configuration. Please include any necessary installation or configuration details in the order comment section when placing your order.
