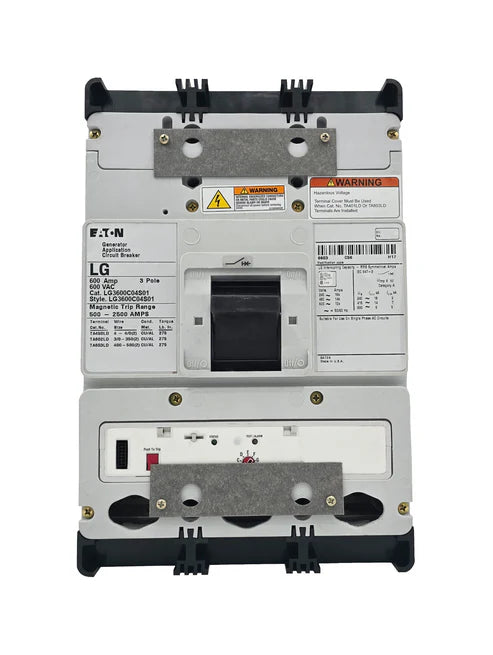

The Eaton LG3600C04S01 molded case generator circuit breaker is designed to provide reliable protection and operational control for generator-based electrical distribution systems. Built on the durable LG frame platform, this breaker features an electronic interchangeable trip unit with an adjustable trip range of 500–2500, allowing precise protection configuration for varying load conditions. Rated at 600 amperes at 40°C with a 3-pole configuration, the breaker is well suited for demanding industrial and commercial generator applications. The S01 configuration includes a factory-installed 12–24 VAC or VDC shunt trip mounted on the left pole with wiring exiting the same side, enabling remote tripping capability for enhanced system control. This model is supplied with line and load terminals as standard, ensuring secure and efficient electrical connections.
Product Specification
- LG Frame Style Molded Case Generator Circuit Breaker
- Electronic Interchangeable Trip Unit
- Adjustable Trip Range: 500–2500
- Rated Current: 600A at 40°C
- 3 Pole Configuration
- S01 Configuration with Factory Installed Shunt Trip
- Line and Load Terminals Standard
Technical Specification
- Electronic trip unit for precise overload and fault protection
- Interchangeable trip unit design for flexible protection configuration
- 12–24 VAC or VDC shunt trip for remote circuit tripping
- Shunt trip mounted on left pole with wiring exiting the same side
- Bolt-On connection type for secure installation
- Heavy-duty molded case construction designed for generator protection systems
Voltage and Ratings
- Rated Voltage: 600VAC @ 50/60Hz
- Interrupting Capacity:
-
- 18 kA @ 240VAC
- 14 kA @ 480VAC
- 10 kA @ 600VAC
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Warranty: One Year
- Frame Type: L
- Amperage Rating: 600A
- Poles: 3
- Maximum Voltage: 600V
- Connection Type: Bolt-On
- Trip Setting Range: 500–2500
- Configuration: S01 – 12–24 VAC/VDC Shunt Trip, Left Pole Mounted, Exiting Same Side
- Standard Lug Type: Line and Load
Important Note
Product images typically represent a base model and are provided for identification purposes only. If accessories are ordered together with the breaker, they can be installed during order processing at no additional cost to ensure the breaker meets your required configuration. Please include any necessary installation or configuration details in the order comment section when placing your order.
