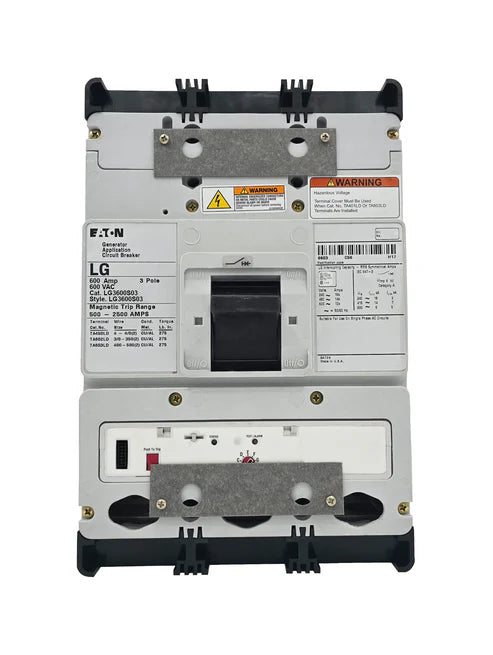

The Eaton LG3600S03 molded case generator circuit breaker provides dependable protection and control for generator-based electrical systems. Built on the robust LG frame, this breaker features an electronic interchangeable trip unit with an adjustable trip range of 500–2500, offering precise protection settings for varying load conditions. Rated for 600 amperes at 40°C with a 3-pole configuration, it is suitable for industrial and commercial generator applications. The S03 option includes a factory-installed 12–24 VAC or VDC shunt trip mounted on the left pole with wiring exiting the opposite side, enabling convenient remote tripping and flexible panel integration. Standard line and load terminals ensure secure, reliable connections.
Product Specification
- LG Frame Style Molded Case Generator Circuit Breaker
- Electronic Interchangeable Trip Unit
- Adjustable Trip Range: 500–2500
- Rated Current: 600A at 40°C
- 3 Pole Configuration
- S03 Configuration with Factory Installed Shunt Trip
- Line and Load End Terminals Standard
Technical Specification
- Electronic trip unit for precise overload and short-circuit protection
- Interchangeable trip unit design for flexible protection settings
- 12–24 VAC or VDC shunt trip enabling remote circuit interruption
- Shunt trip mounted on the left pole with wiring exiting opposite side
- Bolt-On connection for stable and secure installation
- Rugged molded case construction suitable for generator protection
Voltage and Ratings
- Rated Voltage: 600VAC @ 50/60Hz
- Interrupting Capacity:
-
- 18 kA @ 240VAC
- 14 kA @ 480VAC
- 10 kA @ 600VAC
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Warranty: One Year
- Frame Type: L
- Amperage Rating: 600A
- Poles: 3
- Maximum Voltage: 600V
- Connection Type: Bolt-On
- Trip Setting Range: 500–2500
- Configuration: S03 – 12–24 VAC/VDC Shunt Trip, Left Pole Mounted, Exiting Opposite Side
- Standard Lug Type: Line and Load
Important Note

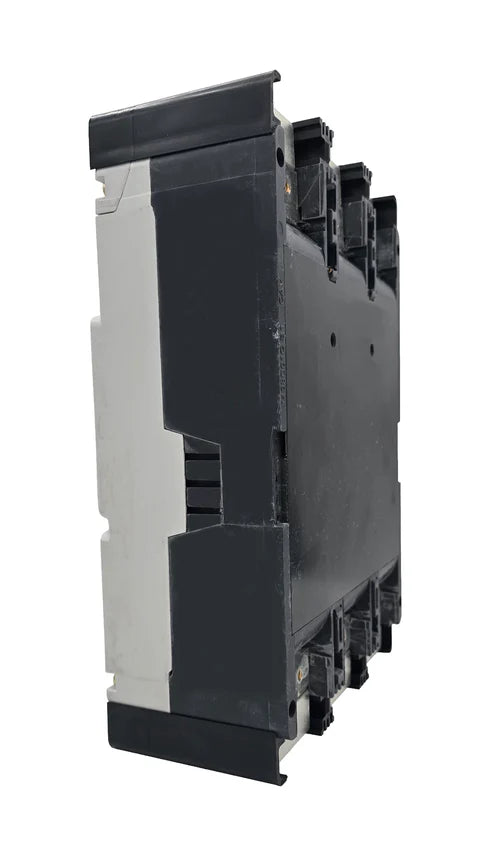

Product images represent a base model and are for identification purposes only. Accessories ordered with the breaker can be installed during order processing at no additional cost to meet your required configuration. Please provide any installation or configuration instructions in the order comments during checkout.
