The Eaton LG3600WS01 is a reliable molded case generator circuit breaker designed for precise protection of generator-fed electrical systems. Built on the robust LG frame, it features an electronic interchangeable trip unit with a 500–2500 adjustable trip range, ensuring accurate protection for varying load conditions. Rated for 600 amperes at 40°C with a 3-pole configuration, this model is ideal for industrial and commercial generator applications. Supplied without terminals, it allows for flexible field installation or custom terminal selection to match your system requirements.
Product Specification
- LG Frame Style Molded Case Generator Circuit Breaker
- Electronic Interchangeable Trip Unit
- Adjustable Trip Range: 500–2500
- Rated Current: 600A at 40°C
- 3 Pole Configuration
- Supplied Without Terminals
Technical Specification
- Electronic trip unit for accurate overload and short-circuit protection
- Interchangeable trip unit for adaptable protection settings
- Designed for generator applications requiring precise control
- Bolt-On connection for secure and stable mounting
- Durable molded case construction for long-lasting performance
Voltage and Ratings
- Rated Voltage: 600VAC @ 50/60Hz
- Interrupting Capacity:
-
- 18 kA @ 240VAC
- 14 kA @ 480VAC
- 10 kA @ 600VAC
Product Data
- Manufacturer: Eaton / Cutler-Hammer
- Warranty: One Year
- Frame Type: L
- Amperage Rating: 600A
- Poles: 3
- Maximum Voltage: 600V
- Connection Type: Bolt-On
- Trip Setting Range: 500–2500
- Standard Lug Type: Without Terminals
Important Note

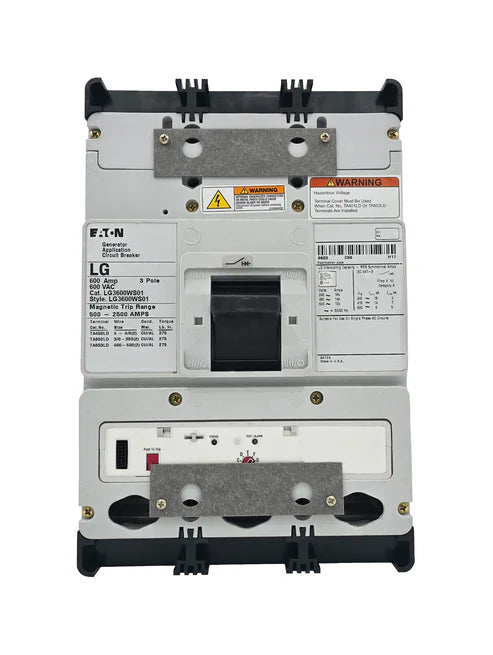

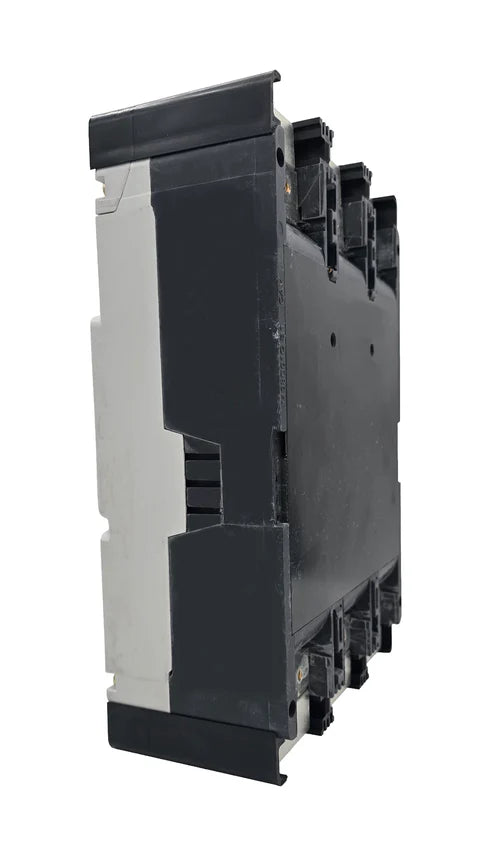

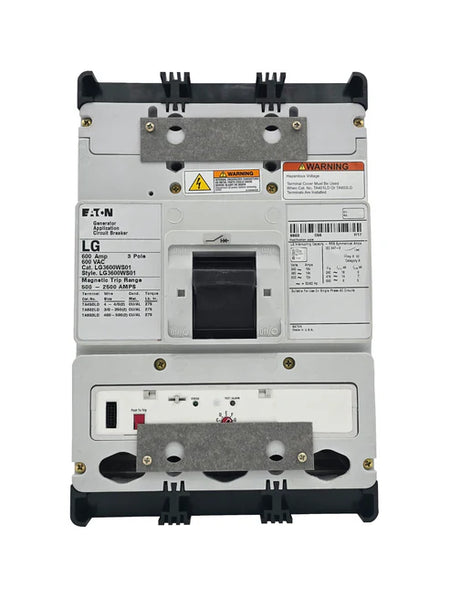

Product images represent a base model and are for identification purposes only. If accessories or terminals are ordered with the breaker, they can be installed during order processing at no additional cost. Please provide any installation or configuration instructions in the order comments during checkout to ensure the breaker meets your specific requirements.
