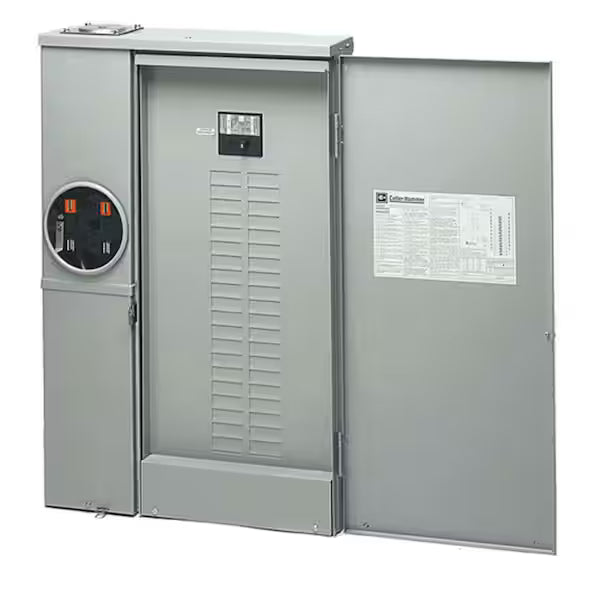

Eaton MBE4040PV200BTS 200A 40 Space 40 Circuit Solar-Ready Meter Breaker Load Center 22kAIC 120/240V NEMA 3R

Description

The Eaton MBE4040PV200BTS is a solar-ready meter breaker load center designed for residential and light commercial service entrance applications. This all-in-one combination service entrance device features a factory-installed 200 Amp main breaker, 40 spaces / 40 circuits, and a 225 Amp copper bus optimized for photovoltaic (PV) backfeed applications.

Built with a durable NEMA 3R rainproof enclosure, this meter breaker is suitable for both overhead and underground feed installations. The unit accepts Eaton Type BR branch breakers and is designed to simplify NEC-compliant solar installations for new construction and service upgrades.

Ideal for residential solar systems, utility meter applications, and outdoor service entrance equipment.

Key Features

• Catalog Number: MBE4040PV200BTS
• Amperage: 200 Amp
• Voltage: 120/240VAC
• Single Phase
• 40 Spaces / 40 Circuits
• Solar-Ready Design
• 225 Amp Copper Bus
• Factory Installed Main Breaker
• Accepts Eaton Type BR Breakers
• Surface Mount Installation
• Suitable for Overhead or Underground Feed
• Ring Style Meter Socket
• 4 Jaw Meter Configuration
• NEMA 3R Rainproof Enclosure
• Galvanized Steel Construction
• UL Listed
• EUSERC Approved

Interrupting Rating

• 22kAIC @ 120/240VAC

Technical Specifications

• Brand: Eaton
• Series: BR Solar Power Center
• Product Type: Meter Breaker Load Center
• Main Breaker Included: Yes
• Bus Material: Copper
• Bus Rating: 225 Amp
• Feed Type: Overhead / Underground
• Mounting Type: Surface Mount
• Enclosure Rating: NEMA 3R
• Enclosure Material: Galvanized Steel
• Number of Meter Sockets: 1
• Number of Jaws: 4
• Maximum PV Input: 70A
• Dimensions: 34.17"H x 22.25"W x 5.31"D
• Approximate Weight: 45 lbs
• Frequency: 50/60 Hz
• Application: Residential Solar Service Entrance Equipment

Product Data

• Manufacturer: Eaton
• Catalog Number: MBE4040PV200BTS
• UPC: 786685690261
• GTIN: 00786685690261
• Country of Manufacture: USA
• Condition: New
• Application: Solar-Ready Meter/Main Combination Load Center
