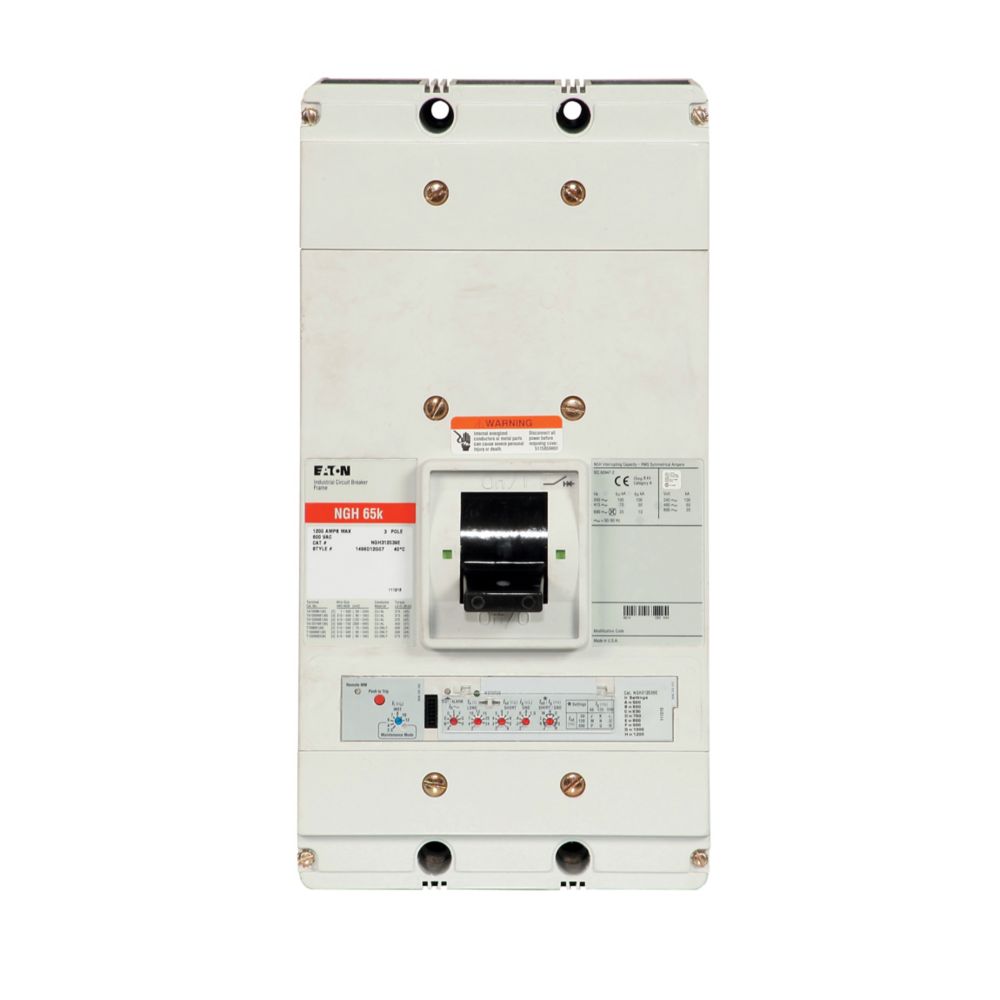

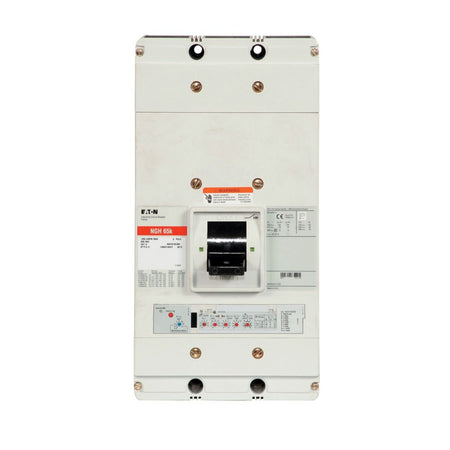

Eaton NGS312033EC Series G Electronic Molded Case Circuit Breaker – 1200A, 3-Pole, 480 Vac, 85 kAIC

The Eaton NGS312033EC Series G electronic molded case circuit breaker is engineered for high-capacity protection in demanding commercial and industrial power distribution systems. Featuring an electronic trip unit, it provides precise overload and short-circuit protection with reliable performance in critical electrical applications. Built on the NG-frame Series G platform, this breaker is 100% rated, HACR rated, and suitable for reverse feed use in compatible systems.

Electrical Ratings

• Current Rating: 1200A
• Voltage Rating: 480 Vac
• Frequency Rating: 50/60 Hz
• Number of Poles: Three-pole
• Interrupt Rating: 85 kAIC at 240 Vac / 50 kAIC at 480 Vac
• Trip Type: T167
• Circuit Breaker Type: NG
• Frame: NG
• Rating: 100% rated

Key Specifications

• Manufacturer: Eaton
• Catalog Number: NGS312033EC
• UPC: 786685574271
• Product Type: Electronic molded case circuit breaker
• Series: Series G
• Terminals: Line and load
• Mounting Hardware: Imperial
• Standards: UL Listed, CSA Certified
• Compliances: HACR Rated
• Catalog Notes: All Eaton NG-Frame circuit breakers are suitable for reverse feed use. Breakers do not ship with lugs.
• Warranty: Eaton Selling Policy 25-000

Physical Details

• Product Length/Depth: 6 in
• Product Height: 9 in
• Product Width: 9 in
• Product Weight: 48 lb

Product Data

• Application: Commercial and industrial electrical distribution systems
• Installation Use: High-capacity Series G breaker assemblies and power distribution equipment
• Function: Provides advanced electronic overload and short-circuit protection for electrical circuits
• System Compatibility: Designed for Eaton NG-frame Series G distribution systems
• Safety Feature: High interrupting capacity and electronic trip protection ensure reliable fault clearing in critical installations
