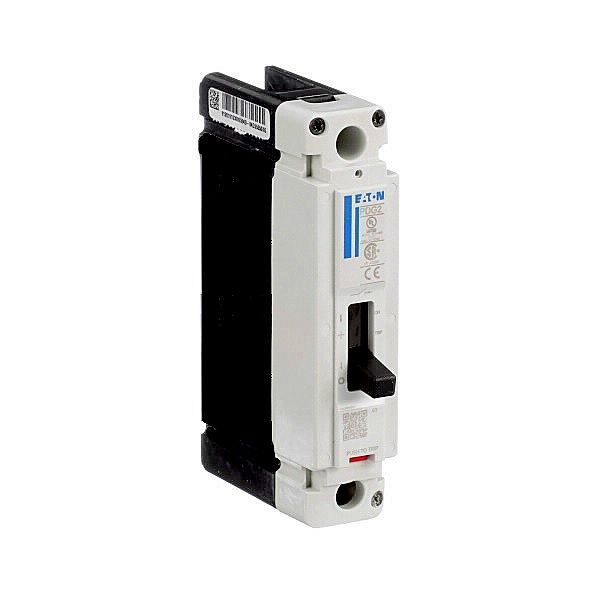

Eaton PDG21G0030TFFL – 1‑Pole 30 A 600 V AC Molded Case Breaker, Thermal‑Magnetic, 35 kAIC @ 480 V

Product Title
Eaton PDG21G0030TFFL – 1‑Pole 30 A 600 V AC Molded Case Breaker, Thermal‑Magnetic, 35 kAIC @ 480 V

Product Description
The Eaton PDG21G0030TFFL is a single‑pole, 30 Amp, 600 V AC molded case circuit breaker from the Power Defense (PDG) series, engineered for dependable overcurrent protection in industrial and commercial electrical distribution systems. This breaker features a thermal‑magnetic trip unit with Long‑Time (LI) and Instantaneous protection for reliable performance under overload and short‑circuit conditions.

It delivers a high interrupting capacity rating of 35 kAIC @ 480 V AC, providing robust protection suitable for power panels, motor control centers, and distribution equipment. The PDG21G0030TFFL is built to meet rigorous safety and performance standards required in demanding environments.

Key Features

• Poles: 1

• Amperage: 30 A

• Voltage: 600 V AC

• Type: Molded Case Breaker (Power Defense PDG)

• Thermal‑magnetic trip with Long‑Time (LI) and Instantaneous functions

• High interrupting capacity: 35 kAIC @ 480 V AC

• Bolt‑on / feed‑thru connection compatible

• UL, CSA, IEC, and CCC certified for commercial and industrial protection

Technical Specifications

• Manufacturer: Eaton / Cutler‑Hammer

• Catalog Number: PDG21G0030TFFL

• Frame/Series: Power Defense (PDG)

• Phase: Single‑phase

• Trip Type: Thermal‑Magnetic, LI & Instantaneous

• Mounting Type: Bolt‑on / Feed‑Thru

• Frequency Rating: 50/60 Hz

• Terminal Connection: Standard load side lug

• Protection: Overload & short‑circuit

Product Data

• UPC / GTIN: 786687041665 / 00786687041665

• Provides reliable overload and short‑circuit protection in industrial and commercial electrical panels

• Compatible with Eaton Power Defense panelboards, switchboards, and distribution equipment

• Built to meet UL 489, CSA C22.2, IEC 60947‑2, and CCC safety standards
