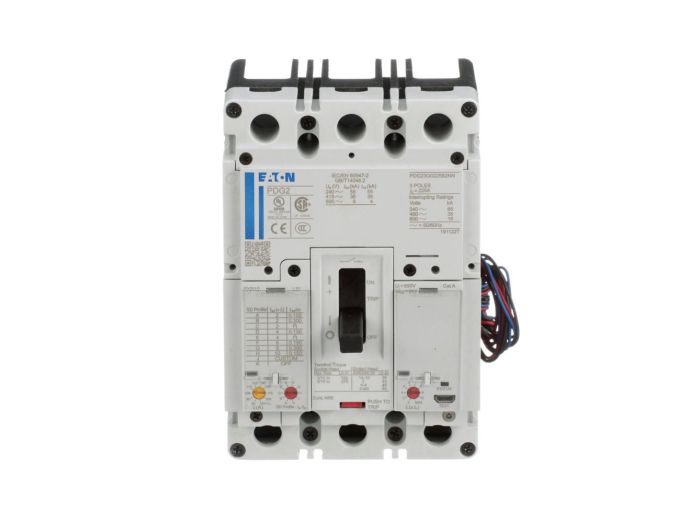

Eaton PDG23G0150B2NL 150A 3 Pole 600V Power Defense Molded Case Circuit Breaker

Description
The Eaton PDG23G0150B2NL is a 150A, 3 Pole, 600V Power Defense molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This unit features a PXR10 LSI electronic trip unit, providing long-time, short-time, and instantaneous protection for enhanced system coordination.

Built on Eaton’s globally rated Frame 2 platform, this breaker delivers dependable performance with high interrupting capacity and is ideal for panelboards, switchgear, and distribution systems.

Interrupting Ratings

• 35kA @ 480V
• 18kA @ 600V

Key Specifications

• Catalog Number: PDG23G0150B2NL
• Amperage: 150A
• Poles: 3 Pole
• Voltage Rating: 600V
• Series: Power Defense
• Frame Size: Frame 2
• Trip Unit: PXR10 LSI
• Mounting Type: Standard Bolt-On
• Terminals: Load Side Included
• Frequency: 50/60 Hz

Product Data

• Brand: Eaton
• MPN: PDG23G0150B2NL
• GTIN: 786679778913
• Condition: New / Surplus
• Weight: 4.85 lbs
