Eaton Cutler-Hammer

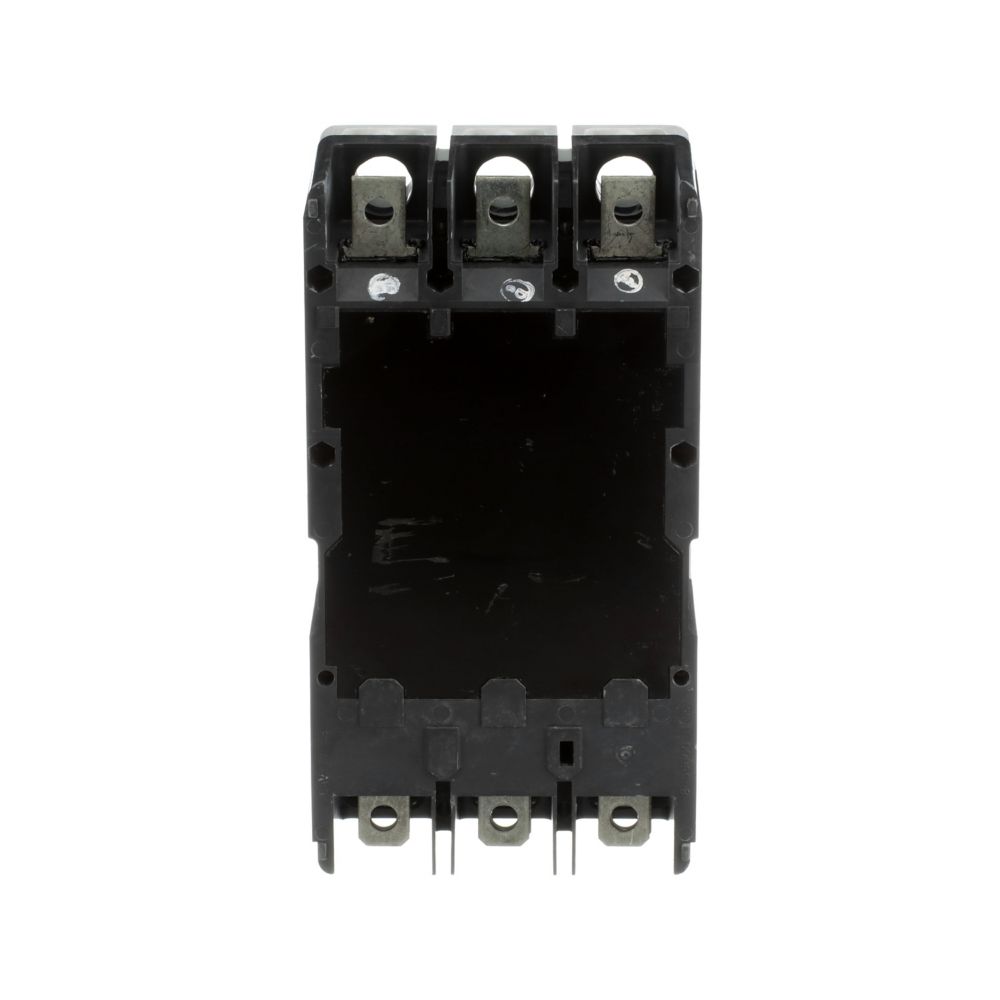

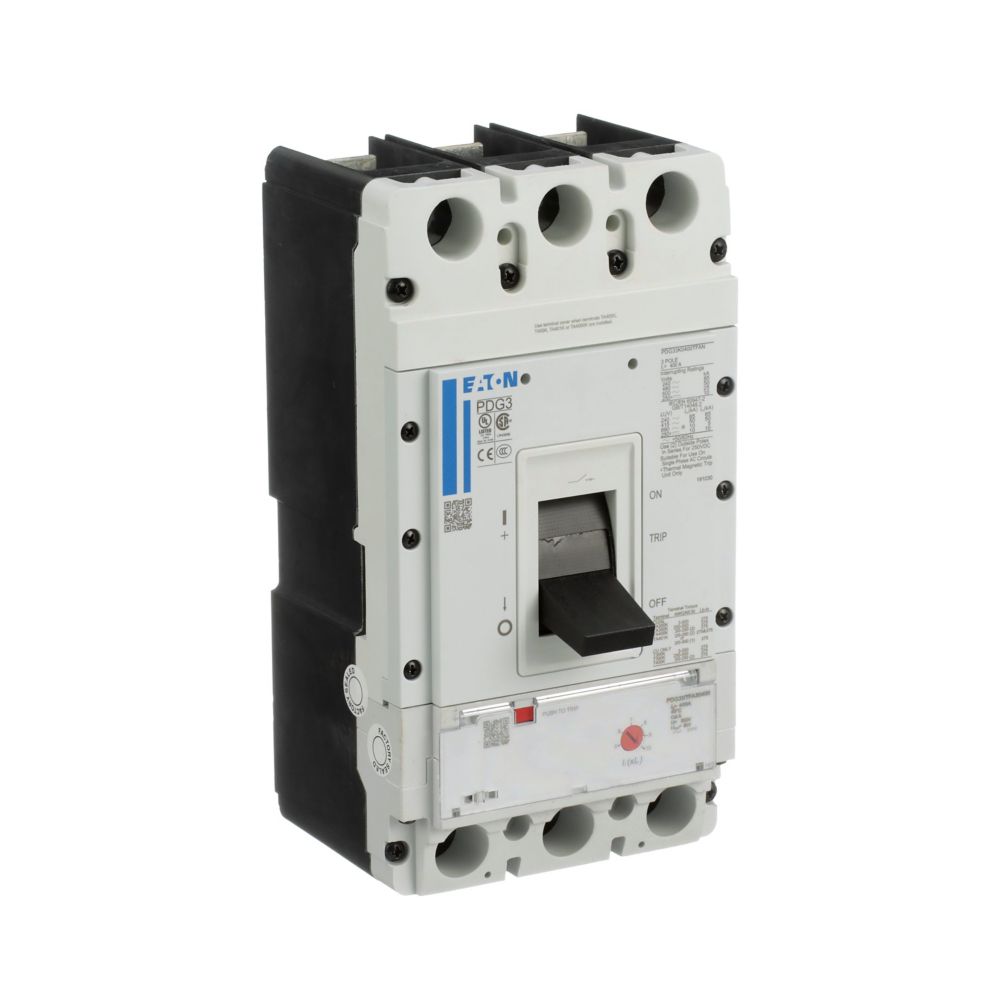

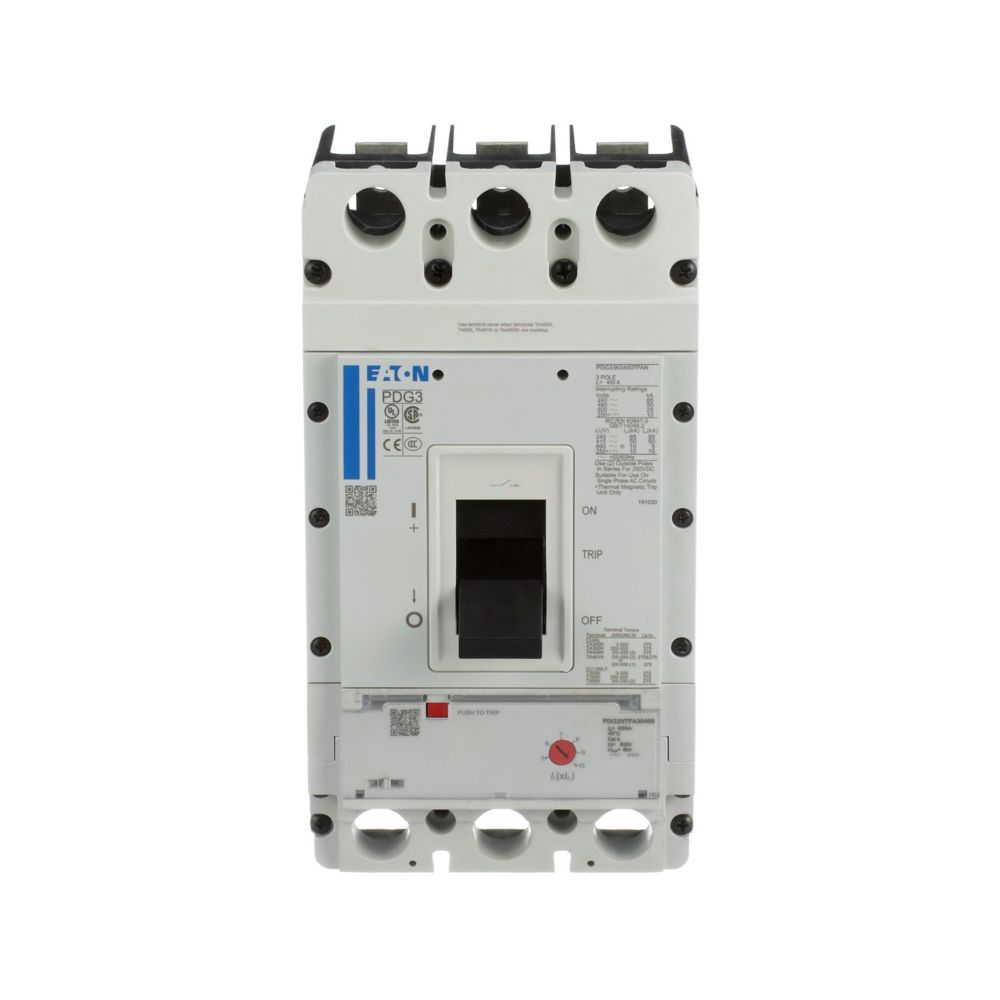

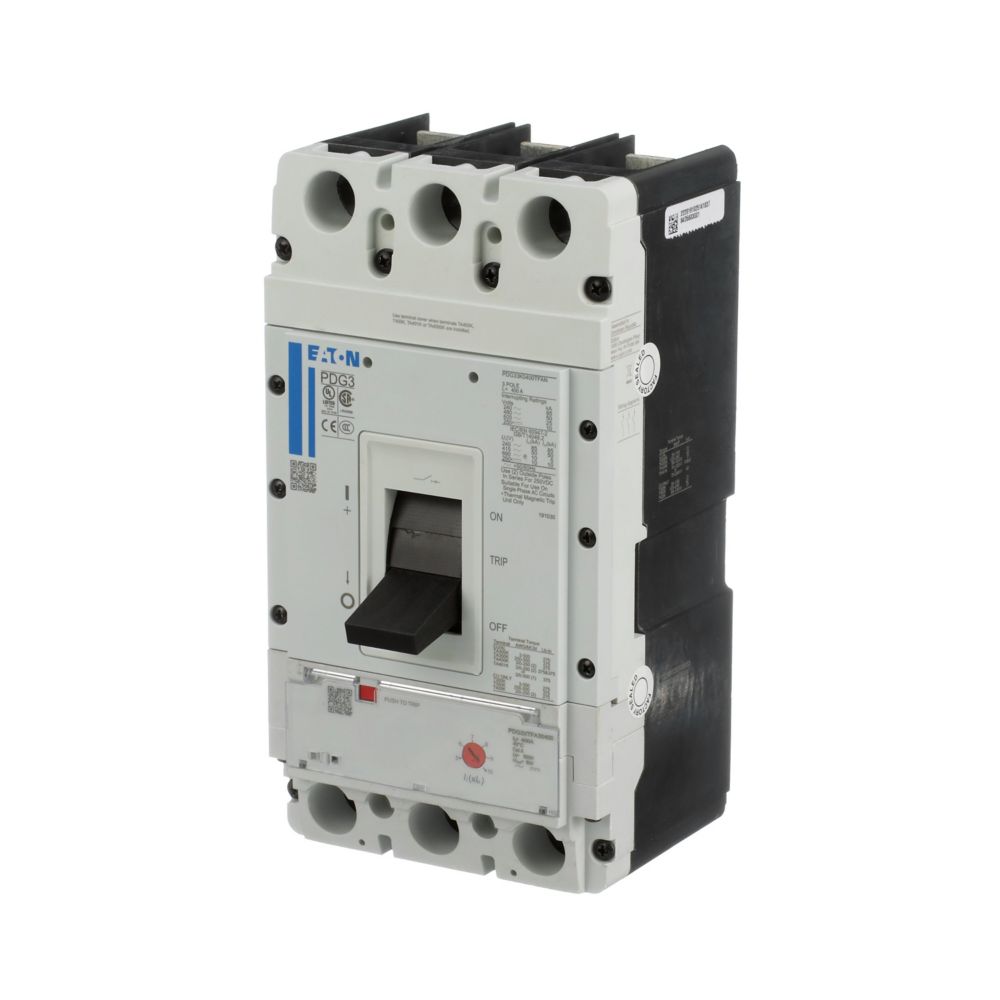

Eaton PDG33M0500TFAJ Power Defense Molded Case Circuit Breaker – 500A, 3-Pole, 600V, PD3 Global, 65 kAIC

In stock
SKU: PDG33M0500TFAJ GTIN/UPC: 786679503287
$3,895.09
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton PDG33M0500TFAJ Power Defense molded case circuit breaker is designed to provide reliable protection for industrial and commercial three-phase electrical distribution systems. Built on the PD3 Global platform, it delivers dependable thermal-magnetic protection against overloads and short circuits while maintaining high interrupting capability for demanding power applications. Its three-pole, high-capacity design supports efficient installation in large panelboards, switchboards, and electrical distribution assemblies.

Electrical Ratings

  • Current Rating: 500A
  • Voltage Rating: 600 Vac
  • Number of Poles: Three-pole
  • Frame Size: 3 Frame
  • Circuit Breaker Type: PD3 Global
  • Trip Type: T297
  • Class: Class A
  • Interrupt Rating: 65 kAIC at 480 Vac
  • UL Interrupt Ratings: 100 kAIC at 240 Vac / 65 kAIC at 480 Vac / 22 kAIC at 250 Vdc

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: PDG33M0500TFAJ
  • UPC: 786679503287
  • Product Type: Molded case circuit breaker
  • Frame Type: Complete breaker
  • Terminals: Standard line and load
  • Standards: UL 489, IEC 60947-2, CSA, CCC Marked
  • Compliance: RoHS Compliant
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation or eighteen (18) months from shipment, whichever occurs first

Physical Details

  • Product Length/Depth: 4.295276 in
  • Product Height: 7.2 in
  • Product Width: 5.468504 in
  • Product Weight: 12.36 lb

Product Data

  • Application: Industrial and commercial three-phase power distribution systems
  • Installation Use: Panelboards, switchboards, and electrical assemblies
  • Function: Provides overload and short-circuit protection
  • System Compatibility: Eaton Power Defense (PD3 Global) platform
  • Safety Feature: High interrupting capability improves system reliability and protection
  • Type Circuit Breakers
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
