Eaton Cutler-Hammer

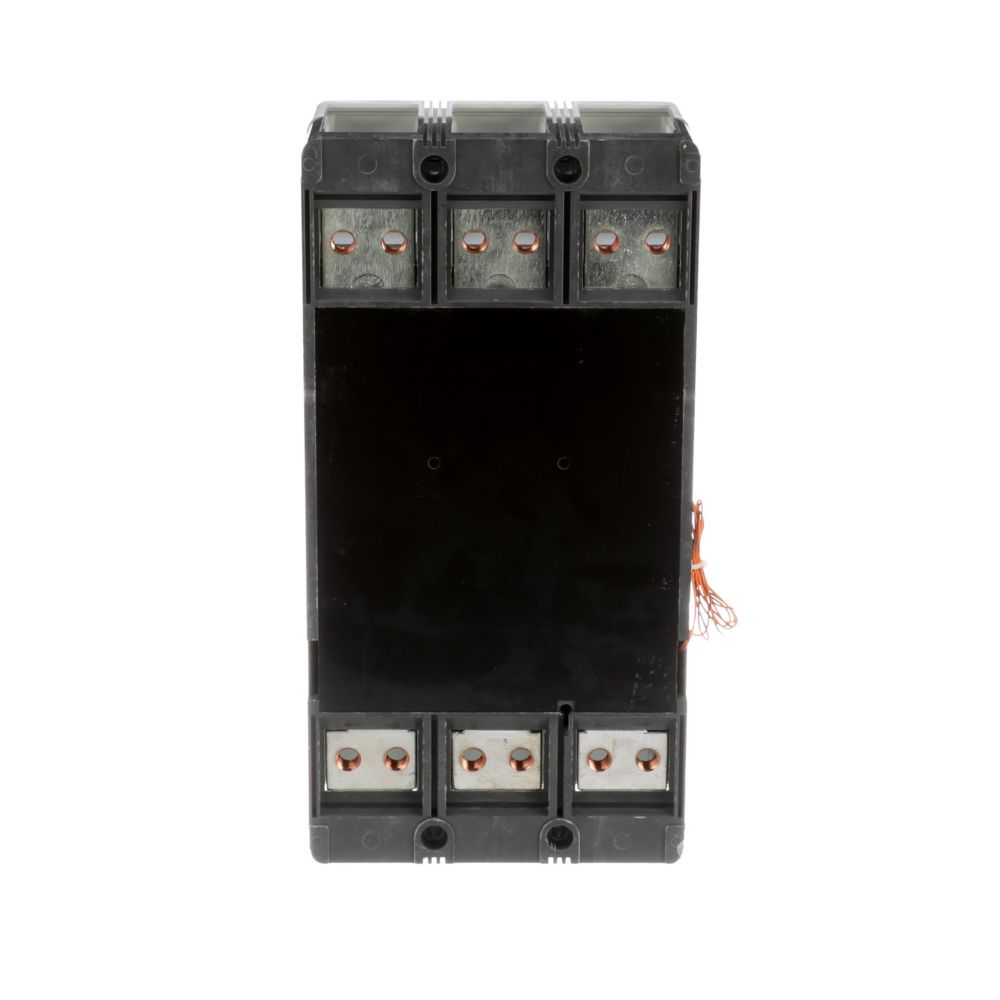

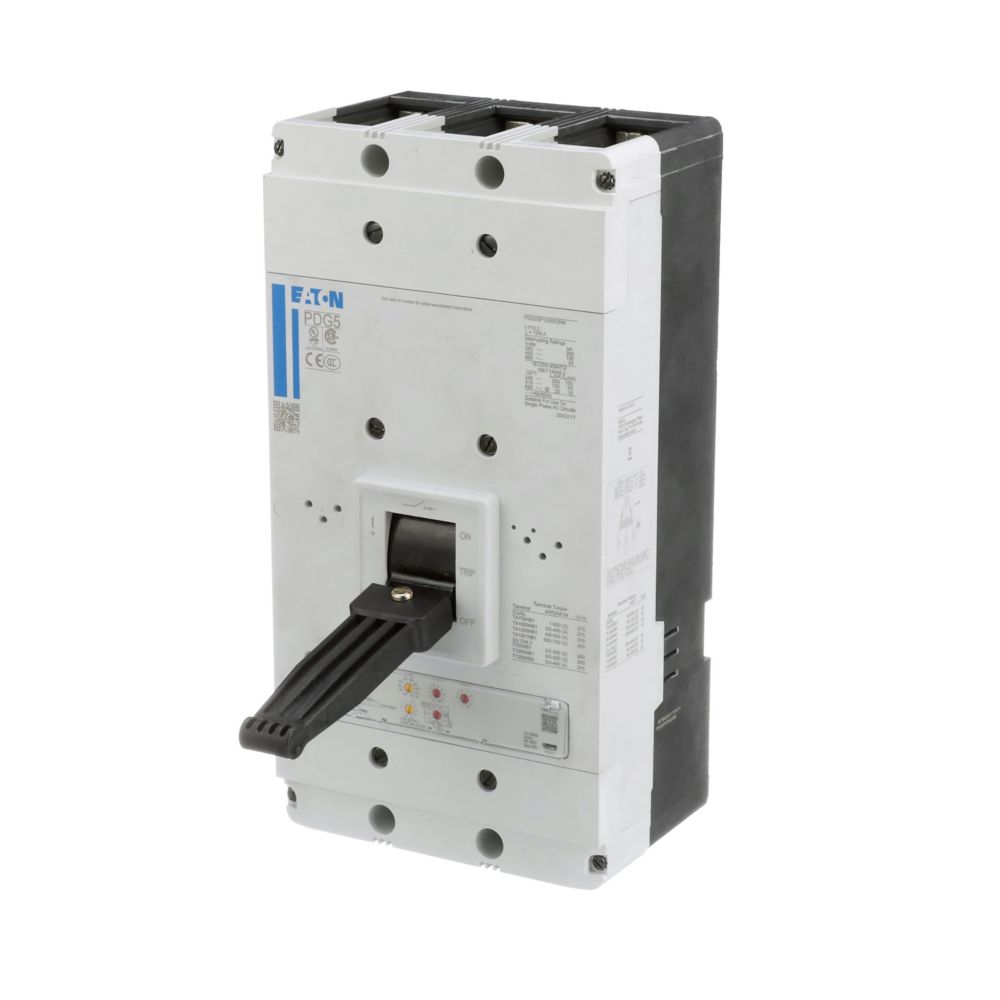

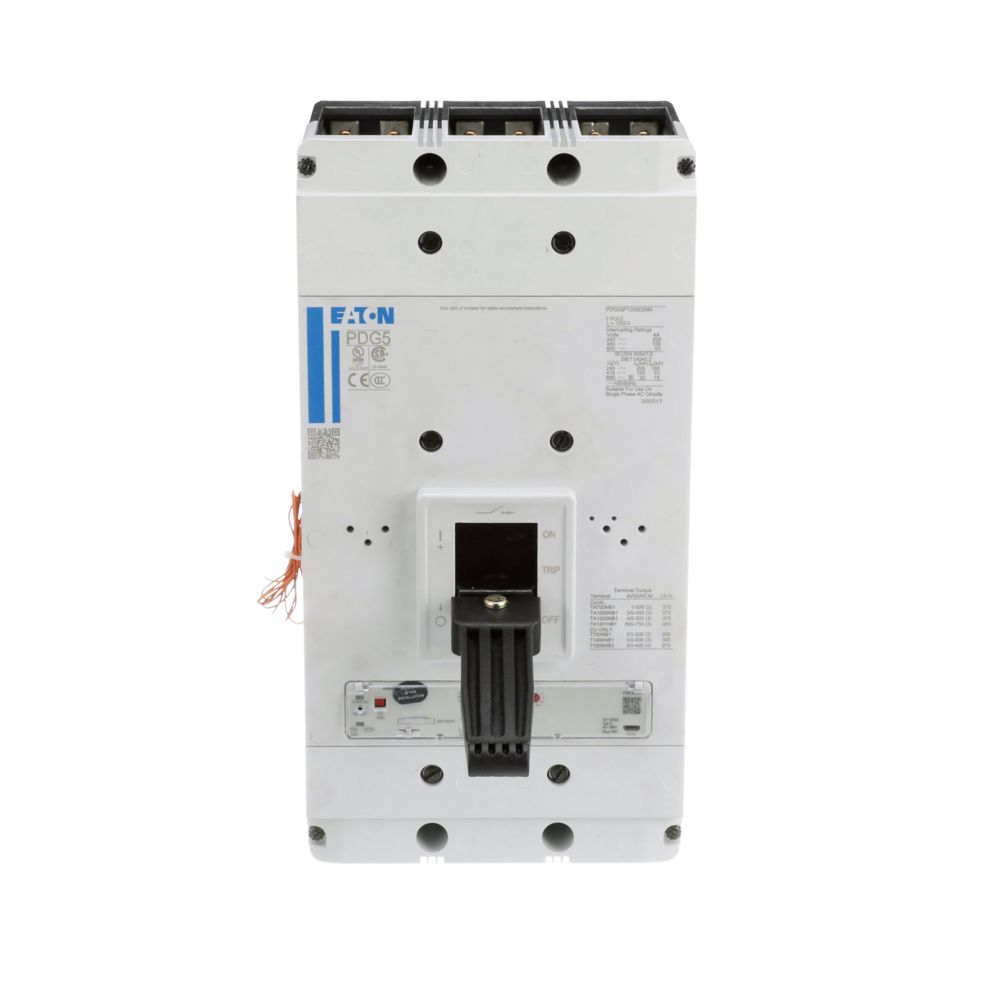

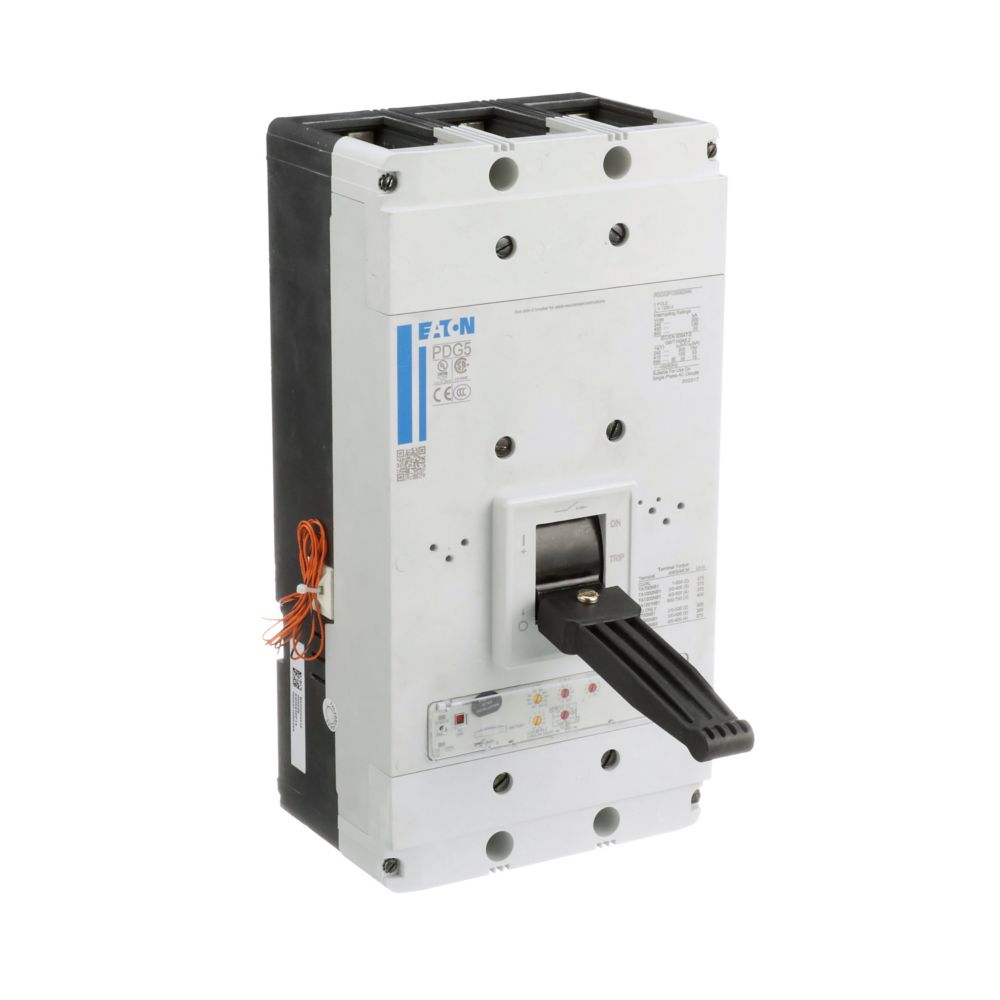

Eaton PDG53K1200E2MN Power Defense Molded Case Circuit Breaker – 1200A, 3-Pole, 600V, PD5 Global, 50 kAIC

In stock
SKU: PDG53K1200E2MN GTIN/UPC: 786679213360
$9,775.19
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton PDG53K1200E2MN Power Defense molded case circuit breaker is designed for high-capacity industrial and commercial power distribution systems requiring advanced protection and monitoring. Built on the PD5 Global platform, it provides dependable thermal-magnetic protection against overloads and short circuits while delivering strong interrupting performance for heavy-duty electrical networks. Its large-frame, three-pole construction is suitable for main distribution panels, switchboards, and critical power infrastructure applications. Integrated Modbus RTU communication enables enhanced monitoring and system integration in modern electrical networks.

Electrical Ratings

  • Current Rating: 1200A
  • Trip Rating: 1200A
  • Voltage Rating: 600 Vac
  • Number of Poles: Three-pole
  • Frame Size: 5 Frame
  • Circuit Breaker Type: PD5 Global
  • Trip Type: T283
  • Class: Class A
  • Interrupt Rating: 50 kAIC at 480 Vac

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: PDG53K1200E2MN
  • UPC: 786679213360
  • Product Type: Molded case circuit breaker
  • Frame Type: Complete breaker
  • Terminals: No terminals
  • Communication: Modbus RTU
  • Standards: UL 489, IEC 60947-2, CSA, CCC Marked
  • Compliance: RoHS Compliant
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation or eighteen (18) months from shipment, whichever occurs first

Physical Details

  • Product Length/Depth: 139.7 mm
  • Product Height: 406.4 mm
  • Product Width: 209.5 mm
  • Product Weight: 21.32 kg

Product Data

  • Application: High-capacity industrial and commercial power distribution systems
  • Installation Use: Main distribution boards, switchboards, and critical infrastructure systems
  • Function: Provides overload and short-circuit protection with monitoring capability
  • System Compatibility: Eaton Power Defense (PD5 Global) platform
  • Safety Feature: High interrupting capacity and communication support improve system reliability and monitoring capability
  • Type Circuit Breakers
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
