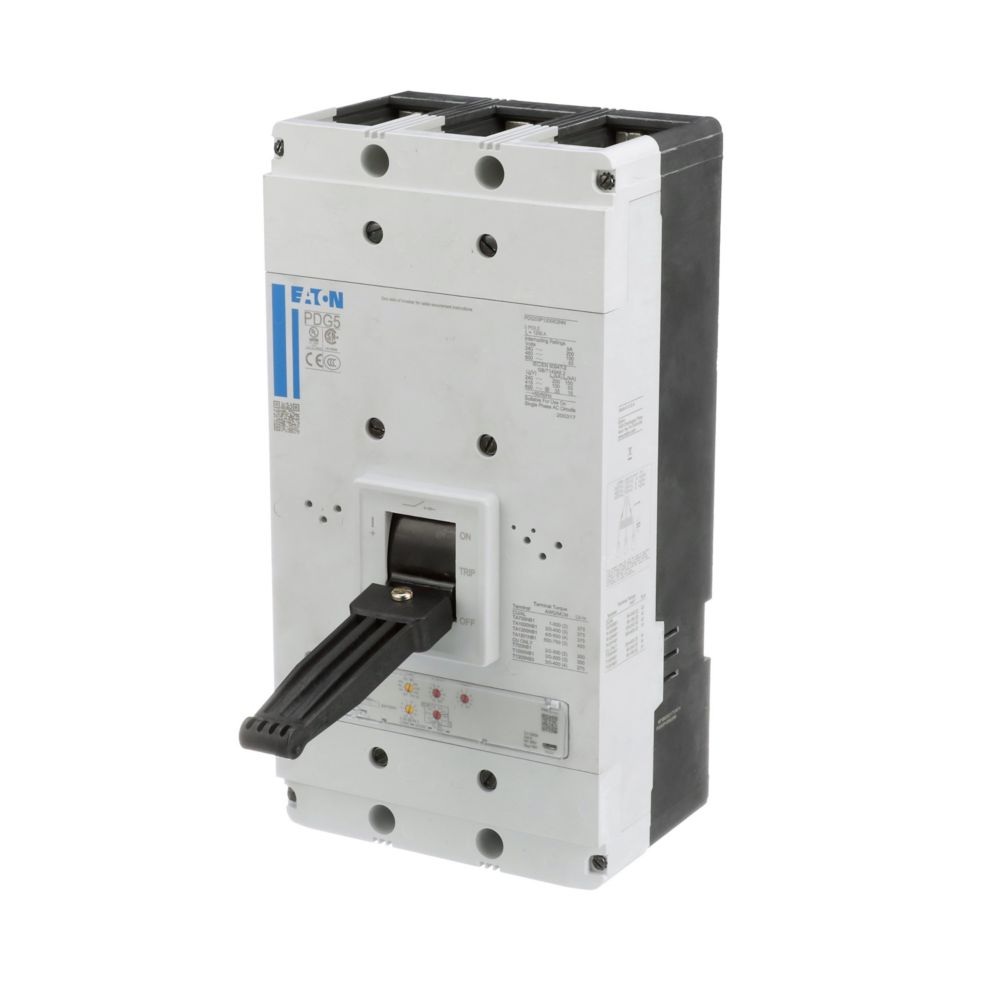

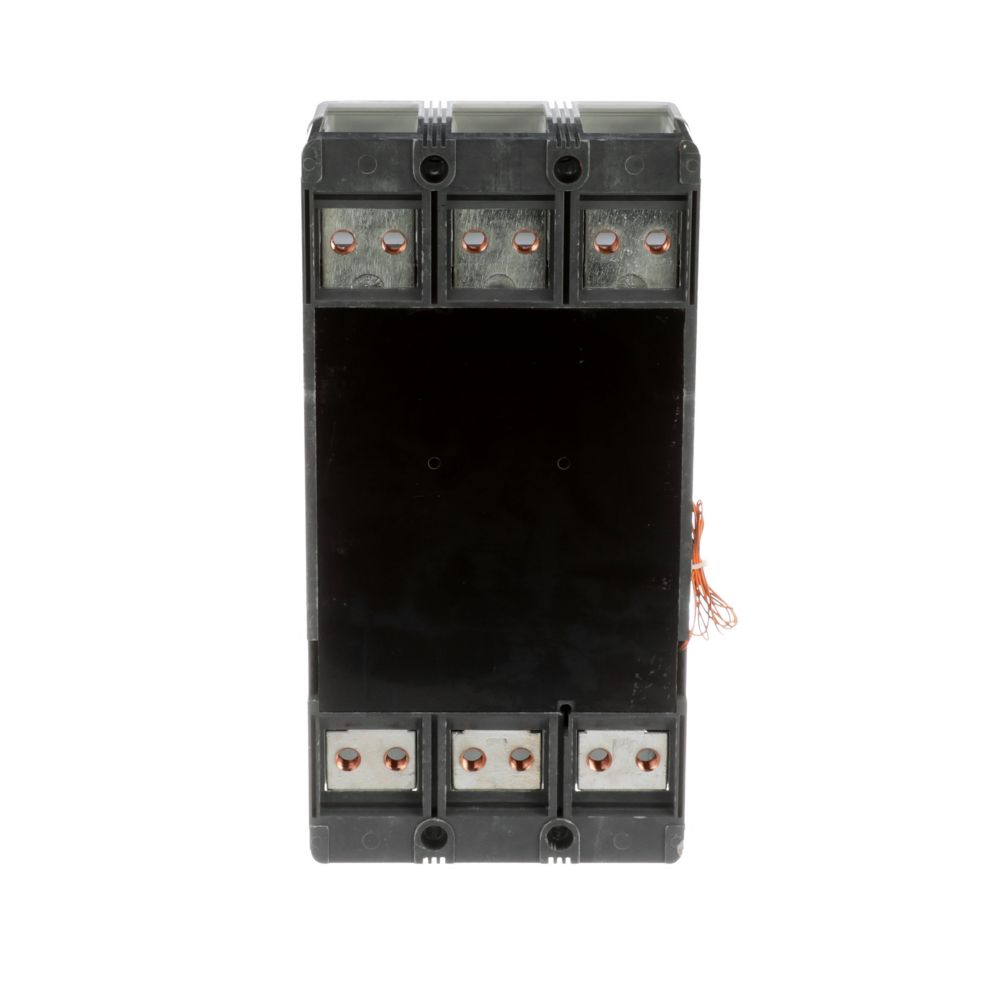

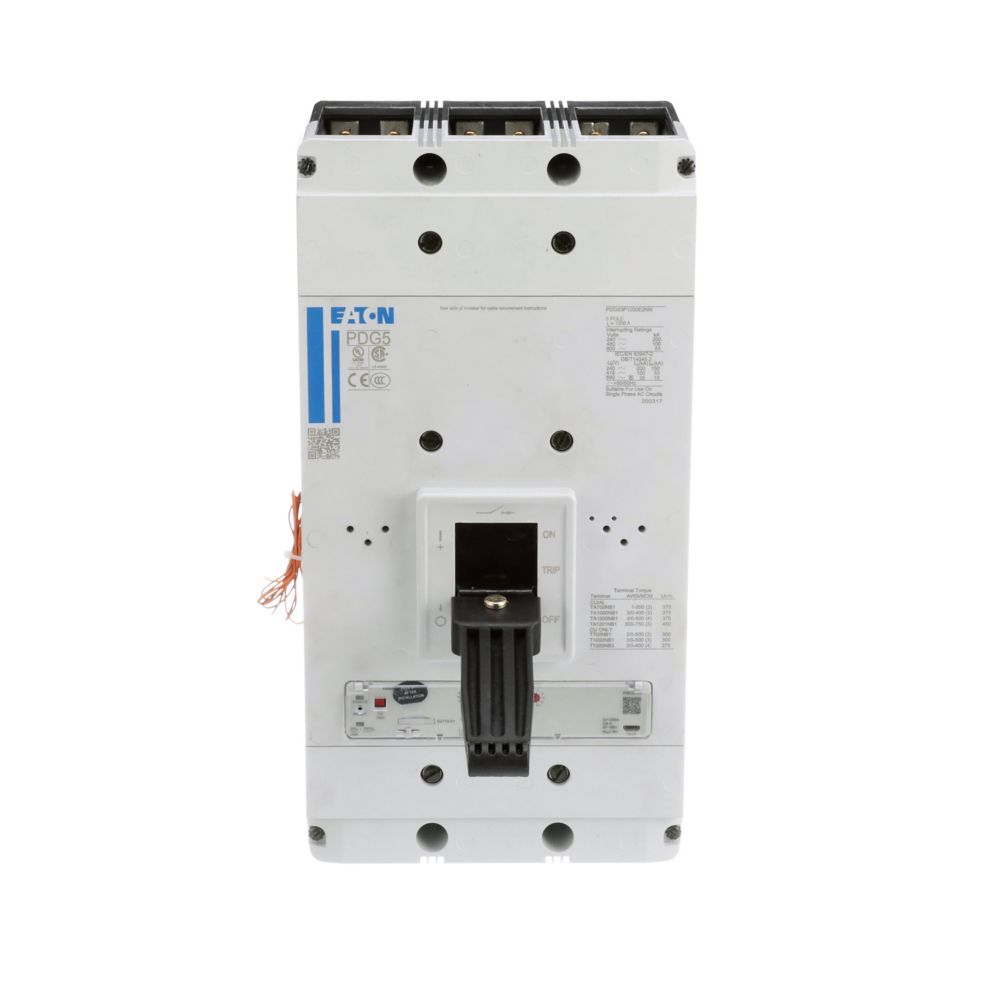

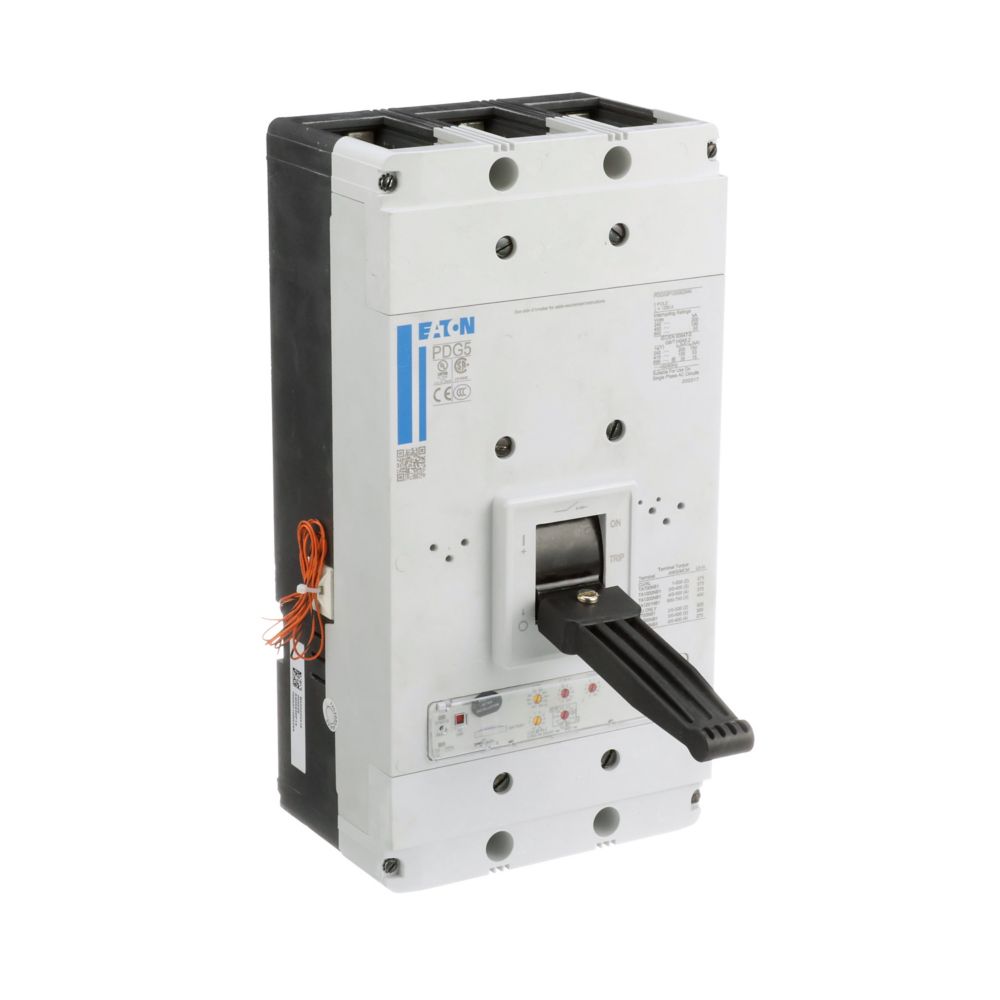

Eaton PDG53M0800E2MN Power Defense Molded Case Circuit Breaker – 800A, 3-Pole, 600V, PD5 Global, 65 kAIC

The Eaton PDG53M0800E2MN Power Defense molded case circuit breaker is designed for high-capacity industrial and commercial power distribution systems requiring advanced protection and monitoring capabilities. Built on the PD5 Global platform, it provides reliable thermal-magnetic protection against overloads and short circuits while delivering strong interrupting performance for demanding electrical environments. Its robust three-pole construction makes it suitable for main distribution panels, switchboards, and critical infrastructure applications. Integrated Modbus RTU communication supports enhanced system monitoring and control.

Electrical Ratings

• Current Rating: 800A
• Trip Rating: 800A
• Voltage Rating: 600 Vac
• Number of Poles: Three-pole
• Frame Size: 5 Frame
• Circuit Breaker Type: PD5 Global
• Trip Type: T283
• Class: Class A
• Interrupt Rating: 65 kAIC at 480 Vac
• UL Interrupt Ratings: 100 kAIC at 240 Vac / 65 kAIC at 480/277 Vac / 35 kAIC at 600/347 Vac

Key Specifications

• Manufacturer: Eaton
• Catalog Number: PDG53M0800E2MN
• UPC: 786679288276
• Product Type: Molded case circuit breaker
• Frame Type: Complete breaker
• Terminals: No terminals
• Communication: Modbus RTU
• Standards: UL 489, IEC 60947-2, CSA, CCC Marked
• Compliance: RoHS Compliant
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation or eighteen (18) months from shipment, whichever occurs first

Physical Details

• Product Length/Depth: 139.7 mm
• Product Height: 406.4 mm
• Product Width: 209.5 mm
• Product Weight: 21.32 kg

Product Data

• Application: Industrial and commercial high-capacity power distribution systems
• Installation Use: Main distribution boards, switchboards, and critical infrastructure systems
• Function: Provides overload and short-circuit protection with monitoring capability
• System Compatibility: Eaton Power Defense (PD5 Global) platform
• Safety Feature: High interrupting capacity and communication capability improve system reliability and monitoring
