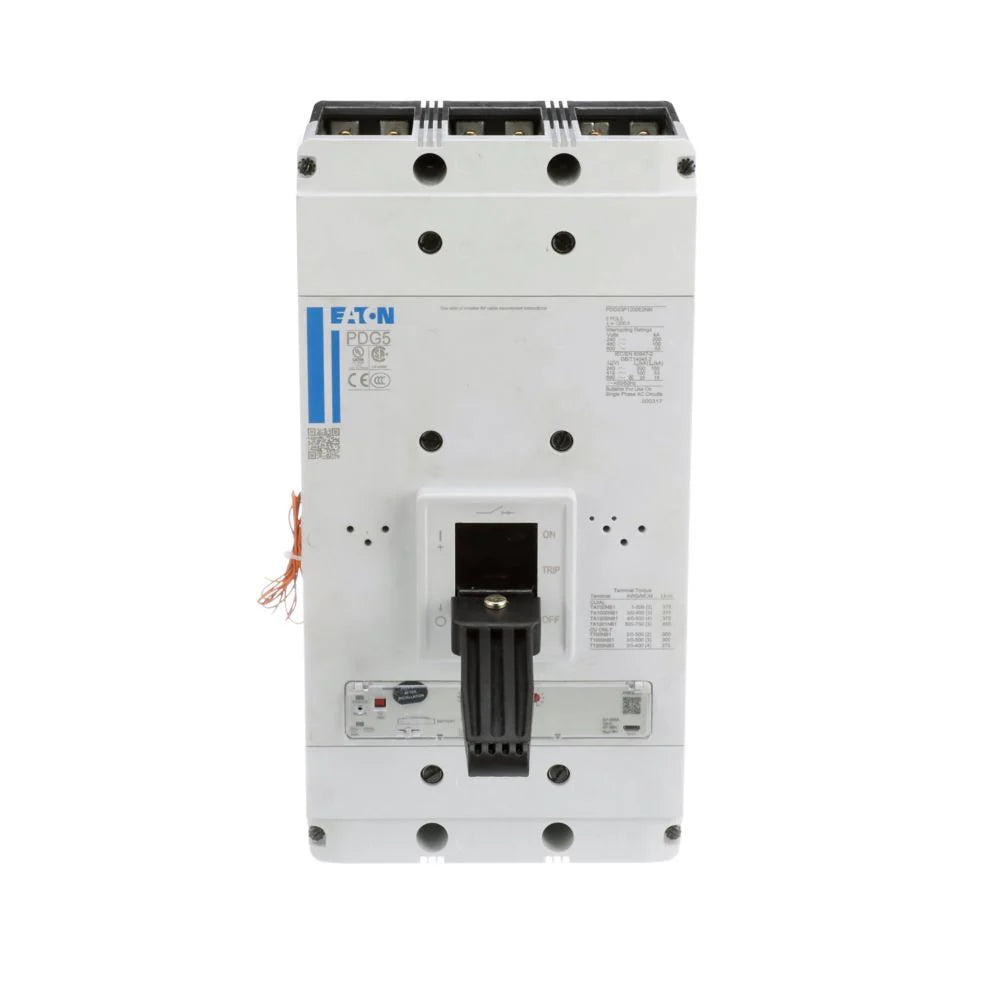

Eaton PDG53M1200E4RN 1200A 3-Pole 600V Power Defense Molded Case Circuit Breaker Electronic Trip 65kA@480V

Product Description

The Eaton PDG53M1200E4RN is a 1200 Amp, 3-Pole Power Defense molded case circuit breaker designed for commercial, industrial, OEM, and mission-critical power distribution systems. Featuring a PXR20 ARMS electronic trip unit, this breaker provides advanced LSI (Long-Time, Short-Time, Instantaneous) protection and high interrupting capacity for superior system protection and coordination.

Key Features

• Catalog Number: PDG53M1200E4RN
• Manufacturer: Eaton
• Amperage: 1200 Amp
• Poles: 3-Pole
• Voltage Rating: 600VAC
• Power Defense Series
• PXR20 ARMS Electronic Trip Unit
• LSI Protection Functions
• Adjustable Long-Time Protection
• Adjustable Short-Time Protection
• Adjustable Instantaneous Protection
• Unit Mount Design
• UL 489 Listed
• CSA Certified

Interrupting Ratings (KAIC)

• 100kA @ 240VAC
• 65kA @ 480VAC
• 35kA @ 600VAC

Technical Specifications

• Manufacturer: Eaton
• Catalog Number: PDG53M1200E4RN
• Series: Power Defense PDG5
• Frame Size: PDG5
• Type: Molded Case Circuit Breaker
• Amperage: 1200A
• Poles: 3
• Voltage: 600VAC
• Frequency: 50/60 Hz
• Trip Unit: PXR20 ARMS Electronic Trip
• Protection Functions:
  • Long-Time (L)
  • Short-Time (S)
  • Instantaneous (I)
• Mounting Style: Unit Mount
• Terminal Configuration: No Terminals Included
• Standards:
  • UL 489 Listed
  • CSA Certified
  • IEC Rated

Product Data

• Brand: Eaton
• Manufacturer: Eaton Corporation
• Model: PDG53M1200E4RN
• Series: Power Defense
• Frame: PDG5
• Type: Electronic Trip Molded Case Circuit Breaker
• Protection: LSI (Long-Time, Short-Time, Instantaneous)
• Trip Unit: PXR20 ARMS
• Mounting: Unit Mount
• Terminals: No Terminals Included
• Condition: New / Reconditioned
• Phase: 3 Phase
• Rated Current: 1200A
• Rated Voltage: 600VAC
• UPC: 786679259078
• GTIN: 00786679259078
• Country of Manufacture: Varies by Production Run

Compatible Equipment

• Eaton Power Defense Switchboards
• Eaton Power Defense Panelboards
• Eaton Distribution Equipment Utilizing PDG5 Frame Breakers
• OEM Power Distribution Assemblies Designed for PDG5 Frame Breakers

Applications

• Commercial Buildings
• Industrial Facilities
• Data Centers
• Manufacturing Plants
• Critical Power Systems
• OEM Power Distribution Equipment

Replacement Information

• Eaton Power Defense PDG5 Series Circuit Breaker
• Match replacement by catalog number and trip unit configuration
• PXR20 ARMS Electronic Trip Unit Configuration Included
