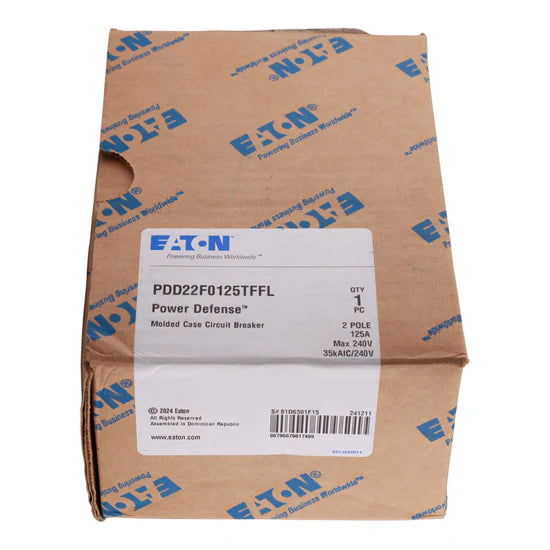

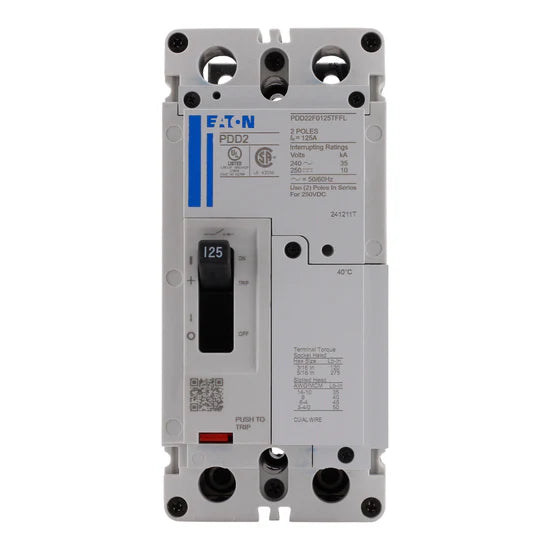

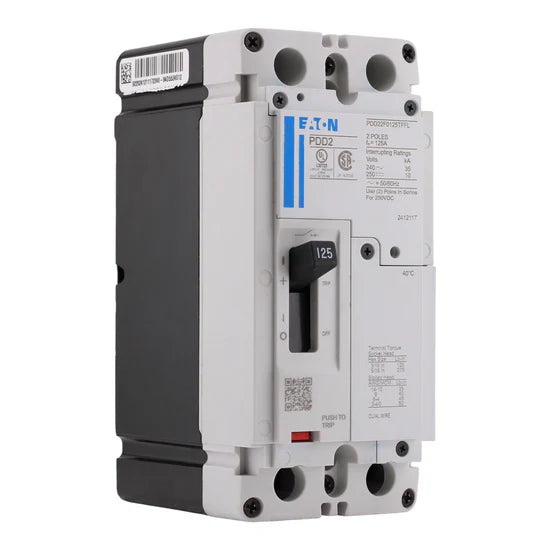

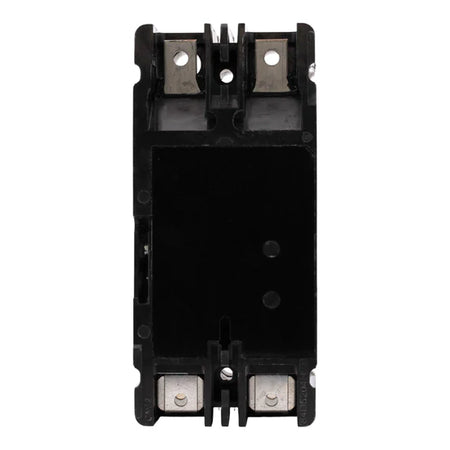

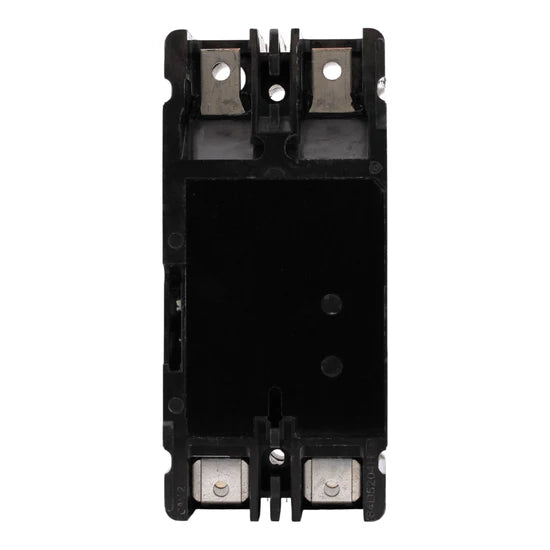

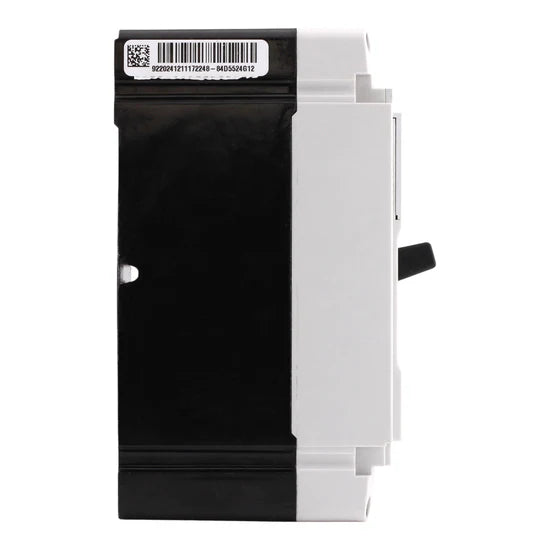

Eaton Power Defense PDD22F0125TFFL 125A 2P Molded Case Circuit Breaker – Bolt-On – 240V

The Eaton Power Defense PDD22F0125TFFL is a 2-pole, 125A molded case circuit breaker designed for commercial and industrial applications. Rated for 240V AC with a 35kA interrupt capacity, this Frame 2 breaker features a fixed thermal-magnetic trip unit and standard load-side terminals, providing robust and reliable overcurrent and short-circuit protection for panelboards and switchboards.

Electrical Ratings:

• Amperage: 125 Amps
• Poles: 2-Pole
• Voltage: 240 Volts AC
• Interrupt Rating: 35 kAIC at 240V

Key Specifications:

• Breaker Type: Molded Case, Thermal-Magnetic (Fixed-Fixed)
• Circuit Breaker Frame: Frame 2
• Mounting Mode: Bolt-On / Panel Mount

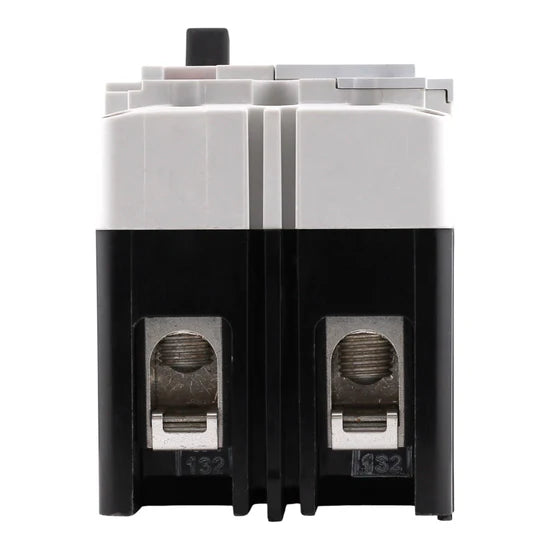

• Connections Terminals: Standard Terminals Load Only
• Wire Size: Not specified
• Tightening Torque: Not specified

Dimensions & Weight:

• Height: 6.0 in
• Width: 2.75 in
• Depth: 3.5 in
• Weight: 4.5 lbs

Certifications:

• UL 489 Listed
• CSA Certified
• RoHS Compliant

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Power Defense (Frame 2, globally rated, UL/CSA)
• Model Number: PDD22F0125TFFL
• UPC: 786679817469
