Eaton

Eaton Power Defense PDG23G0020TFFL 20A 3P Molded Case Circuit Breaker – Plug-In – 600V

In stock
SKU: PDG23G0020TFFL GTIN/UPC: 786679906439
$206.25

Select product select item condition:

SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

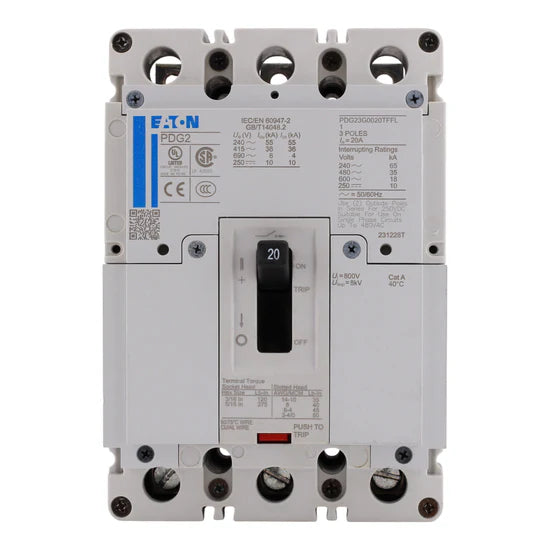

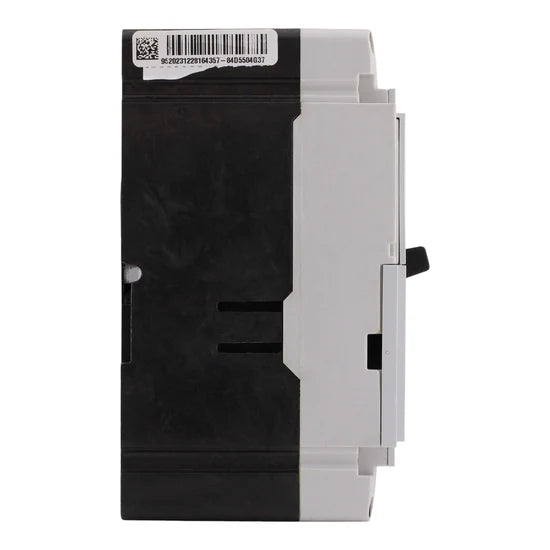

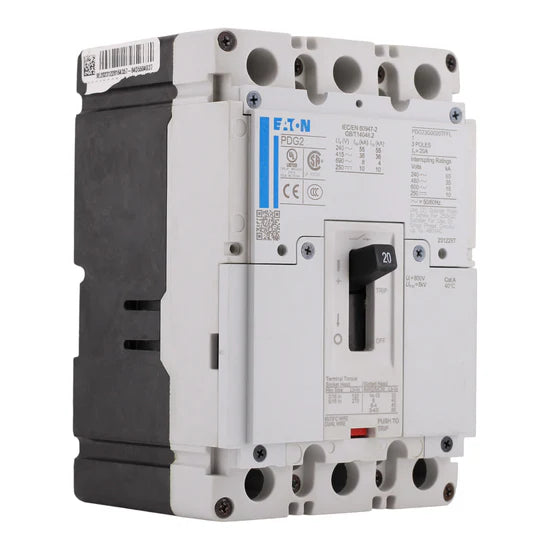

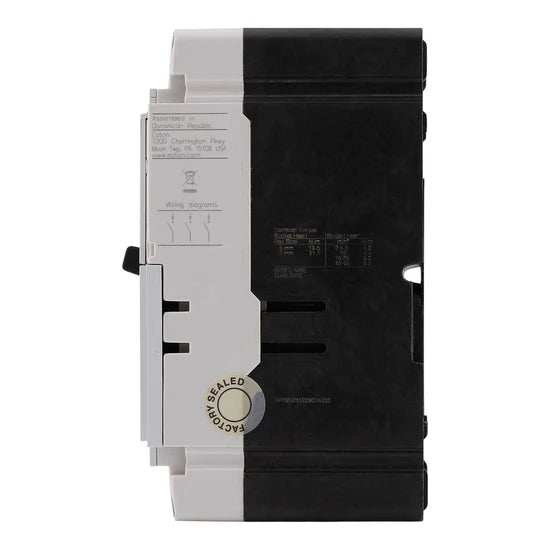

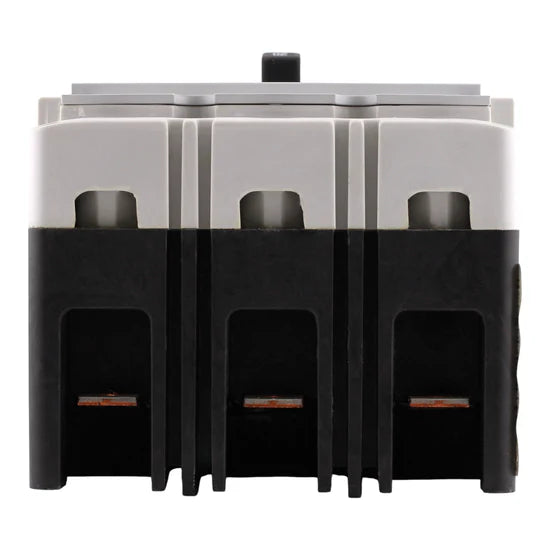

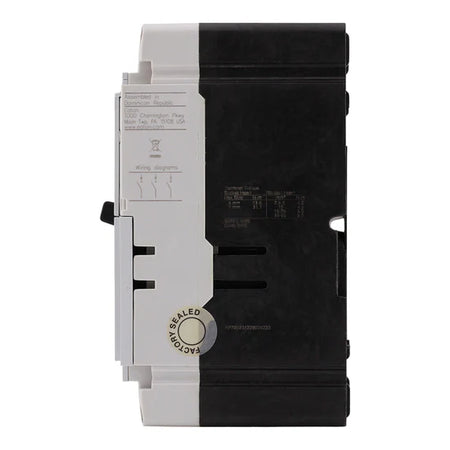

The Eaton Power Defense PDG23G0020TFFL is a reconditioned 3-pole, 20A molded case circuit breaker engineered for commercial and industrial power distribution systems. Rated for up to 600V AC, this globally rated breaker features a fixed thermal-magnetic trip unit and load-only standard terminals, delivering dependable overload and short-circuit protection. With high interrupting capacity and Power Defense reliability, it is well suited for demanding panelboard and switchboard applications.

Electrical Ratings:

  • Amperage: 20 Amps
  • Poles: 3-Pole
  • Voltage: 600 Volts AC

  • Interrupt Rating:

    • 35 kAIC @ 480V (UL)
    • 18 kAIC @ 600V (UL/CSA)
    • 65 kAIC @ 240V (UL)

Key Specifications:

  • Breaker Type: Thermal-Magnetic (Fixed Thermal-Fixed Magnetic)
  • Product Type: Molded Case Circuit Breaker

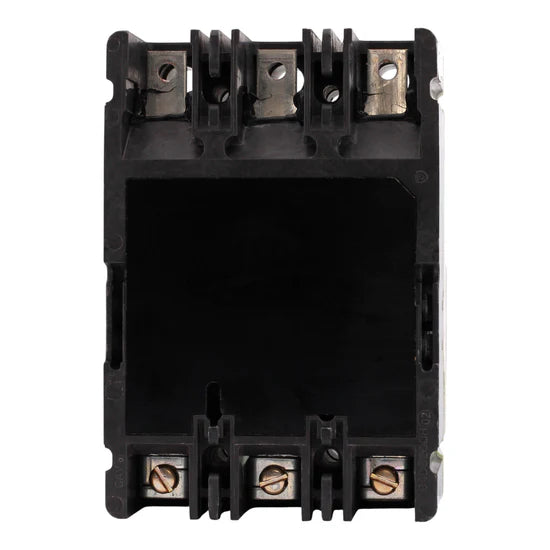

  • Mounting Mode: Fixed Front Plug-In

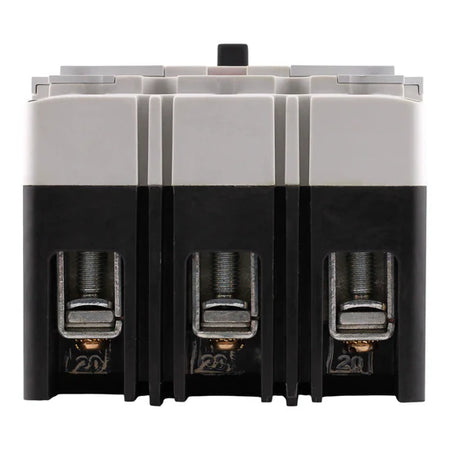

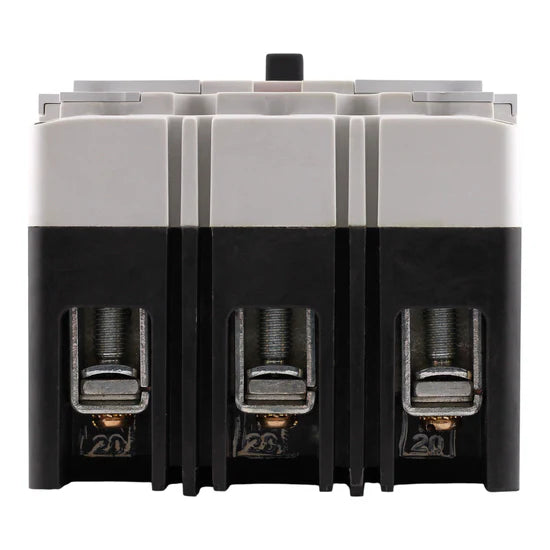

  • Connections Terminals: Standard Terminals Load Only
  • Wire Size: #14–4/0 AWG Cu/Al
  • Tightening Torque: 120 lb-in

Dimensions & Weight:

  • Height: 6.0 in
  • Width: 4.12 in
  • Depth: 3.5 in
  • Weight: 4.01 lbs

Certifications:

  • UL Listed
  • CSA
  • IEC 60947-2
  • CCC Marked

Product Data:

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: Power Defense
  • Model Number: PDG23G0020TFFL
  • UPC: 786679906439
  • Type Circuit Breakers
  • Vendor Eaton
  • Brand Eaton
