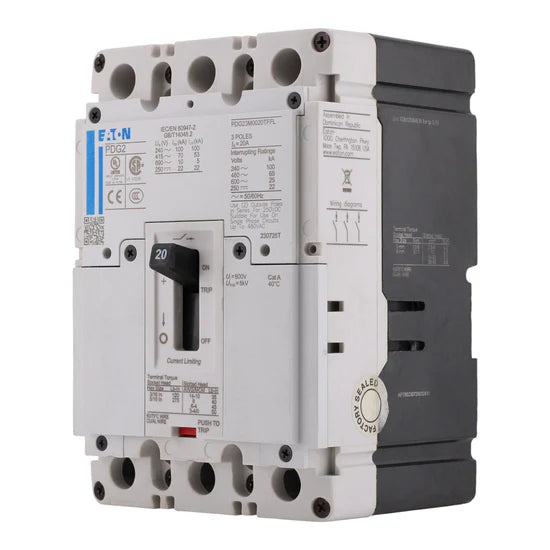

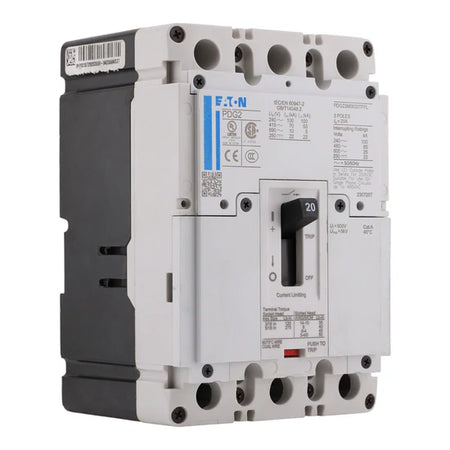

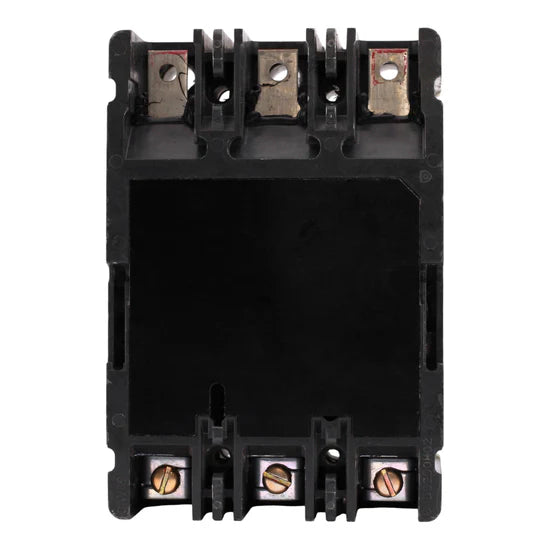

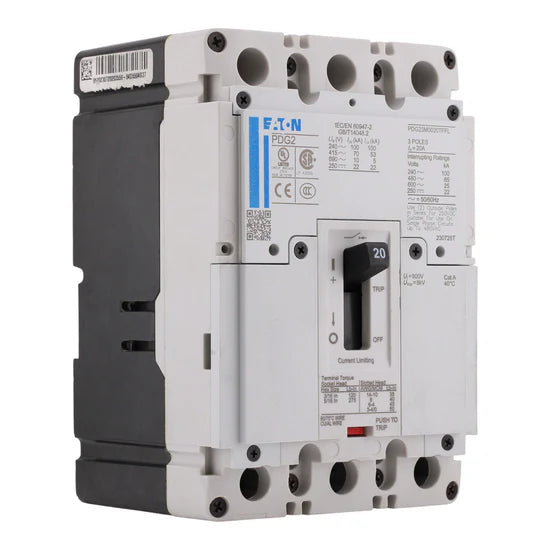

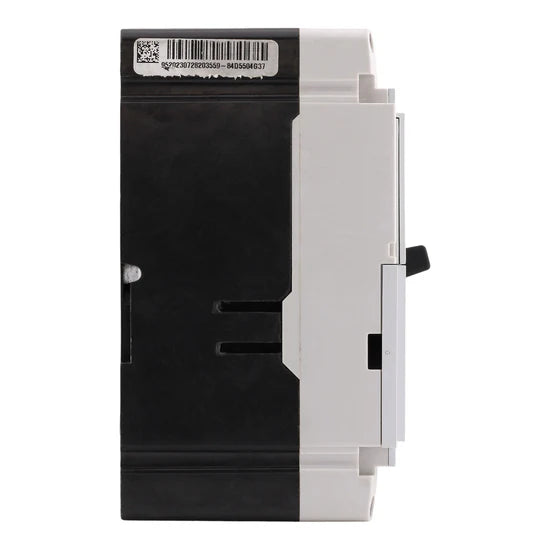

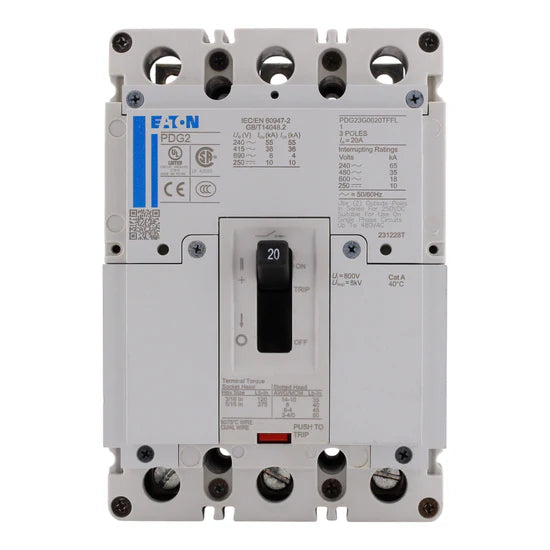

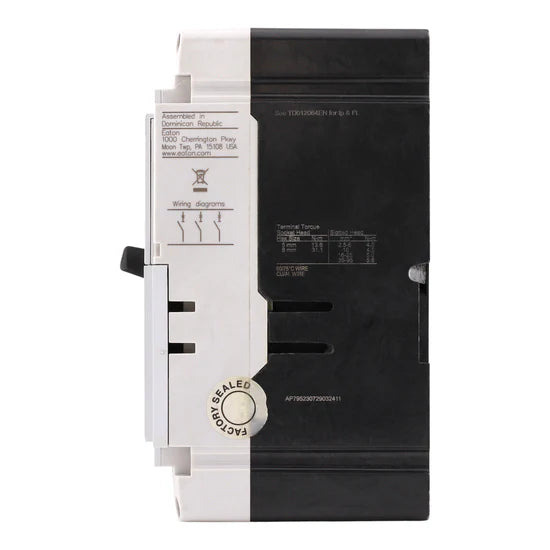

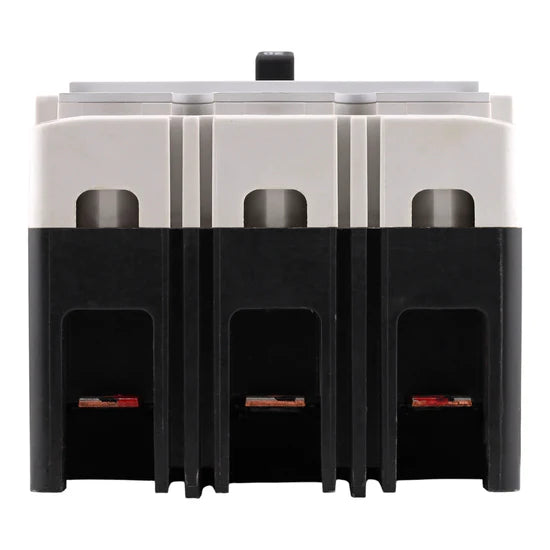

Eaton Power Defense PDG23M0020TFFL 20A 3P Molded Case Circuit Breaker – 65kA – 600V

In stock
SKU: PDG23M0020TFFL-RECON GTIN/UPC: 786679859384
$235.00

Select product select item condition:

SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

The Eaton Power Defense PDG23M0020TFFL is a high-performance 20A, 3-pole molded case circuit breaker designed for demanding commercial, industrial, and OEM applications. Rated for up to 600V AC, this Frame 2 breaker features a fixed thermal-magnetic trip unit that delivers dependable overload and short-circuit protection. With a robust 65 kAIC interrupt rating at 480V and global certifications, it provides reliable, code-compliant protection in modern power distribution systems.

Electrical Ratings:

  • Amperage: 20 Amps
  • Poles: 3-Pole
  • Voltage: 600 Volts AC
  • Interrupt Rating:
  • 100 kAIC @ 240 Vac
  • 65 kAIC @ 480 Vac
  • 35 kAIC @ 600 Vac (UL/CSA)

Key Specifications:

  • Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker
  • Trip Type: Fixed Thermal – Fixed Magnetic (T-M)
  • Frame: Frame 2
  • Mounting Mode: Bolt-on / Panel Mount
  • Connections Terminals: Standard Terminals Load Only

Dimensions & Weight:

  • Height: 6.0 in
  • Width: 4.12 in
  • Depth: 3.5 in
  • Weight: 4.01 lbs

Certifications:

  • UL 489 Listed
  • CSA
  • IEC 60947-2
  • CCC Marked
  • RoHS Compliant

Product Data:

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: Power Defense (Globally Rated, Frame 2)
  • Model Number: PDG23M0020TFFL
  • UPC: 786679859384
  • Type Circuit Breakers
  • Vendor Eaton
  • Brand Eaton
