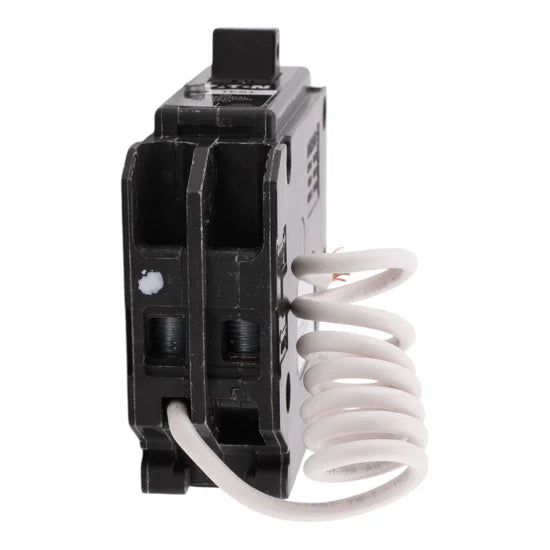

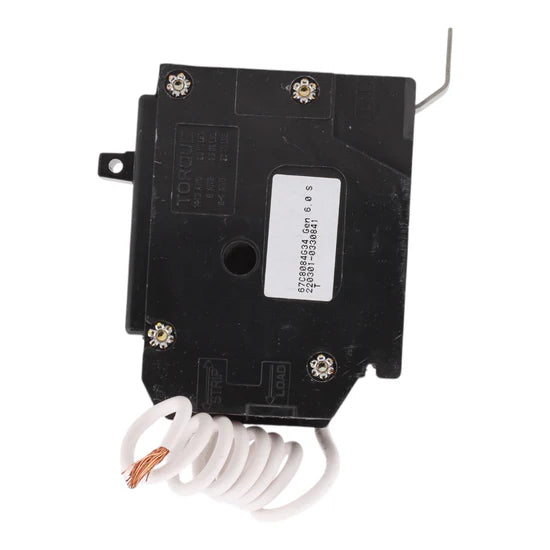

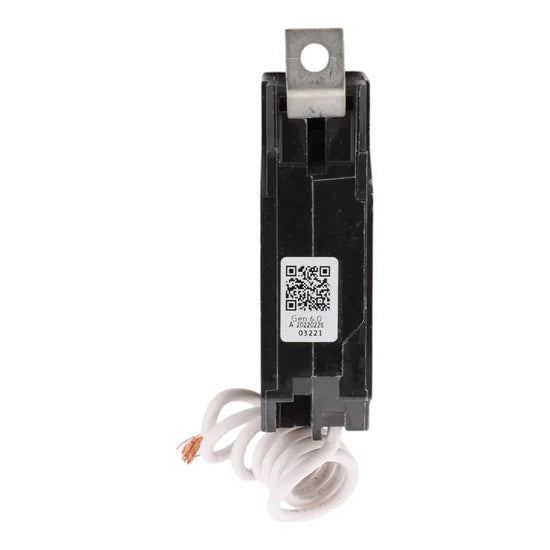

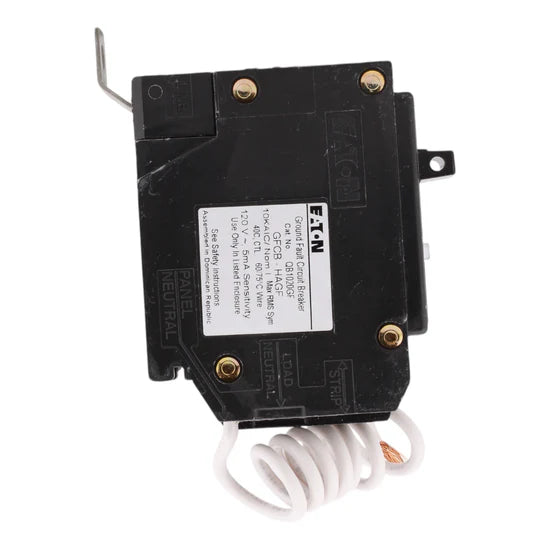

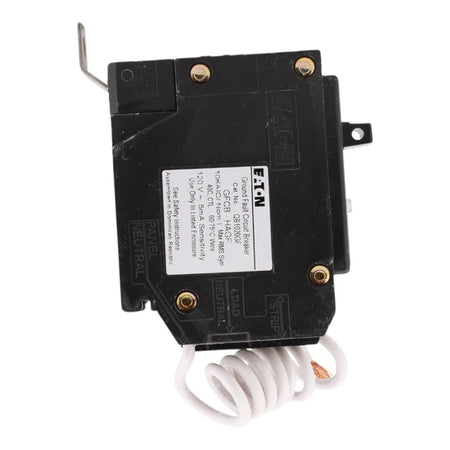

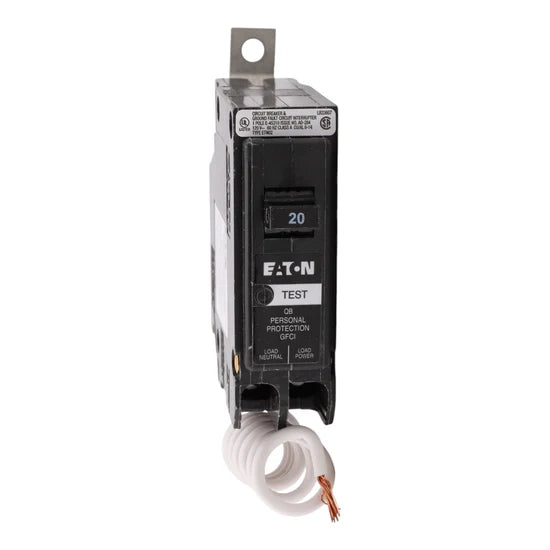

The Eaton QB1020GF 20 Amp single-pole GFCI circuit breaker provides dependable ground-fault protection for residential and commercial electrical systems. Designed for Eaton QB load centers, this breaker features 5 mA trip sensitivity to help protect against shock hazards by quickly interrupting power when a ground fault is detected. Its bolt-on mounting ensures secure installation, while the non-interchangeable trip design supports reliable circuit protection.
Voltage and Rating
- Amperage Rating: 20 Amps
- Voltage Rating: 120/240 Volts AC
- Trip Sensitivity: 5 mA
- Short Circuit Current Rating: 10 kAIC
Key Specifications
- Type: GFCI Circuit Breaker
- Breaker Technology: Ground-fault protection
- Number of Poles: 1-Pole
- Mounting Method: Bolt-On
- Connection Type: Bolt-On
- Trip Type: Non-Interchangeable
- Applications: Residential and commercial ground-fault protection
- Compatibility: Eaton QB load centers
Technical Specifications
- Wire Compatibility: #14–4 AWG
- Protection Function: Ground-fault detection and interruption
- Certifications: UL Listed
Product Data
-
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: QB1020GF
- UPC: 786680222498
- Dimensions (H × W × D): 1 in × 3.5 in × 4 in
- Weight: 0.45 lb
