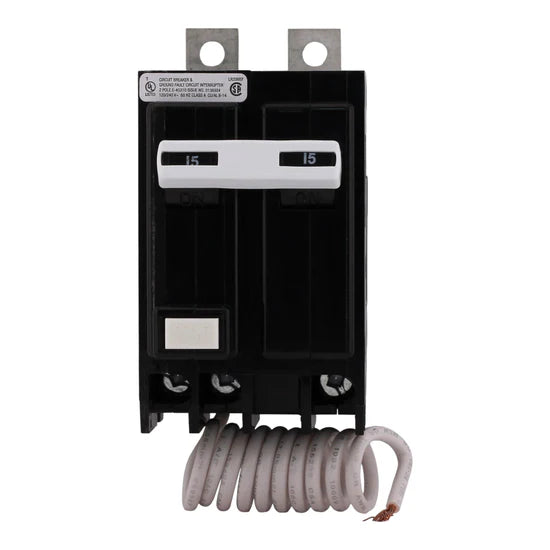

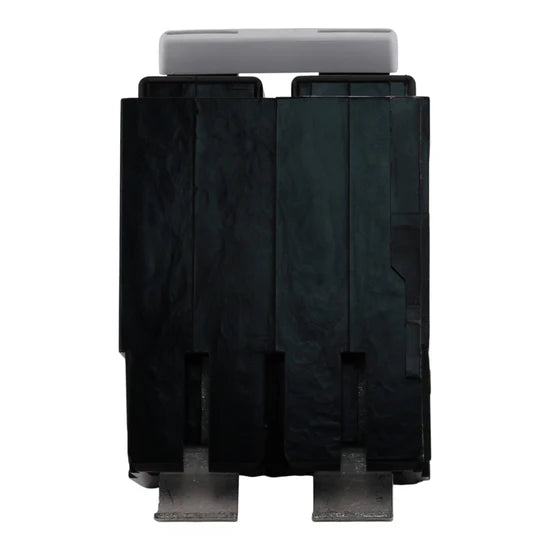

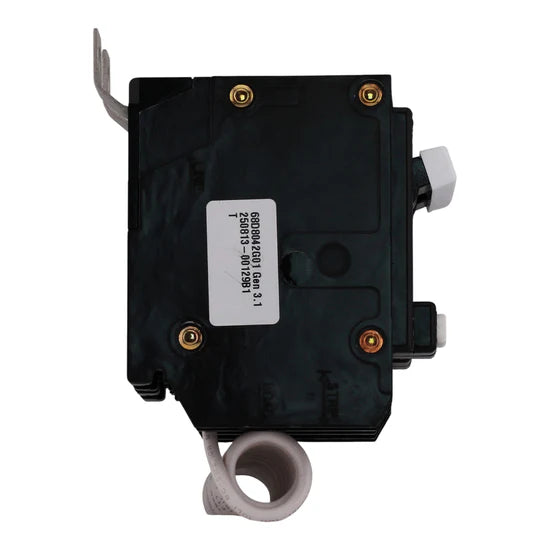

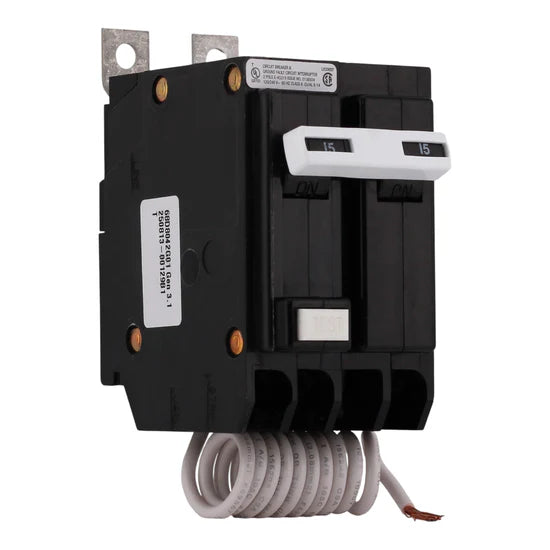

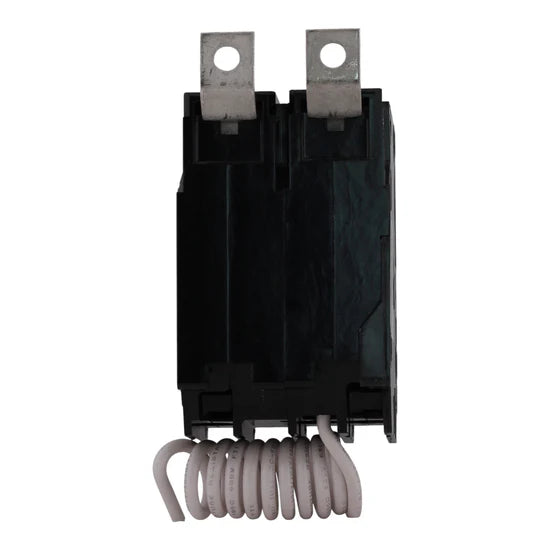

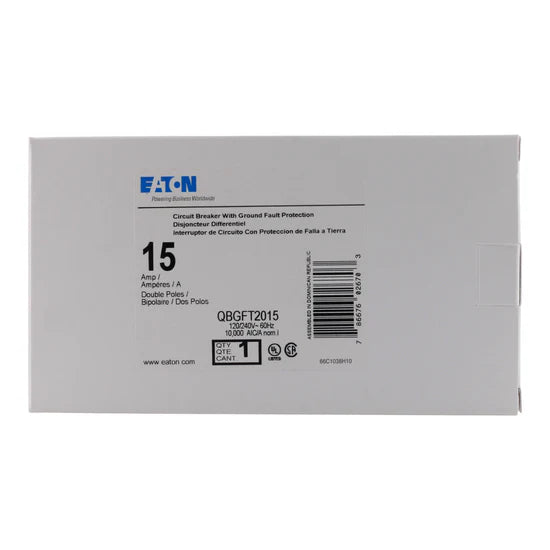

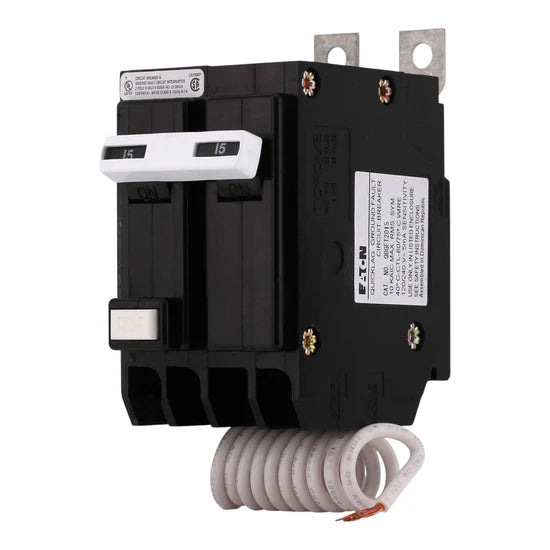

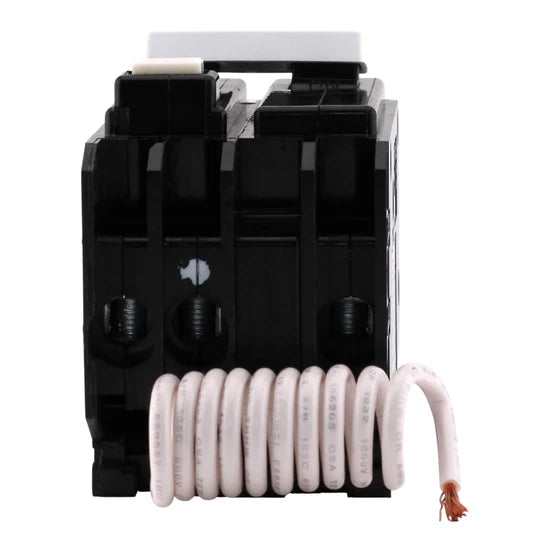

The Eaton QBGFT2015 is a 2-pole GFCI circuit breaker designed to provide dependable 15A ground-fault protection for 120/240V circuits in Eaton QB loadcenters. With Class A 5 mA trip sensitivity and a 10 kAIC interrupt rating, it delivers fast and reliable personnel protection against electrical shock hazards. Its bolt-on mounting ensures secure installation, making it suitable for residential and light commercial applications requiring code-compliant GFCI protection.
Electrical Ratings:
- Amperage: 15 Amps
- Poles: 2-Pole
- Voltage: 120/240 Volts AC
- Interrupt Rating: 10 kAIC
- Trip Sensitivity: 5 mA (Class A)
Key Specifications:
- Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
- Mounting Mode: Bolt-on
- Connections Terminals: Standard terminals
- Wire Size: #14–10 AWG Cu, #12–10 AWG Al
- Tightening Torque: Not specified
- Trip Type: Thermal-Magnetic
Dimensions & Weight:
-
- Height: 2.0 in
- Width: 2.75 in
- Depth: 4.5 in
- Weight: 0.6 lbs
Certifications:
- UL 489 Listed
- HACR Rated
Product Data:
- Manufacturer: Eaton
- Brand: Eaton
- Product Range: QB
- Model Number: QBGFT2015
- UPC: 786676026703
