Eaton QBGFT2020 – 20 Amp 2-Pole 120/240V GFCI Bolt-On Circuit Breaker (10kA) Ground Fault Protection

Product Description

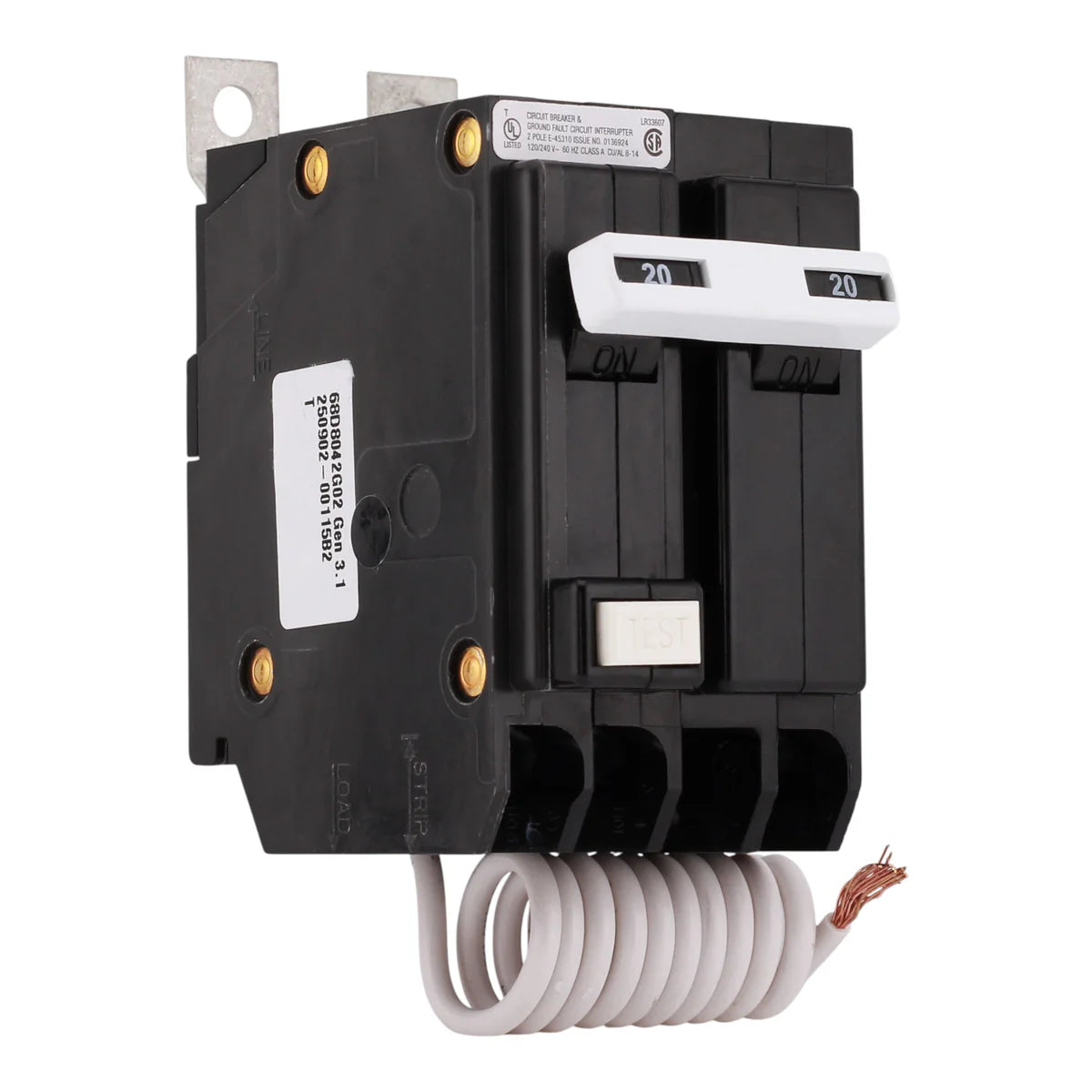

The QBGFT2020 is a Cutler-Hammer two-pole GFCI circuit breaker designed for 20-amp, 120/240-voltapplications with a bolt-on connection. Part of Eaton’s QB series, this breaker delivers dependable ground-fault protection with a 10 kA interrupting rating, common trip operation, and a 5 mA trip sensitivity for detecting unsafe leakage current.

This breaker is built to support #14–10 AWG copper conductors and #12–10 AWG aluminum conductors, making it suitable for a wide range of branch-circuit wiring requirements. It is UL 489 listed and HACR rated, providing proven safety and performance for residential and commercial electrical systems.

Electrical Ratings & Features

• Amperage: 20 A
• Voltage: 120/240 V
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10 kAIC
• Trip Type: Common Trip
• Trip Sensitivity: 5 mA
• Wire Size: #14–10 AWG Copper, #12–10 AWG Aluminum
• Series / Frame: QB
• Certifications: UL 489, HACR Rated
• Weight: 0.6 lb
• Warranty: 1 Year

Specifications

• Part Number: QBGFT2020
• Manufacturer: Cutler-Hammer
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family: QUICKLAG
• Type: QBGF
• Voltage: 240
• Amperage: 20
• Phase: 1
• Poles: 2
• AIC Rating: 10 kA @ 120 V
• Connection: Bolt-On
• Functions: LI – Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic

Product Data

• • UPC: 786676026710
  • GTIN: 00786676026710
  • Country of Origin: Dominican Republic
  • Weight: 0.77
  • Certification: UL 489
  • Wire Size: AWG 14–10 Copper, AWG 12–10 Aluminum
