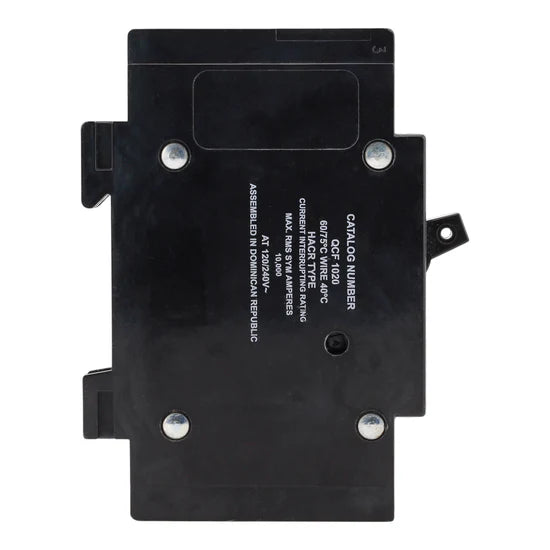

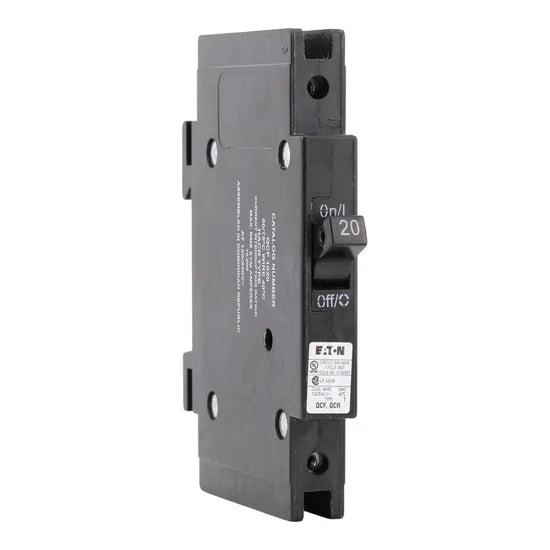

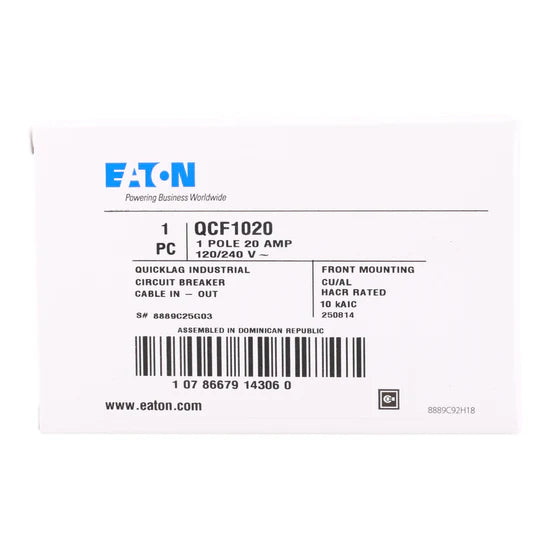

Eaton QCF1020 20A 1-Pole Thermal-Magnetic Circuit Breaker – Cable-In/Cable-Out – 120/240V

The Eaton Quicklag QCF1020 is a 20 Amp, 1-pole thermal-magnetic circuit breaker designed to provide reliable protection for 120/240V electrical systems in Quicklag loadcenters. Featuring a cable-in/cable-out connection and front mounting, it allows for straightforward installation and secure wiring. With a 10 kA interrupting capacity, this breaker delivers dependable overload and short-circuit protection, making it suitable for residential and light industrial applications.

Electrical Ratings:

• Amperage: 20 Amps
• Voltage: 120/240V AC
• Interrupt Rating: 10 kAIC

Key Specifications:

• Breaker Type: Thermal-Magnetic Circuit Interrupter
• Poles: 1-Pole
• Product Range: Quicklag
• Mounting Mode: Front
• Terminal Type: Cable-In/Cable-Out
• Application: Residential and light industrial circuit protection

Technical Specifications:

• Wire Size: (1) #14–4 AWG Cu/Al
• Tightening Torque: 35.4 lb-in
• Certifications: UL Listed, CSA Certified

Product Data:

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: QCF1020
  • UPC: 786679143063
  • Dimensions: 1.2" H × 3.0" W × 4.6" D
  • Weight: 0.25 lbs
