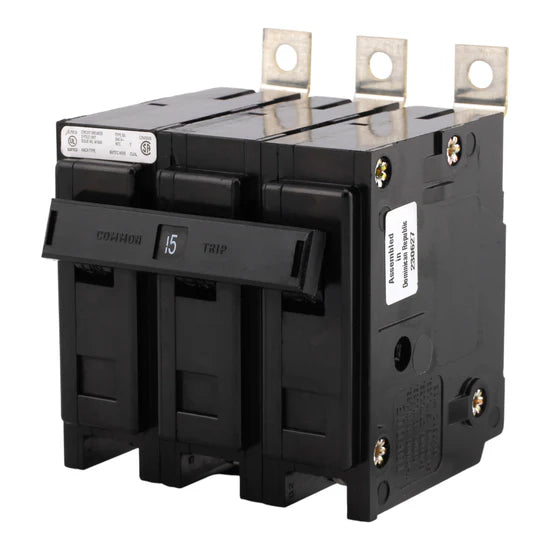

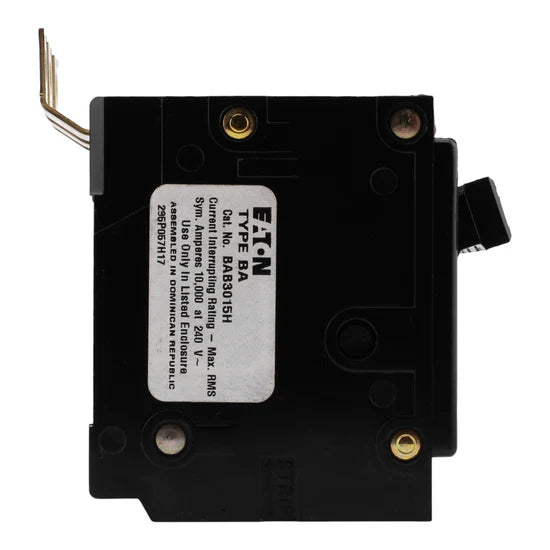

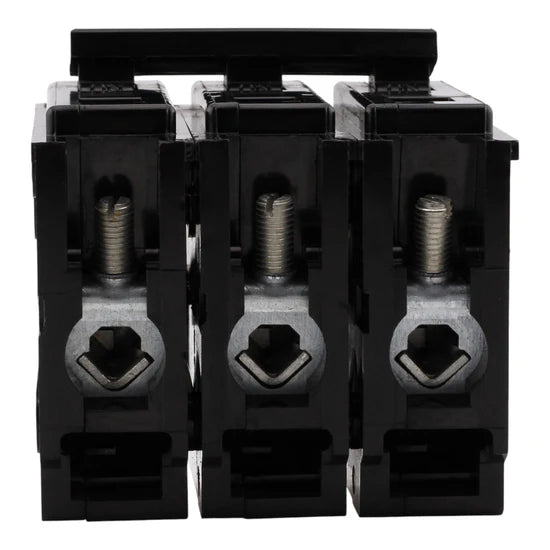

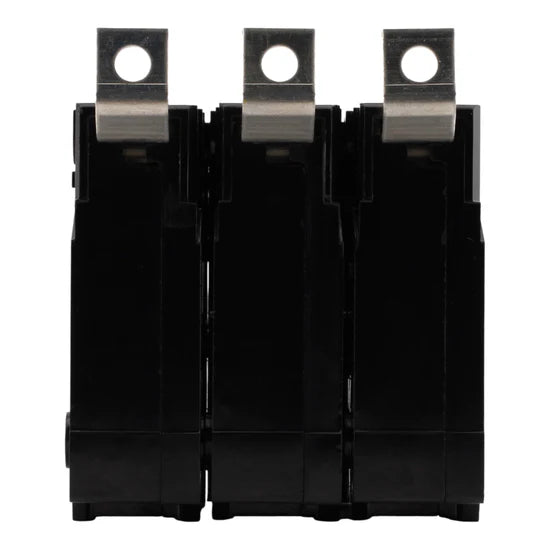

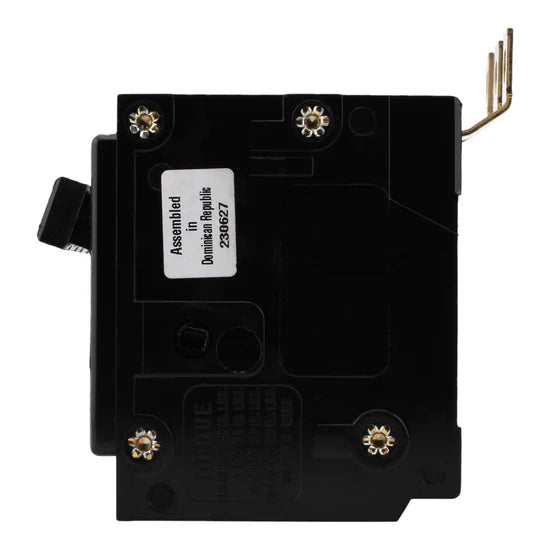

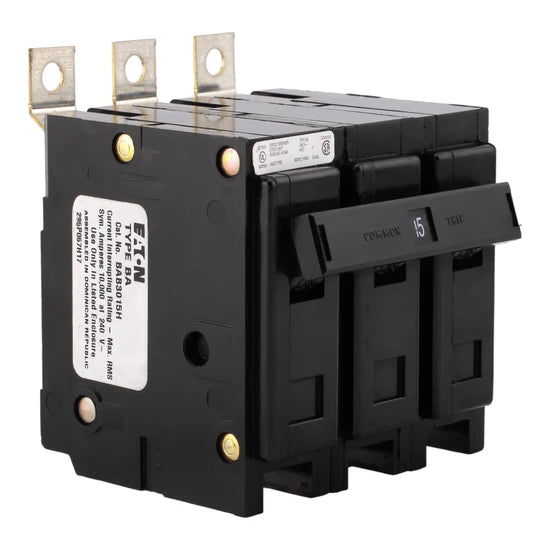

The Eaton Quicklag BAB3015H is a 15 Amp, 3-pole thermal-magnetic circuit breaker designed for 240V systems. Engineered for use in Eaton Quicklag loadcenters and distribution equipment, this bolt-on breaker provides dependable overload and short-circuit protection for industrial and commercial applications. With a 10kA interrupt rating and HACR certification, it ensures reliable performance in demanding environments.
Electrical Ratings
- Amperage: 15 Amps
- Poles: 3-Pole
- Voltage Rating: 240 Volts AC
- Interrupt Rating: 10 kAIC
- Breaker Type: Thermal-Magnetic
Mounting & Connections
- Mounting Mode: Bolt-On
- Connection Type: Bolt-On terminals
- Wire Size: (1) #14–4 AWG Copper/Aluminum
- Tightening Torque: 35.4 lb-in
Certifications & Compliance
- UL Listed
- CSA Certified
- HACR Rated
Physical Specifications
- Height: 4.9 inches
- Width: 3.2 inches
- Depth: 3.8 inches
- Weight: 1.0 lb
- Product Information
- Product Range: Quicklag
- Model Number: BAB3015H
- UPC: 786679303153
This Eaton Quicklag BAB3015H bolt-on circuit breaker delivers reliable 15A, 3-pole protection with a 10kA interrupt capacity, making it suitable for industrial, commercial, and heavy-duty residential electrical distribution systems.
