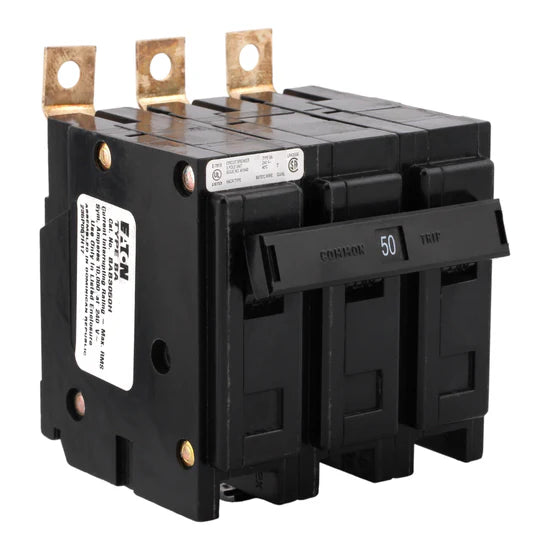

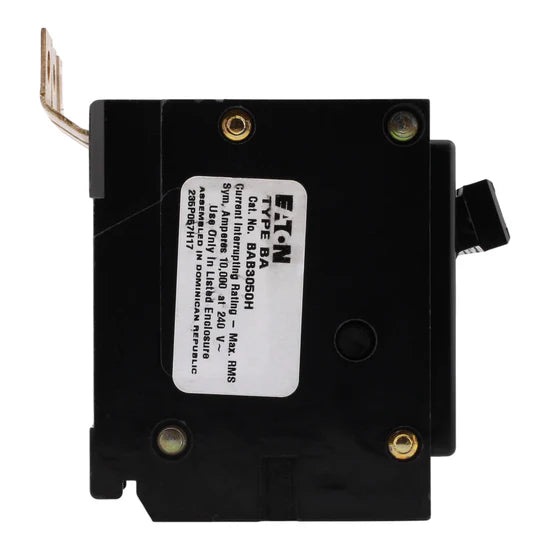

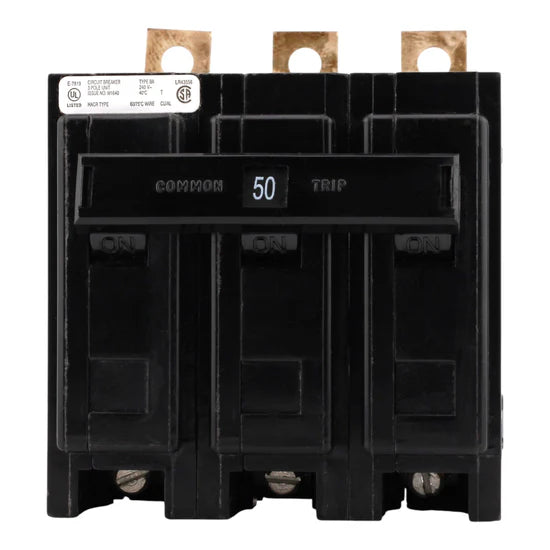

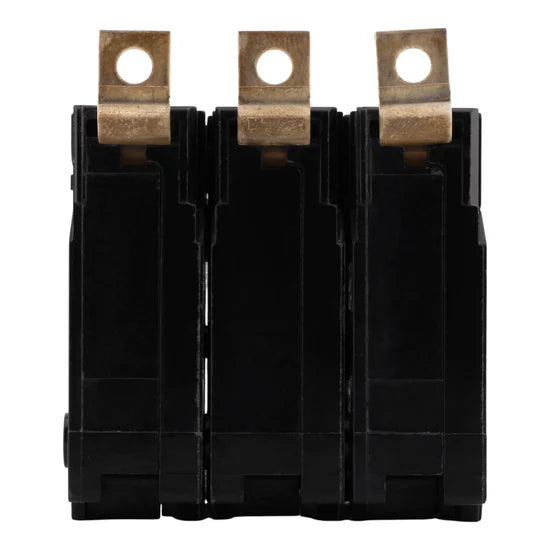

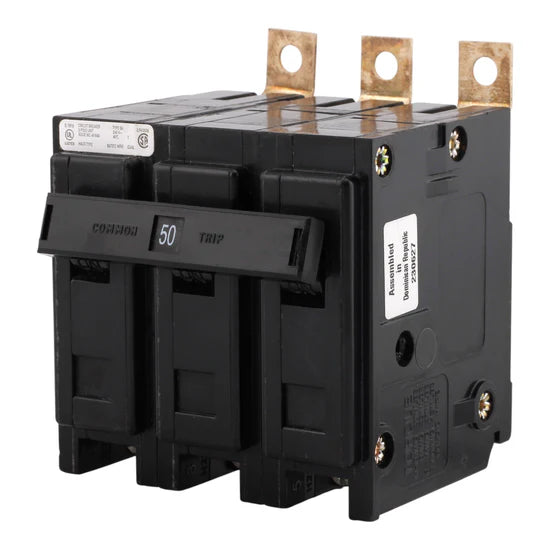

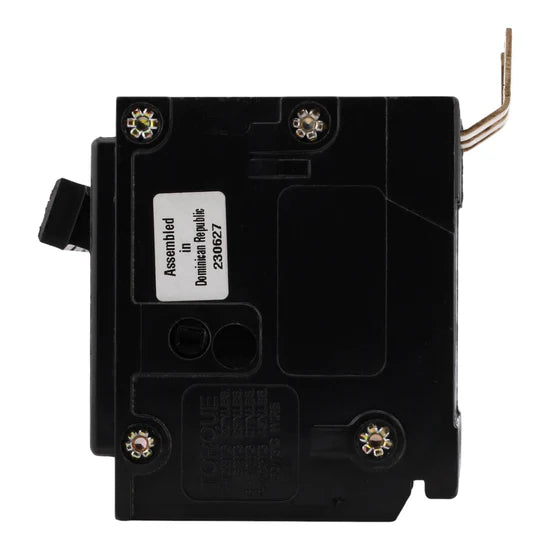

Eaton Quicklag BAB3050H 50A 3-Pole Thermal-Magnetic – Bolt-On – 240V

The Eaton BAB3050H is a 50 Amp, 3-Pole thermal-magnetic circuit breaker designed for Eaton Quicklag distribution panels. It provides reliable protection for 240V three-phase, four-wire circuits in commercial and industrial applications. With a 10 kAIC interrupt rating and bolt-on mounting, it ensures robust safety and performance.

Electrical Specifications

• Breaker Type: Thermal-Magnetic
• Amperage: 50 Amps
• Poles: 3-Pole
• Voltage: 240 Volts AC
• Interrupt Rating: 10 kAIC

Mechanical & Mounting Specifications

• Mounting Mode: Bolt-On
• Connection Terminals: Bolt-On

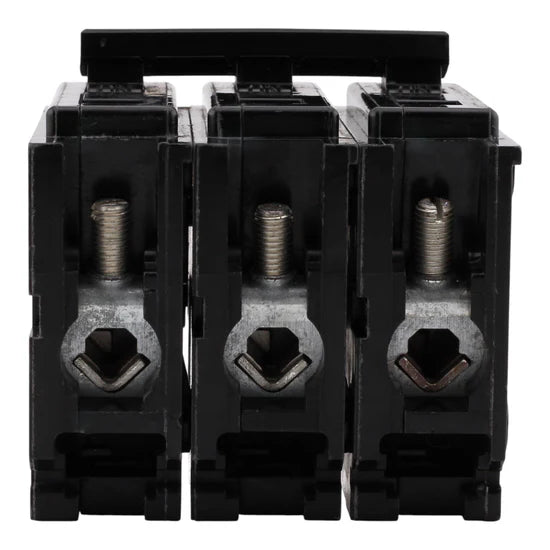

• Wire Size Range: (1) #14–4 AWG Cu/Al
• Tightening Torque: 35.4 lb-in

Certifications

• UL Listed
• CSA Certified
• HACR Rated

Physical Dimensions

• • Height: 4.9 in
  • Width: 3.2 in
  • Depth: 3.8 in
  • Weight: 1.0 lbs

Key Features

• Reliable 50A, 3-pole protection for 240V circuits
• Designed for three-phase, four-wire Eaton Quicklag distribution panels
• Bolt-on mounting for secure installation
• UL, CSA listed, and HACR rated for safety and compliance
