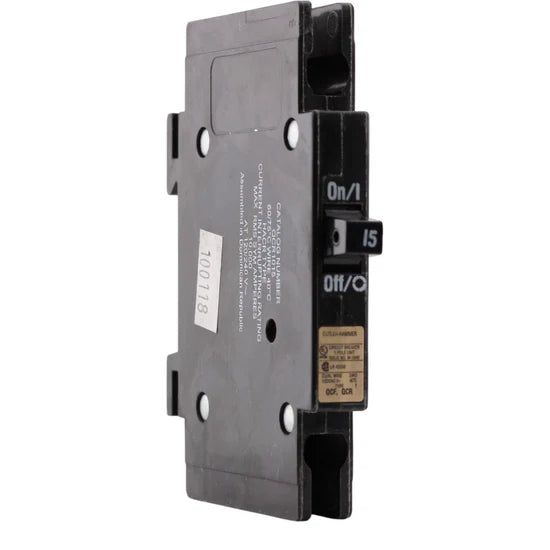

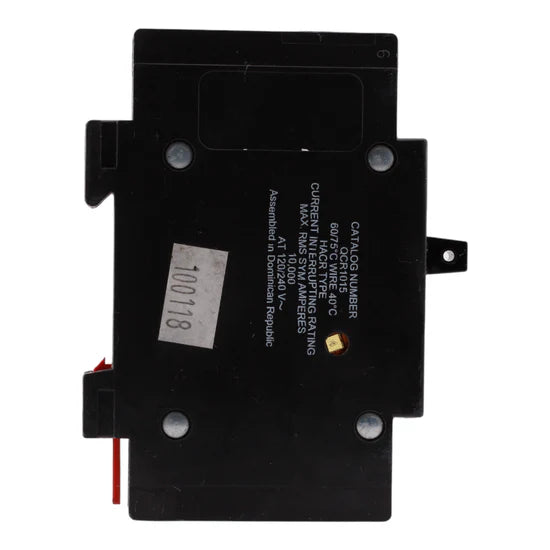

The Eaton QuickLag QCR1015 thermal magnetic miniature circuit breaker delivers reliable 15 Amp overcurrent protection for industrial load centers and DIN rail applications. Manufactured under the Cutler-Hammer line, this 1-pole breaker features cable-in/cable-out terminals and rear mounting on a standard 35 mm DIN rail for efficient installation. With a 10 kAIC interrupt rating and HACR rating, it is well suited for HVAC equipment and general industrial circuit protection.
Voltage and Rating
- Amperage: 15 Amps
- Voltage: 120/240 Volts AC
- Interrupt Rating: 10 kAIC
Key Specifications
- Breaker Type: Thermal Magnetic Miniature Circuit Breaker
- Number of Poles: 1-Pole
- Mounting Mode: 35 mm DIN rail rear mounting
- Connection Terminals: Cable-in / Cable-out
-
load centers, fuseboxes, HVAC circuits
- Applications: Industrial
Technical Specifications
- Wire Size: #14–10 AWG Copper
- Trip Characteristics: Thermal magnetic
- Protection Function: Overload and short-circuit protection
- Certifications: UL Listed, HACR Rated, CSA Certified
Product Data
- Manufacturer: Eaton
- Brand: Eaton (Cutler-Hammer)
- Model Number: QCR1015
- UPC: 786679473504
-
Dimensions:
- Height: 4.6 in
- Width: 2.9 in
- Depth: 1.2 in
- Weight: 0.25 lb
