Eaton Cutler-Hammer

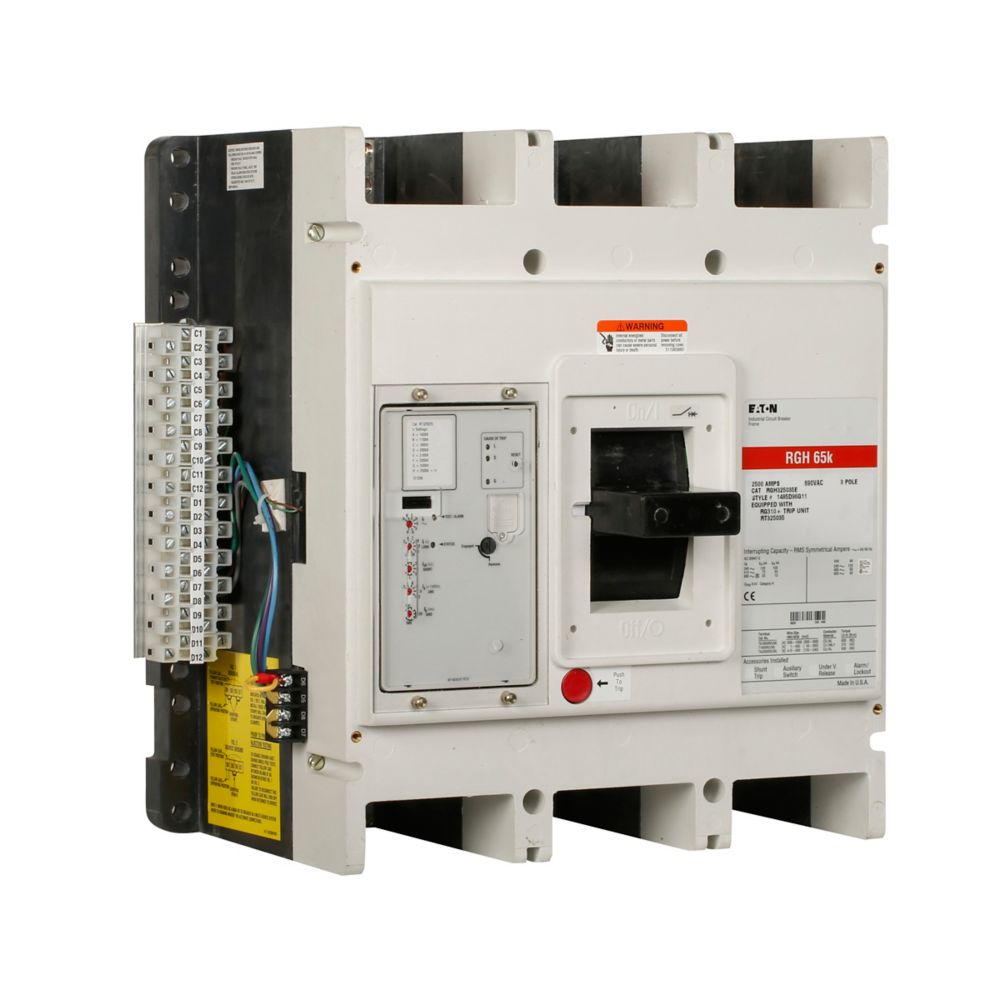

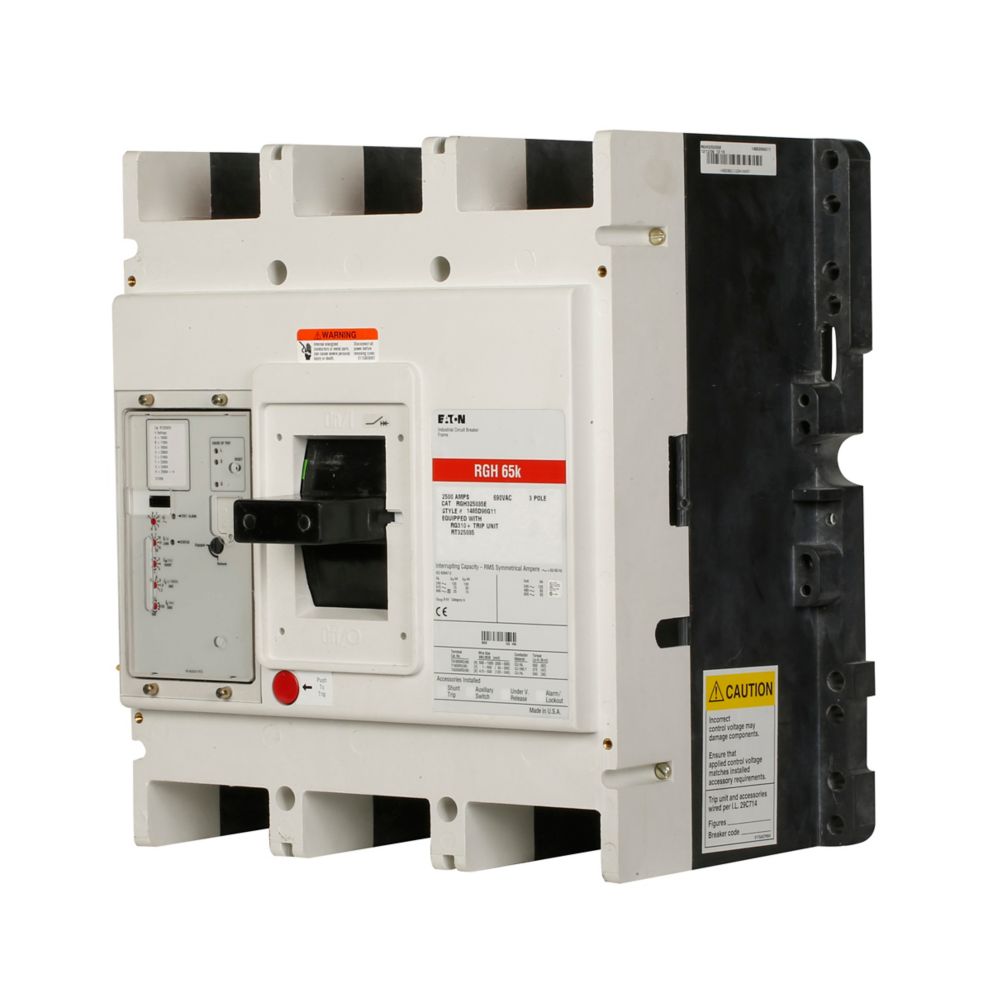

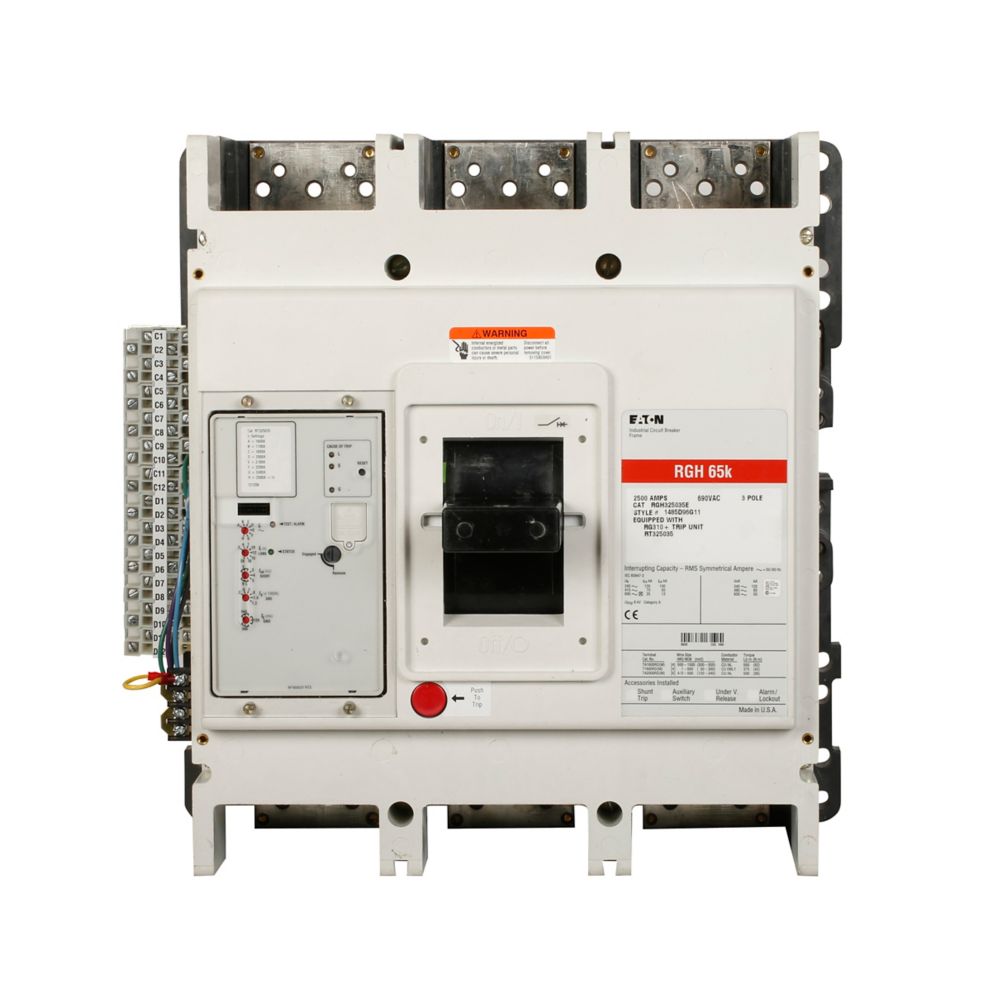

Eaton RGH316032E Series G Electronic Molded Case Circuit Breaker – 1600A, 3-Pole, Electronic LSI, 65 kAIC

In stock
SKU: RGH316032E GTIN/UPC: 786685574080
$13,091.16
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton RGH316032E Series G electronic molded case circuit breaker is engineered for high-capacity industrial and commercial power distribution systems requiring advanced circuit protection and reliable performance. Built on Eaton’s RG frame platform, it features an Electronic LSI trip unit that provides adjustable long-time, short-time, and instantaneous protection for enhanced system coordination and fault management. Its three-pole configuration and high interrupting capability make it ideal for switchboards, panelboards, and large-scale electrical distribution applications. Designed for durability and operational reliability, this breaker supports reverse feed applications and flexible installation configurations.

Electrical Ratings

  • Current Rating: 1600A
  • Number of Poles: Three-pole
  • Frame Size: RG Frame
  • Circuit Breaker Type: RG
  • Series: Series G
  • Trip Type: Electronic LSI
  • Rating: 80% rated
  • Frequency Rating: 50 to 60 Hz
  • Interrupt Rating: 125 kAIC at 240 Vac
  • Interrupt Rating: 65 kAIC at 480 Vac

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: RGH316032E
  • Model Code: RGH316032E
  • UPC: 786685574080
  • Product Type: Electronic molded case circuit breaker
  • Type: Complete breaker
  • Terminals: Line and load
  • Mounting Hardware: Imperial
  • Certifications: UL Listed
  • Catalog Notes: All R-Frame circuit breakers are suitable for reverse feed use. Order terminals separately. Mounting hardware not included.
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation or eighteen (18) months from shipment, whichever occurs first

Physical Details

  • Product Length/Depth: 20 in
  • Product Height: 18 in
  • Product Width: 19 in
  • Product Weight: 80 lb

Product Data

  • Application: High-capacity industrial and commercial power distribution systems
  • Installation Use: Switchboards, panelboards, and large electrical distribution assemblies
  • Function: Provides adjustable electronic overload, short-circuit, and instantaneous protection
  • System Compatibility: Eaton Series G RG frame platform
  • Safety Feature: Electronic LSI trip unit and high interrupting capacity improve fault protection, coordination, and system reliability
