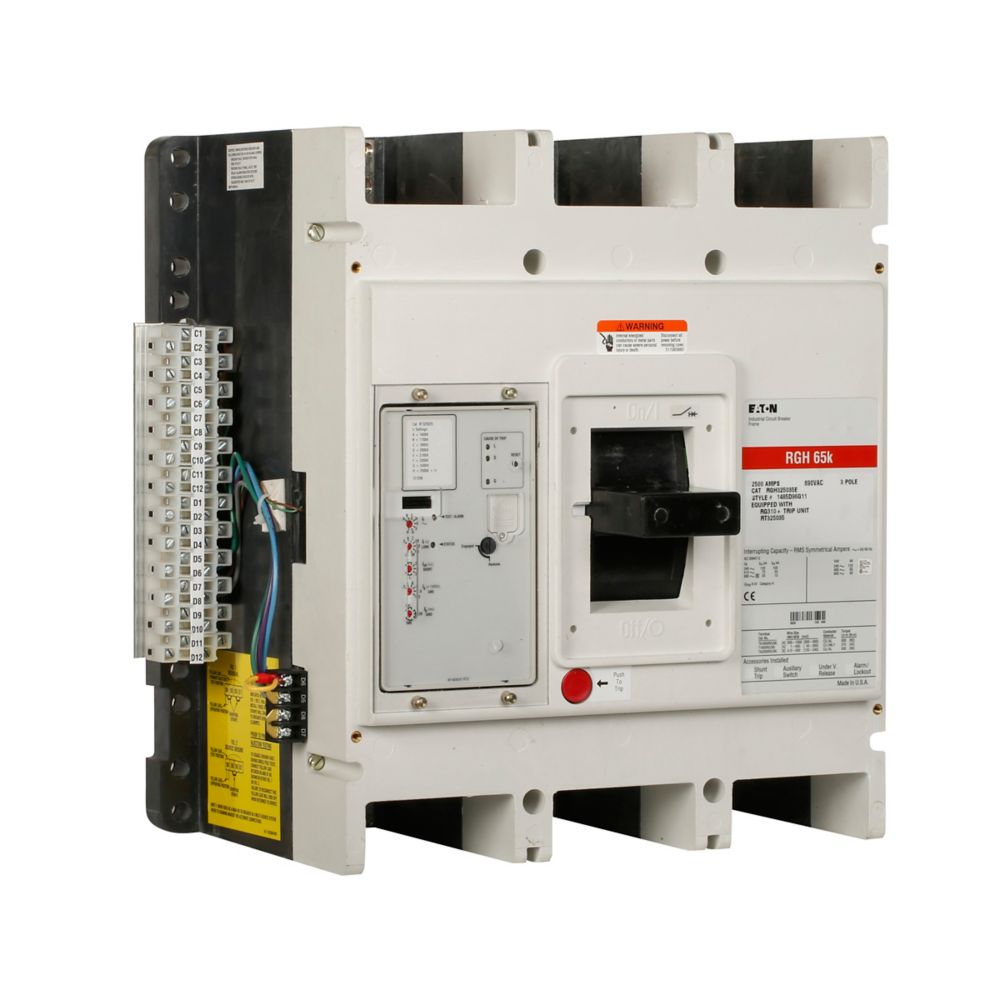

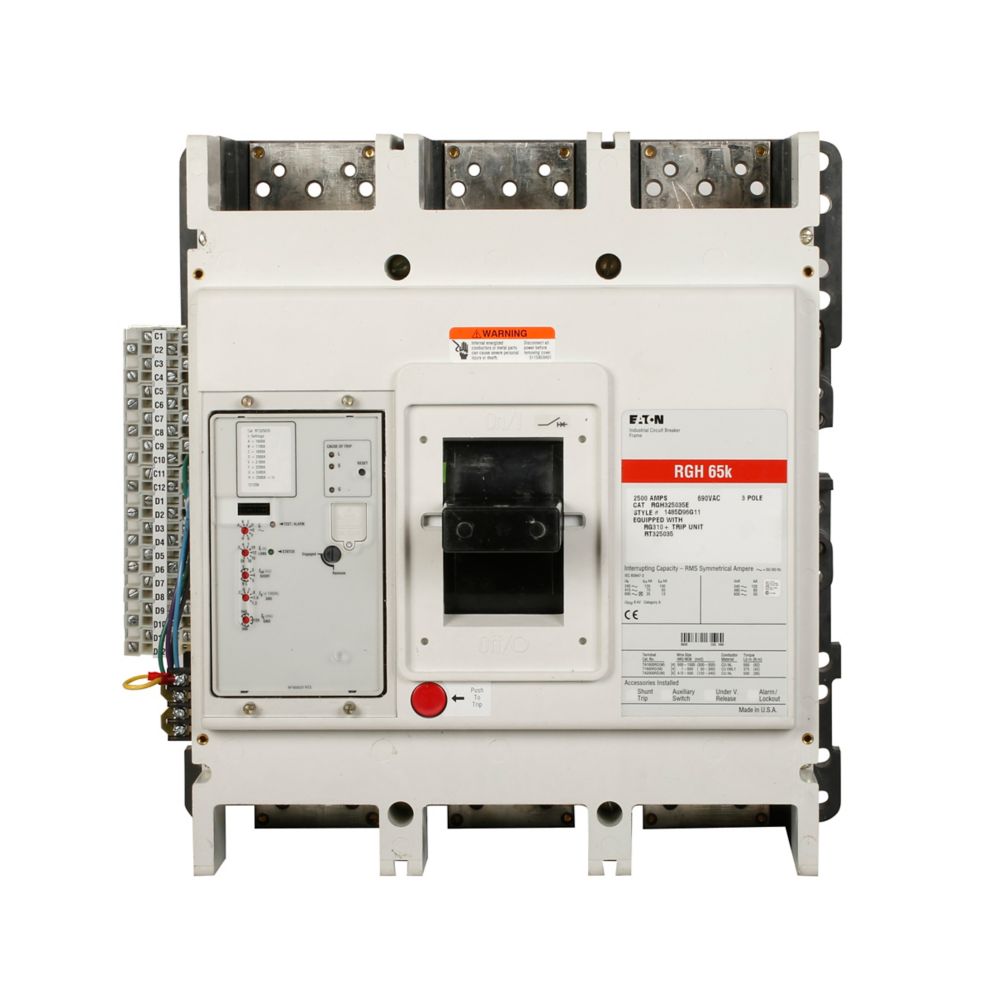

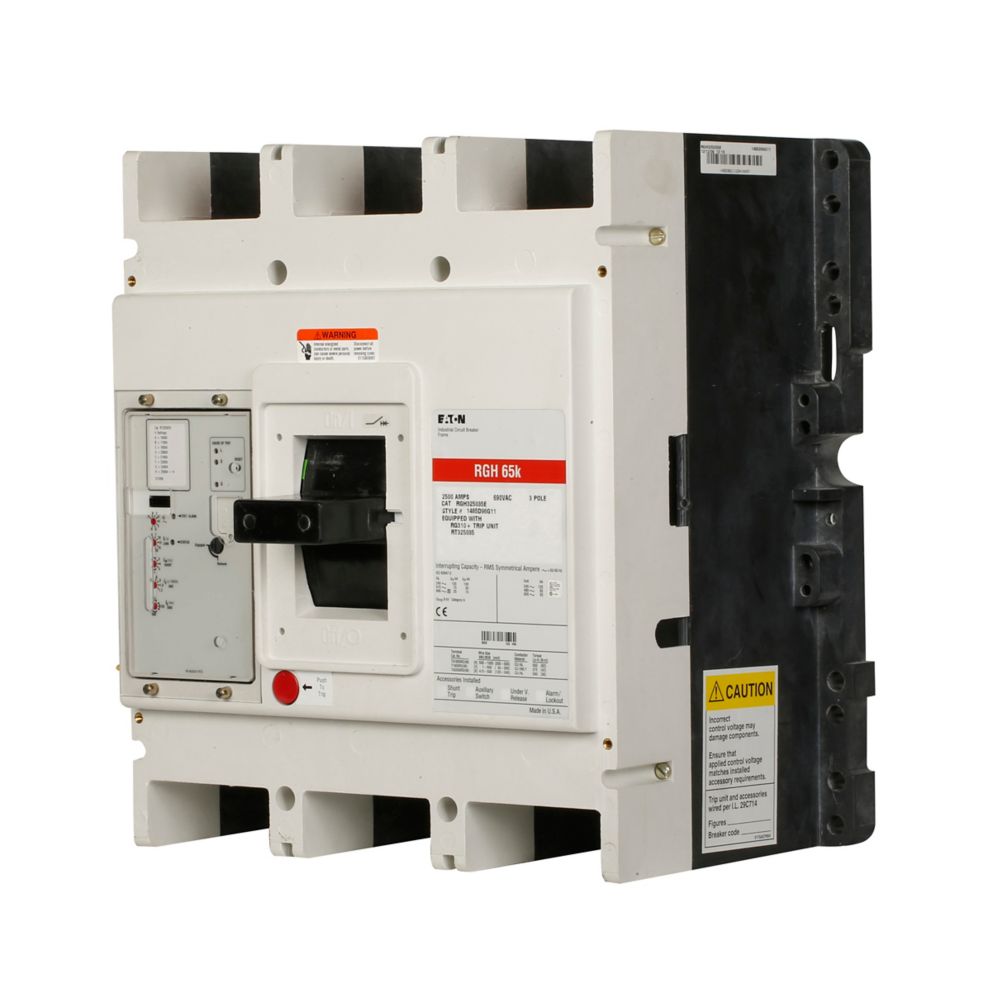

Eaton RGH320035E Series G Electronic Molded Case Circuit Breaker – 2000A, 3-Pole, Electronic LSG, 65 kAIC

The Eaton RGH320035E Series G electronic molded case circuit breaker is engineered for high-capacity industrial and commercial power distribution systems requiring advanced circuit protection and reliable operational performance. Built on Eaton’s RG frame platform, this breaker features an Electronic LSG trip unit that provides adjustable long-time, short-time, and ground-fault protection for enhanced coordination and fault management. Its three-pole design and high interrupting capability make it ideal for switchboards, panelboards, and critical infrastructure installations. Designed as a complete breaker assembly, it also supports reverse feed applications for added installation flexibility.

Electrical Ratings

• Current Rating: 2000A
• Number of Poles: Three-pole
• Circuit Breaker Type: RG
• Circuit Breaker Frame Type: Complete breaker
• Trip Type: Electronic LSG
• Rating: 80% rated
• Interrupt Rating: 65 kAIC at 480 Vac
• Interrupt Rating: 125 kAIC at 240 Vac

Key Specifications

• Manufacturer: Eaton
• Catalog Number: RGH320035E
• UPC: 786685574714
• Product Type: Electronic molded case circuit breaker
• Series: 80% rated
• Type: Complete breaker
• Terminals: Line and load
• Certifications: UL Listed
• Catalog Notes: All R-Frame circuit breakers are suitable for reverse feed use. Order terminals separately. Mounting hardware not included.
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation or eighteen (18) months from shipment, whichever occurs first

Physical Details

• Product Length/Depth: 9.75 in
• Product Height: 15.5 in
• Product Width: 15.5 in
• Product Weight: 102 lb

Product Data

• Application: High-capacity industrial and commercial electrical distribution systems
• Installation Use: Switchboards, panelboards, and critical infrastructure power systems
• Function: Provides adjustable overload, short-circuit, and ground-fault protection for advanced system coordination
• System Compatibility: Eaton Series G RG frame platform
• Safety Feature: Electronic LSG trip unit and high interrupting capacity improve system protection, fault coordination, and operational reliability
