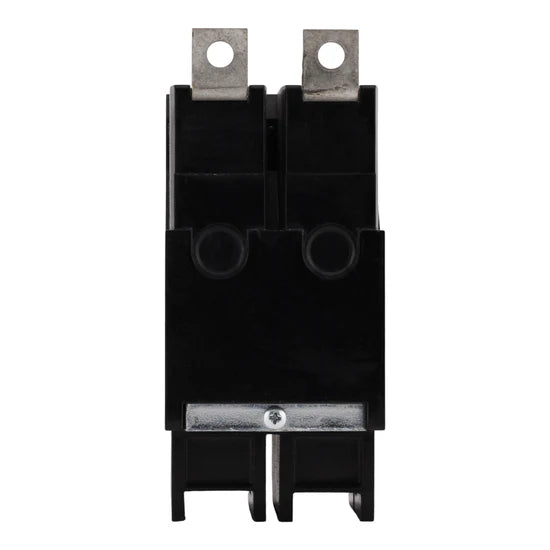

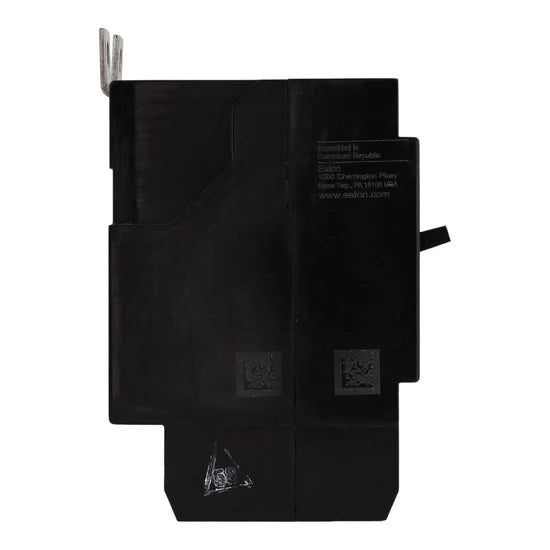

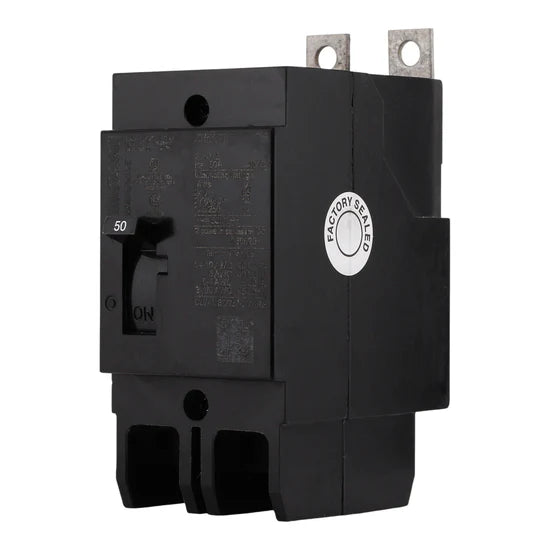

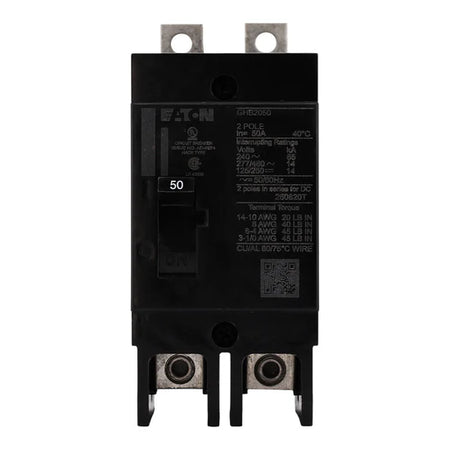

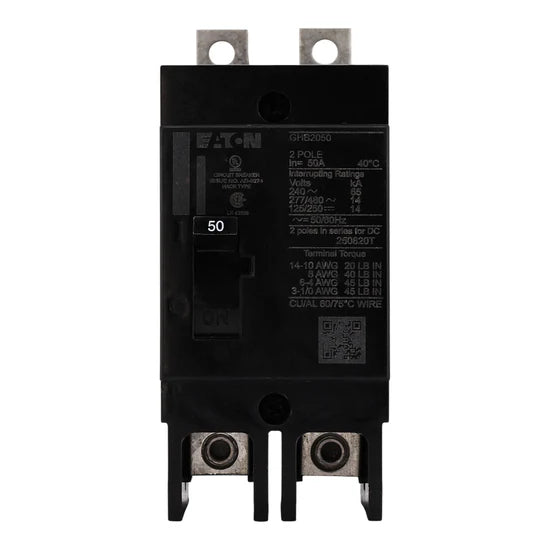

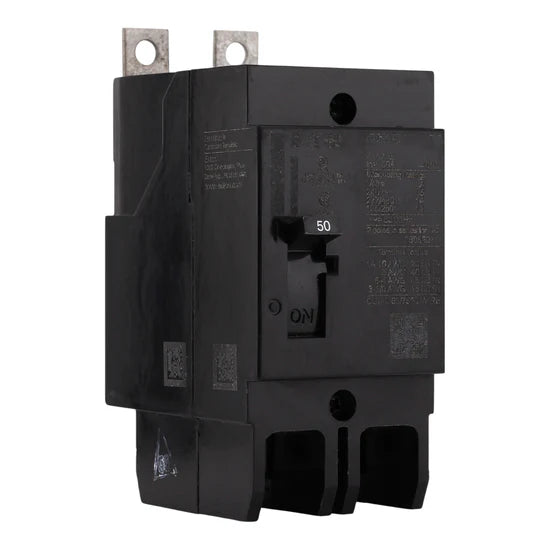

Eaton Series C GHB2050 50A 2P Molded Case – Bolt-On – 480Y/277V

The Eaton Series C GHB2050 is a 2-pole molded case circuit breaker designed for commercial and industrial applications, providing 50A overcurrent protection for 480Y/277V AC or 125/250V DC circuits. With fixed thermal and fixed magnetic trip mechanisms and high interrupt ratings, it ensures reliable protection in Eaton Series C panelboards and switchboards. Bolt-on mounting simplifies installation while meeting UL safety standards.

Electrical Ratings:

• Amperage: 50 Amps
• Poles: 2-Pole
• Voltage: 480Y/277 Volts AC, 125/250 Volts DC
• Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac

Key Specifications:

• Breaker Type: Molded Case, Fixed Thermal / Fixed Magnetic
• Mounting Mode: Bolt-On

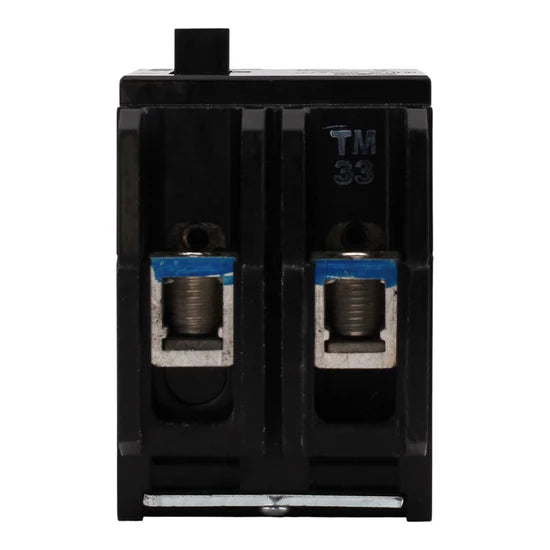

• Connections Terminals: Line/Load Lugs
• Wire Size: #6–300 kcmil Cu/Al (per manufacturer guidance)
• Trip Type: Fixed thermal, fixed magnetic
• Frame: G-Frame
• Frequency Rating: 50/60 Hz

Dimensions & Weight:

• • Height: 4.0 in
  • Width: 2.0 in
  • Depth: 2.63 in
  • Weight: 1.05 lbs

Certifications:

• UL Listed

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Series C (compatible with Eaton Series C panelboards and switchboards)
• Model Number: GHB2050

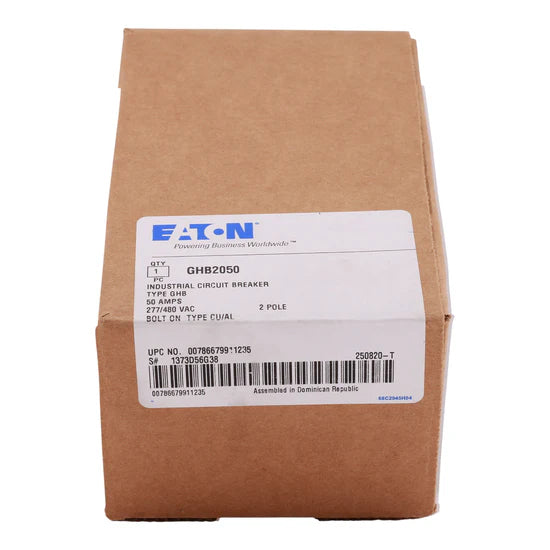

• UPC: 786679911235
