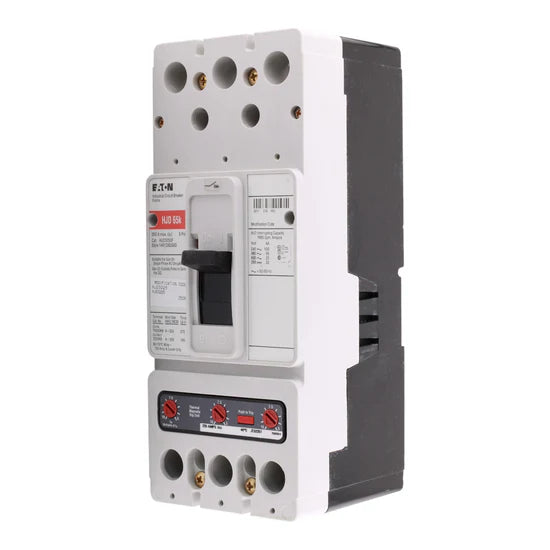

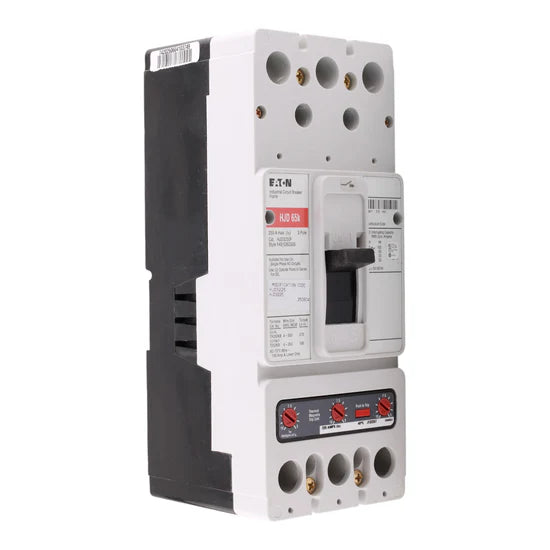

Eaton Series C HJD3225 225A 3P Molded Case Circuit Breaker – 600V

The Eaton HJD3225 molded case circuit breaker delivers high-performance 225A, 3-pole protection for 600V AC and 250V DC systems. Built for Eaton Series C compatible equipment, this fixed-mount breaker provides robust overcurrent protection with high interrupting capacity for demanding commercial and industrial applications.

Voltage and Rating

• Current Rating: 225 Amps

• Voltage Rating:

• 600 Volts AC
• 250 Volts DC
• Interrupt Rating:
• 100 kAIC at 240 Volts AC
• 65 kAIC at 480 Volts AC
• Poles: 3-Pole
• Breaker Type: Molded Case Circuit Breaker

Key Features

• High interrupting capacity for heavy-duty protection
• Thermal-magnetic trip mechanism for reliable overload and short-circuit protection
• Fixed mounting design for secure installation

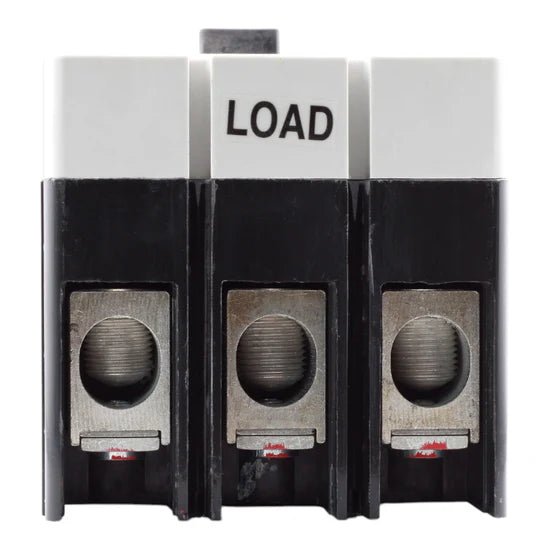

• Line and load terminal configuration for flexible wiring
• Engineered for Eaton Series C equipment compatibility
• Suitable for commercial and industrial power distribution

Installation Details

• Mounting Mode: Fixed
• Terminal Type: Line and load
• Wire Size: Not specified by manufacturer
• Tightening Torque: Not specified by manufacturer

Physical Specifications

• Height: 4.13 in
• Width: 4.13 in
• Depth: 4.06 in
• Weight: 12.5 lbs

Certifications

• UL Listed

Product Information

• • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: Series C
  • Model Number: HJD3225
  • UPC: 786679512036
