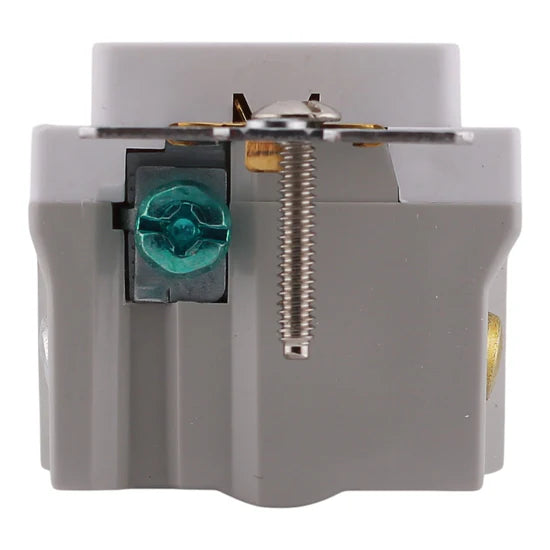

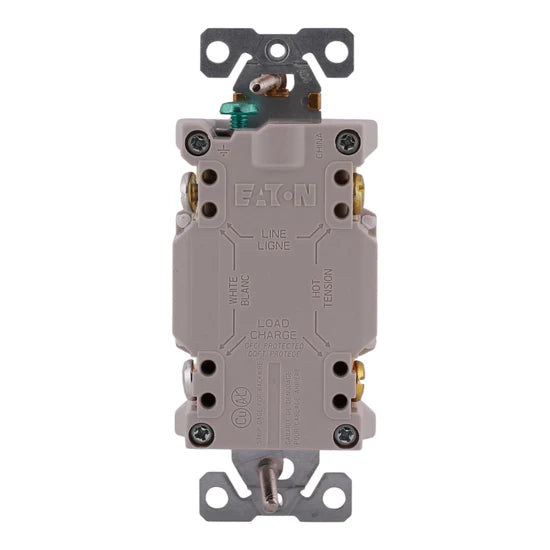

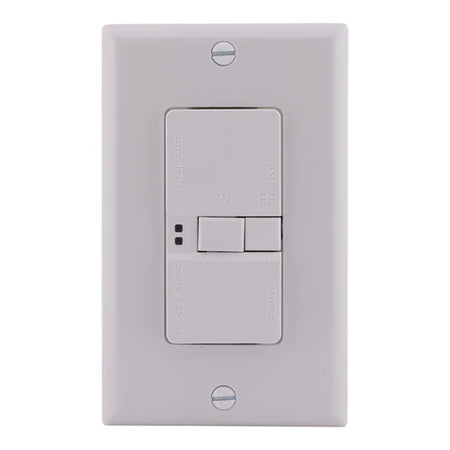

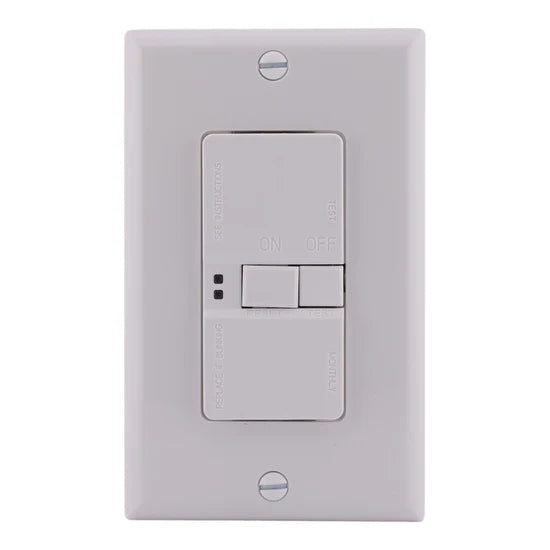

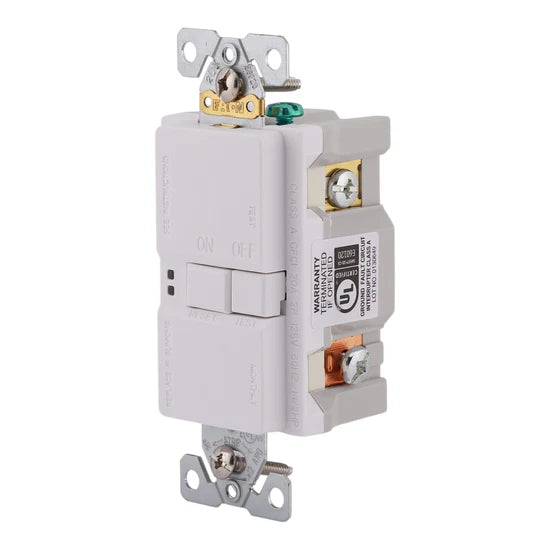

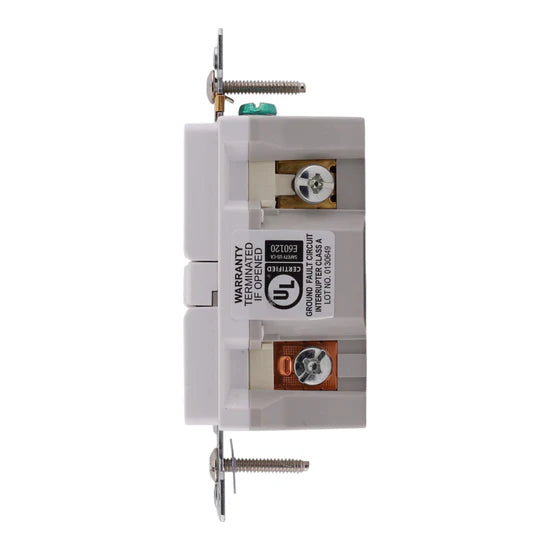

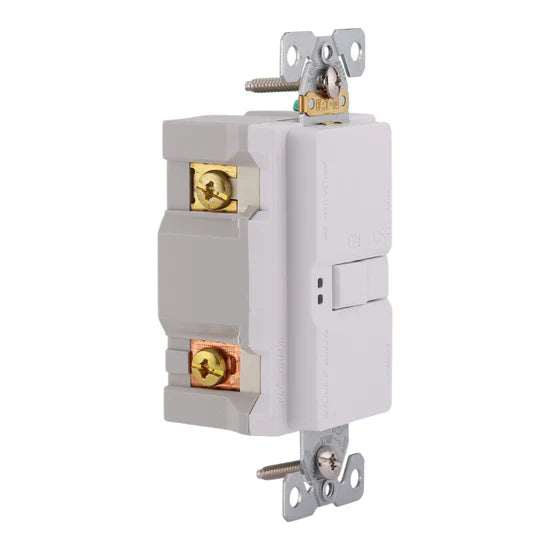

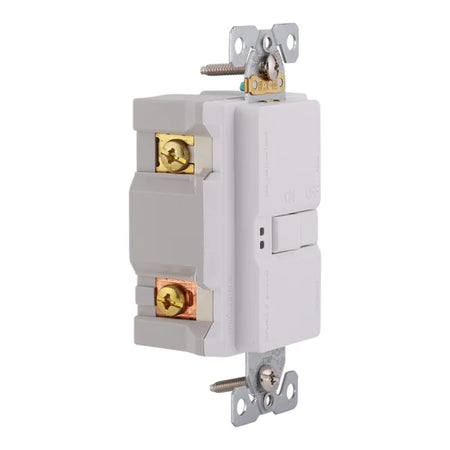

Eaton SGFD20W 20A 2P GFCI Receptacle – Blankface Self-Test – 125V

Eaton SGFD20W 20A 2P GFCI Receptacle – Blankface Self-Test – 125V provides dependable ground-fault protection for 125V circuits in residential and commercial applications. Featuring a blankface design for specification-grade installations, this Arrow Hart receptacle delivers 5 mA Class A protection, continuous self-testing, and versatile back-and-side wiring for easy installation. The durable PVC thermoplastic body and brass contacts ensure long-lasting performance.

Key Specifications:

• Device Type: Ground-Fault Circuit Interrupter (GFCI) Receptacle — Blankface, Self-Test
• Amperage: 20 Amps
• Poles: 2-Pole
• Voltage Rating: 125 Volts AC
• NEMA Configuration: 5-20R
• Mounting Method: Flush
• Wiring Method: Back and side wire
• Wire Size: #14–10 AWG
• Trip Sensitivity: 5 mA Class A

Features:

• Blankface specification-grade design
• Self-test functionality for continuous protection
• Durable PVC thermoplastic body
• Brass contacts
• White color finish

Certifications:

• cULus Listed

Product Data:

• Manufacturer: Eaton (Eaton Wiring Devices / Arrow Hart)
• Brand: Eaton
• Product Range: Arrow Hart Specification Grade GFCI Receptacles
• Model Number: SGFD20W
• UPC: 032664750069
• Dimensions:
• • Height: 4.751 in
  • Width: 2.97 in
  • Depth: 2.041 in
  • Weight: 0.36 lbs
  • Application: Residential, Commercial
  • Tightening Torque: 16 lb-in
