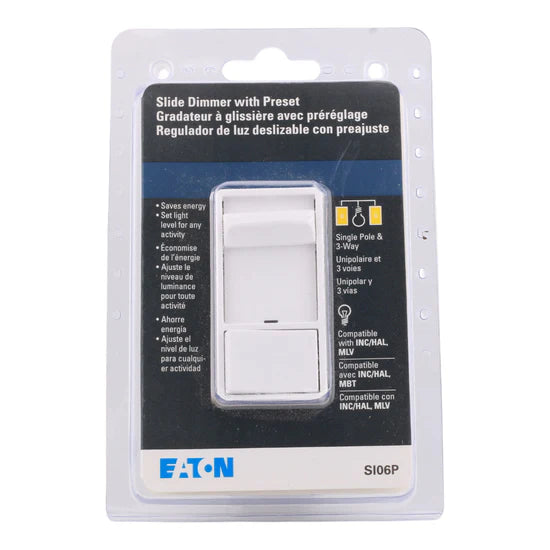

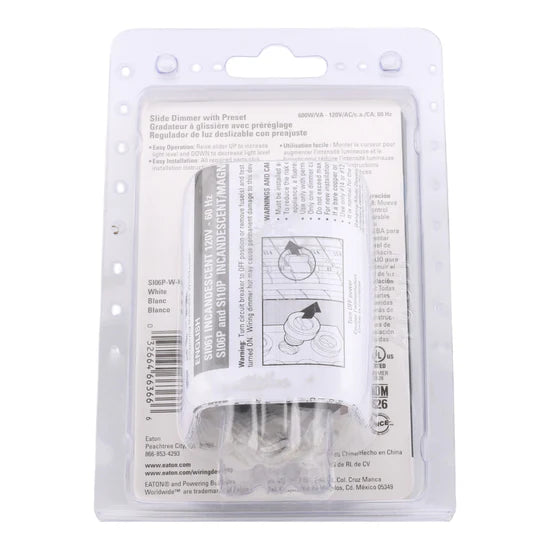

The Eaton SI06P-W-K 600W Slide Dimmer is designed for smooth and reliable lighting control in residential applications. Rated for 120V single-phase systems, this single-pole/three-way dimmer supports incandescent, halogen, magnetic low voltage (MLV), and compatible LED loads. Featuring a preset function and no neutral requirement, it offers convenient operation and easy installation. The white polycarbonate finish and flush-mount design provide a clean, modern appearance.
Voltage & Ratings
- Wattage Rating: 600 Watts
- Voltage Rating: 120 Volts AC
- Frequency: 60 Hz
- Phase: Single-Phase
Key Specifications
- Product Type: Slide Dimmer
- Switch Configuration: Single-Pole/Three-Way
- Mounting Method: Flush Mount
- Wiring Method: Back and Side Connections
- Load Compatibility: Incandescent, Halogen, Magnetic Low Voltage (MLV), LED
- Special Feature: No Neutral Required
- Action Type: Maintained
- Material: Polycarbonate
- Color: White
- Wire Size Compatibility: #14–12 AWG
- Torque Rating: 14 lbf-inch
Technical Specifications
- Preset dimming feature
- Compatible with multiple lighting load types
- Designed for residential lighting control applications
Product Data
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: SI06P-W-K
- UPC: 032664663666
Dimensions:
- Height: 4.3 in
- Width: 2.03 in
- Depth: 2.01 in
- Weight: 0.235 lbs
Certifications:
- cULus Listed
- NOM
