Eaton Cutler-Hammer

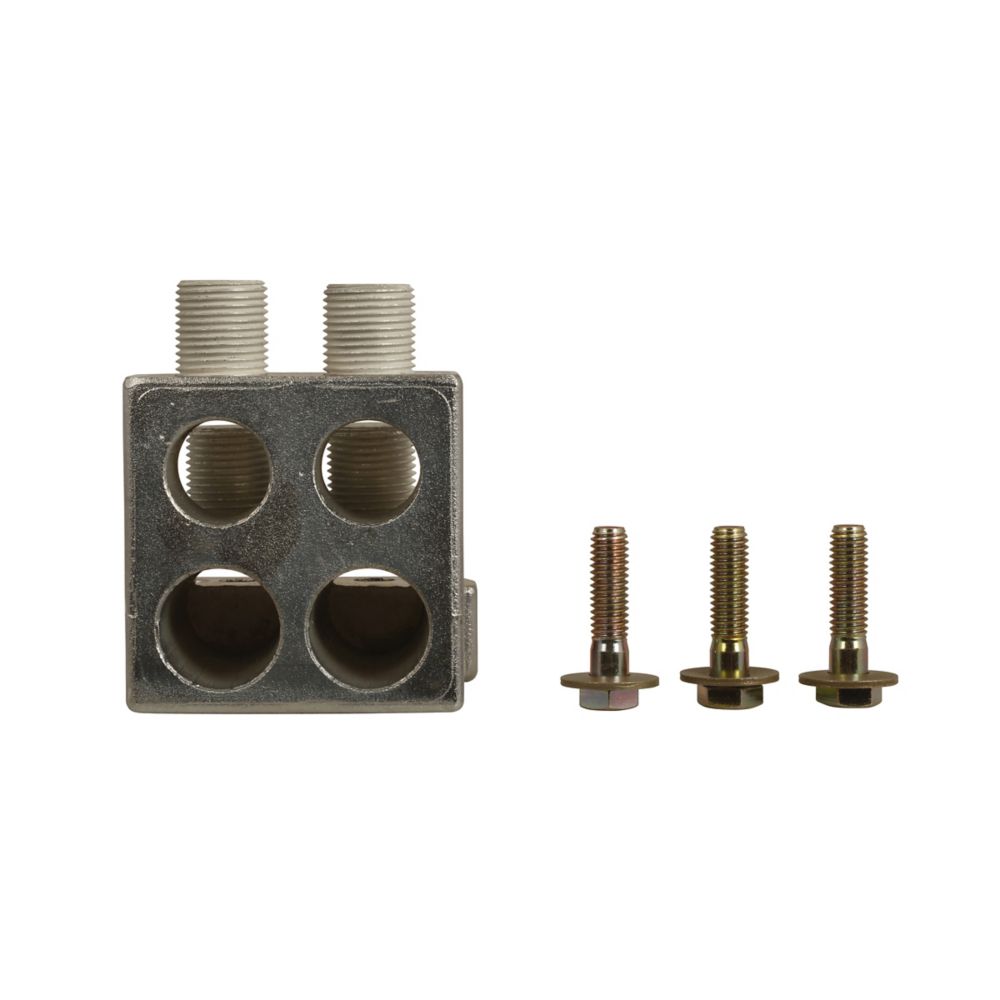

Eaton TA1600RD Molded Case Circuit Breaker Terminal Accessory – 1600A, R-Frame, Line & Load Terminals

In stock
SKU: TA1600RD GTIN/UPC: 786679420553
$219.80
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton TA1600RD terminal accessory is designed for use with Eaton Series G molded case circuit breakers, providing secure line and load connections for high-capacity power distribution systems. Engineered for R-frame applications, this terminal set supports large copper conductors and ensures reliable electrical and mechanical performance in demanding industrial environments. It is suitable for switchboards, panelboards, and heavy-duty distribution systems requiring 1600A connectivity.

Electrical Ratings

  • Current Rating: 1600A
  • Frame Size: Frame J-K
  • Series: Series G
  • Used With: R-frame

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: TA1600RD
  • Global Catalog Number: TA1600RD
  • Product Type: Molded case circuit breaker accessory
  • Accessory Type: Line and load terminals
  • Wire Size: (4) 500–1000 kcmil
  • Compliance: Contact manufacturer
  • Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first

Physical Details

  • Product Length/Depth: 6.2 in
  • Product Height: 4.8 in
  • Product Width: 4.2 in
  • Product Weight: 3.15 lb

Product Data

  • Application: High-capacity electrical power distribution and connection
  • Installation Use: Compatible Eaton Series G R-frame molded case circuit breakers
  • Function: Provides secure line and load termination for high-current conductors
  • System Compatibility: Eaton Series G molded case circuit breaker platforms
  • Safety Feature: Ensures strong electrical contact integrity and reduces risk of overheating or connection failure in heavy-duty systems
  • Type Circuit Breakers
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
