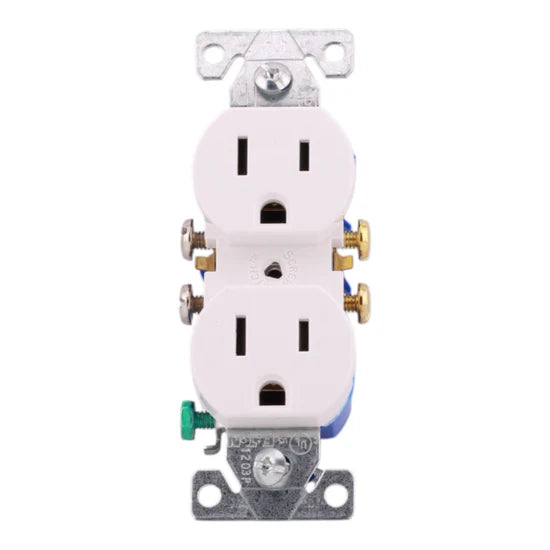

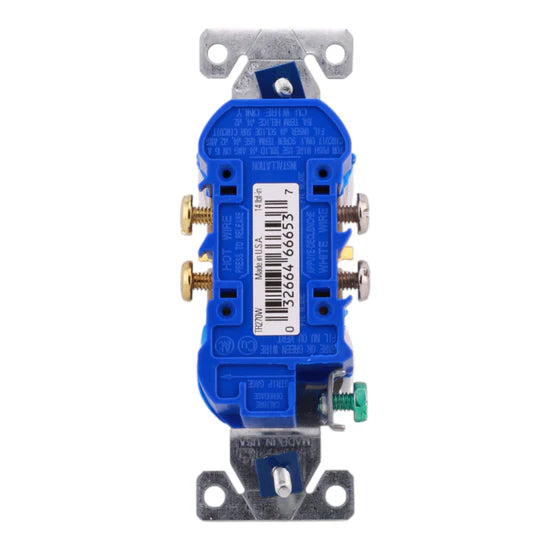

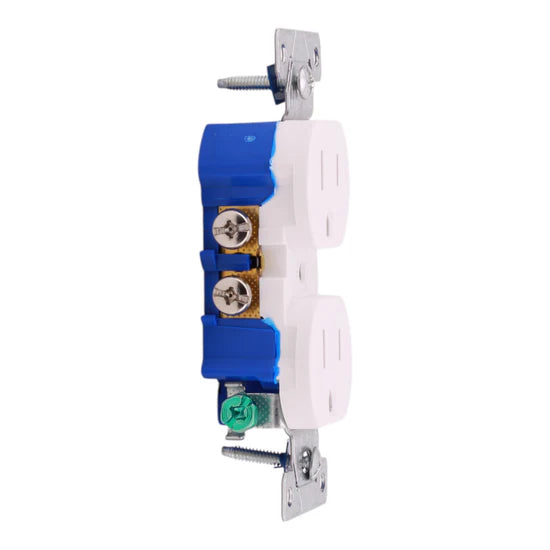

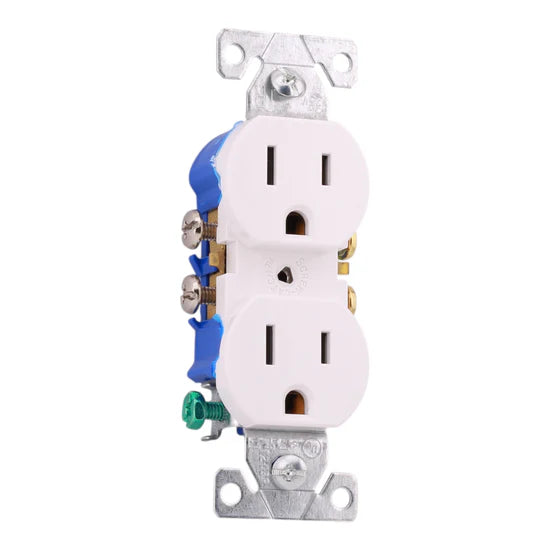

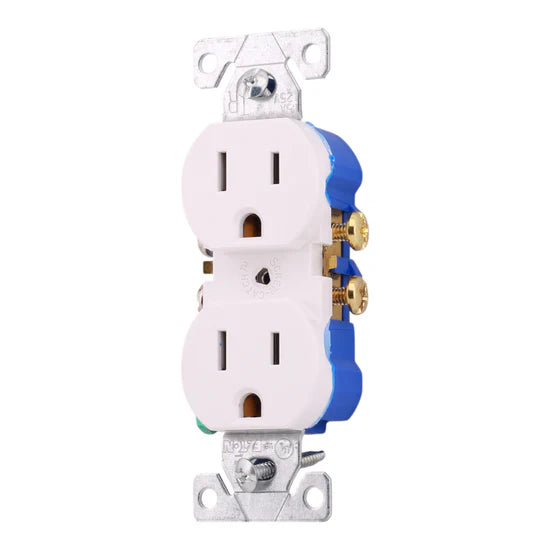

Eaton TR270W-BX-LW 15A 2-Pole Tamper Resistant Duplex Receptacle – Flush – 125V

The Eaton TR270W-BX-LW is a 15 Amp, 2-Pole tamper resistant duplex receptacle designed for dependable 125V power distribution in residential and commercial environments. Featuring side and push wiring with a durable thermoplastic construction, it ensures safe and efficient installation.

Voltage and Rating

• Amperage: 15 Amps
• Voltage: 125 Volts AC
• Poles: 2-Pole
• NEMA Configuration: 5-15R

Key Specifications

• Product Type: Duplex Receptacle
• Receptacle Type: Straight Blade
• Mounting Method: Flush
• Wiring Method: Side and Push
• Allowable Wire Size: #14–10 AWG (Copper or Copper Clad Aluminum)
• Tightening Torque: 14 lb-in
• Material: Impact-resistant thermoplastic face, PVC body
• Contact Material: Brass
• Features: Tamper Resistant

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Eaton Wiring Devices
• Model Number: TR270W-BX-LW
• UPC: 032664666537
• Color: White

Dimensions

• Height: 4.0 in
• Width: 0.79 in
• Depth: 1.24 in
• Weight: 0.13 lbs

Certifications

• cULus Listed
• NOM Certified
