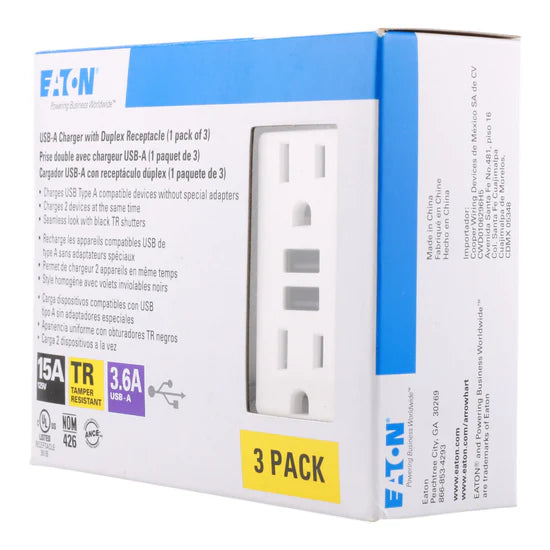

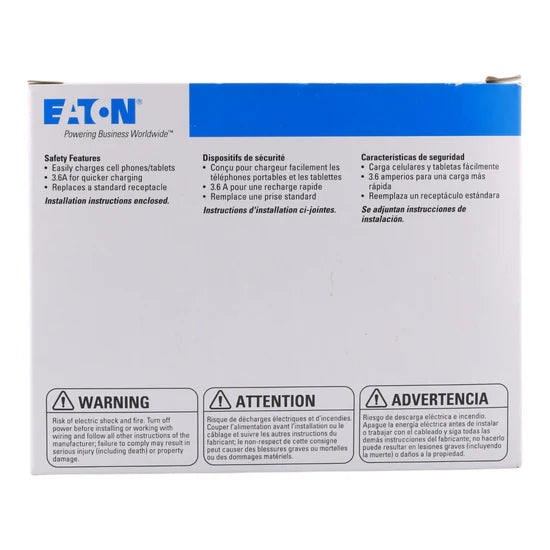

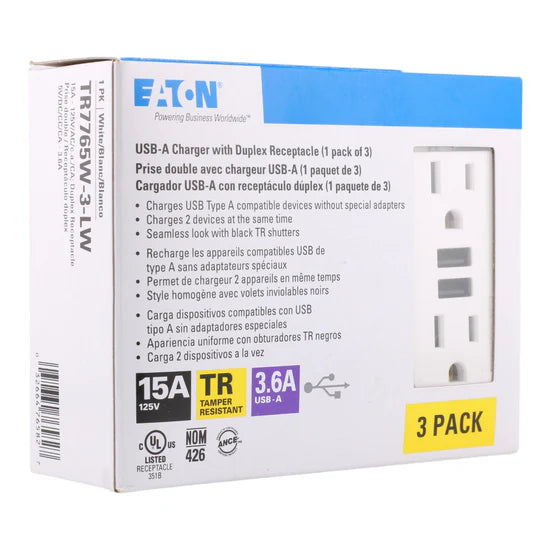

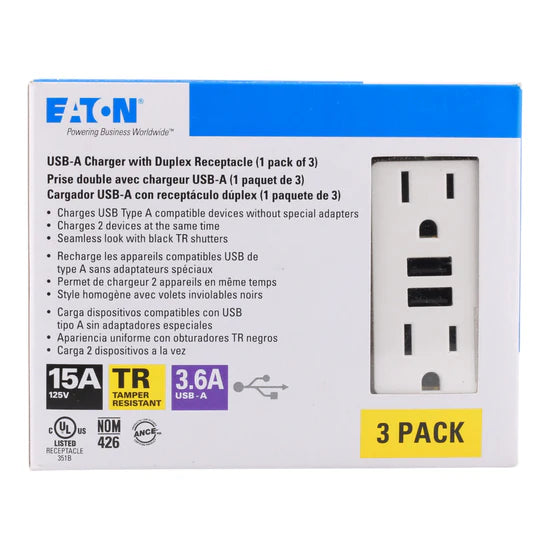

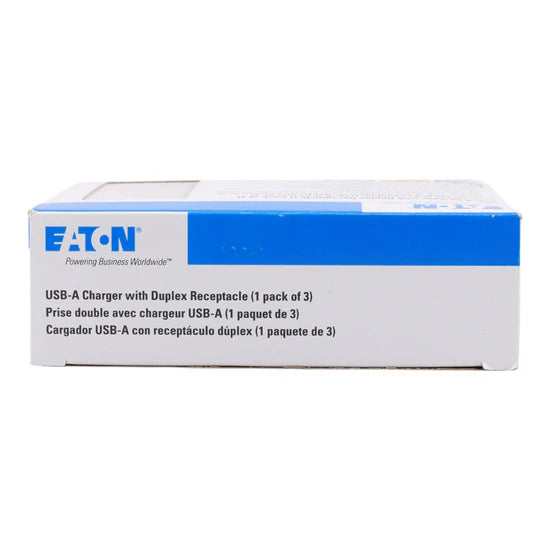

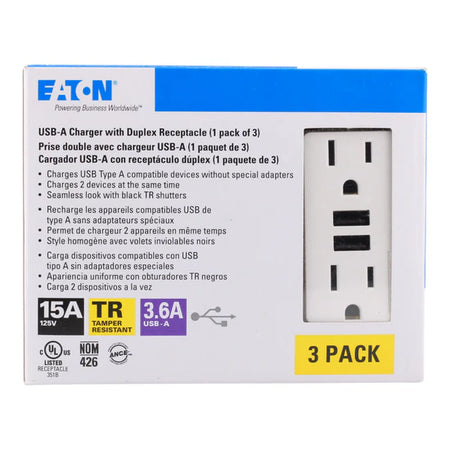

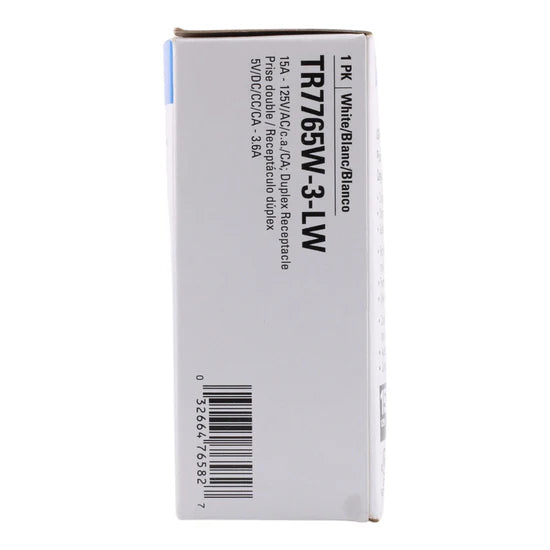

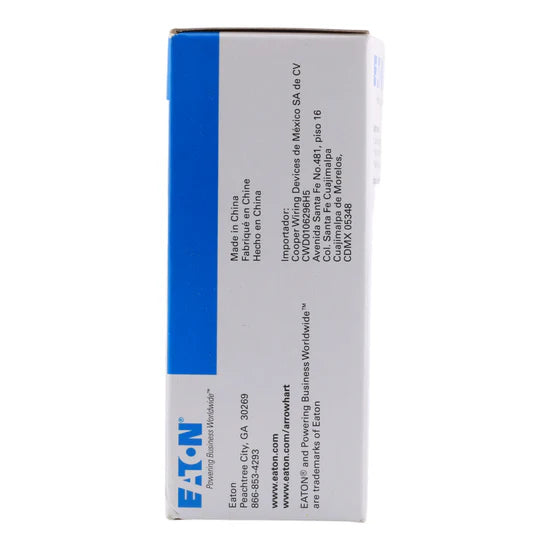

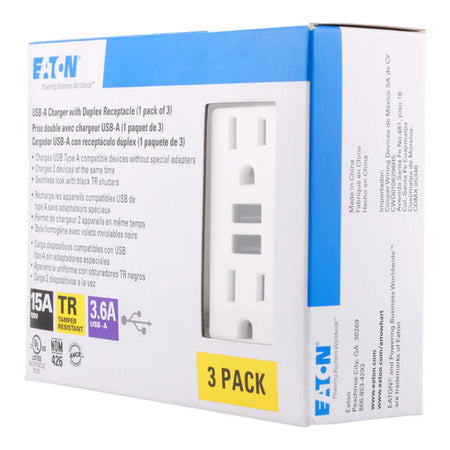

Eaton TR7765W-3-LW 15A 2-Pole USB Charger Duplex Receptacle – Flush Mount – 125V

The Eaton TR7765W-3-LW 15 Amp tamper-resistant duplex receptacle combines reliable AC power with convenient USB Type A charging in a decorator-style device. Designed with 2-pole, 3-wire grounding and delivering 3.6A USB output, it provides efficient charging for mobile devices while maintaining standard receptacle functionality. Its durable thermoplastic construction and brass contacts ensure long-term performance, while the flush-mount design offers a clean installation. Ideal for residential and commercial spaces, this device is cULus listed and NOM certified for dependable safety and performance.

Voltage and Rating

• Current Rating: 15 Amps
• Voltage Rating: 125 Volts AC
• USB Charging Capacity: 3.6A
• NEMA Configuration: 5-15R

Key Specifications

• Receptacle Type: Combination USB Charger with Tamper-Resistant Duplex Receptacle
• Number of Poles: 2-Pole, 3-Wire grounding
• USB Type: Type A
• Mounting Method: Flush
• Wiring Method: Screw terminals
• Allowable Wire Size: #12–14 AWG
• Style: Decorator
• Contact Material: Brass
• Material: Thermoplastic
• Features: Tamper-resistant shutters, integrated USB charging

Technical Specifications

• Torque Rating: 14 lbf-inch
• Device Construction: Duplex receptacle with USB charger
• Certifications: cULus Listed, NOM

Product Data

• Manufacturer: Eaton
• Brand: Eaton

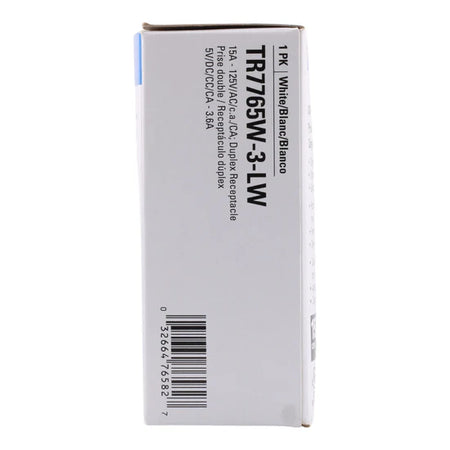

• Model Number: TR7765W-3-LW
• UPC: 032664765827
• Colors: White / Light Almond

Dimensions:

• • Height: 4.19 in
  • Width: 1.3 in
  • Depth: 1.4 in
  • Weight: 0.793 lb
