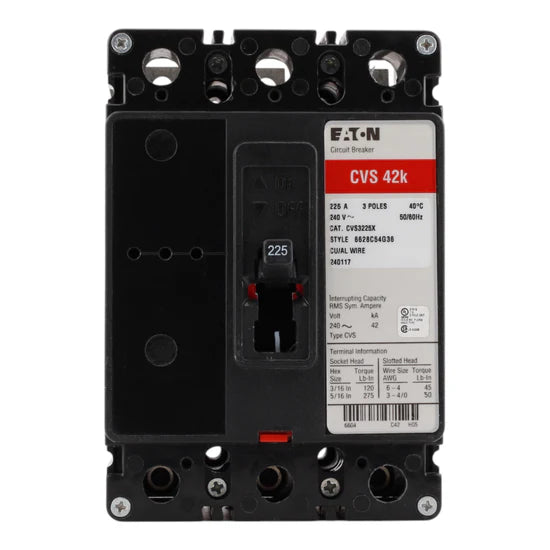

The Eaton CVS3225X is a 225 Amp, 3-Pole molded case circuit breaker designed for Eaton panelboards and switchboards. It provides robust protection for 240V commercial and industrial circuits, with a 42 kAIC interrupt rating and capability to accept #6–4/0 AWG Cu/Al conductors, ensuring reliable performance and safety.
Electrical Specifications
- Breaker Type: Molded Case Circuit Breaker
- Amperage: 225 Amps
- Poles: 3-Pole
- Voltage: 240 Volts AC
- Interrupt Rating: 42 kAIC
Mechanical & Mounting Specifications
- Mounting Mode: Bolt-On
- Connection Terminals: Line and load side terminals
- Wire Size Range: #6–4/0 AWG Cu/Al
- Tightening Torque: Not specified
Certifications
- UL Listed
- CSA Certified
Physical Dimensions
-
- Height: 5.0 in
- Width: 5.0 in
- Depth: 7.5 in
- Weight: 4.4 lbs
Key Features
- Reliable 225A, 3-Pole protection for 240V circuits
- High 42 kAIC interrupt rating for commercial and industrial applications
- Accepts #6–4/0 AWG Cu/Al conductors
- Bolt-on mounting for secure installation
- UL and CSA certified for compliance and safety
- Type Circuit Breakers
- Vendor Eaton
- Brand Eaton
