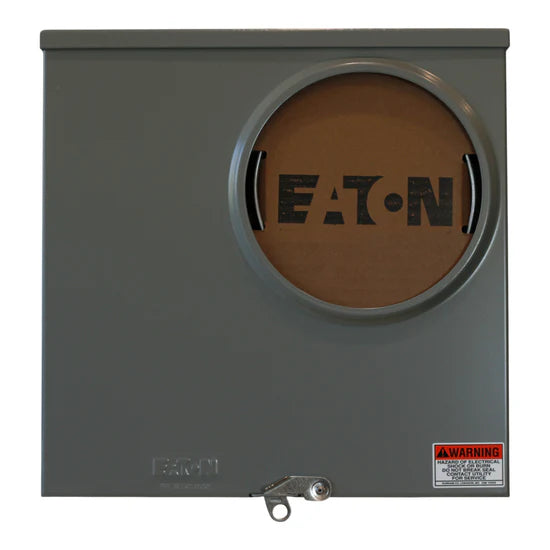

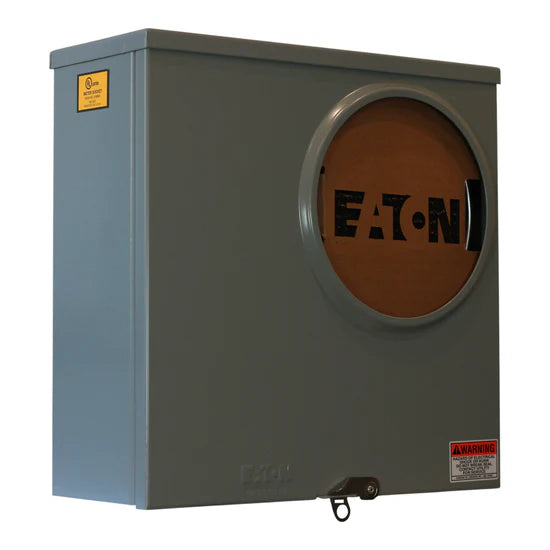

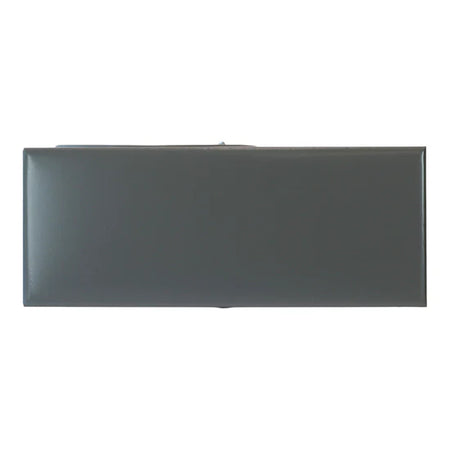

Eaton UTRS223ACH 200A 1-Position Meter Socket – Surface Mount – 600V

The Eaton UTRS223ACH is a durable 200A single-position residential meter socket designed for reliable utility metering in single-phase service applications. Featuring a 4-jaw configuration with ringless security, this unit supports both overhead and underground feed installations. Its solid top hub provision and side-wired design provide flexible installation, while the wide #8–350 kcmil line and load capacity ensures compatibility with a broad range of residential service conductors. UL listed and built for 600V systems, it delivers dependable performance across multiple utility territories.

Electrical Ratings:

• Amperage: 200 Amps
• Voltage Rating: 600 Vac
• Phase: Single-Phase
• Number of Wires: 3-Wire

Key Specifications:

• Product Type: Meter Socket
• Positions: 1-Position

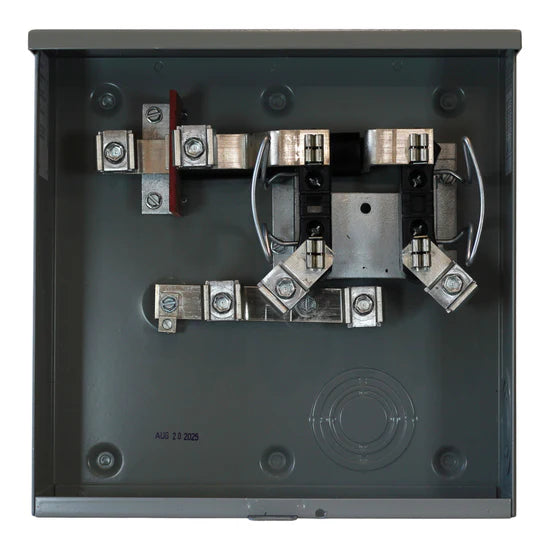

• Jaw Configuration: 4-Jaw
• Security: Ringless
• Feed Type: Bottom entry (overhead/underground compatible)

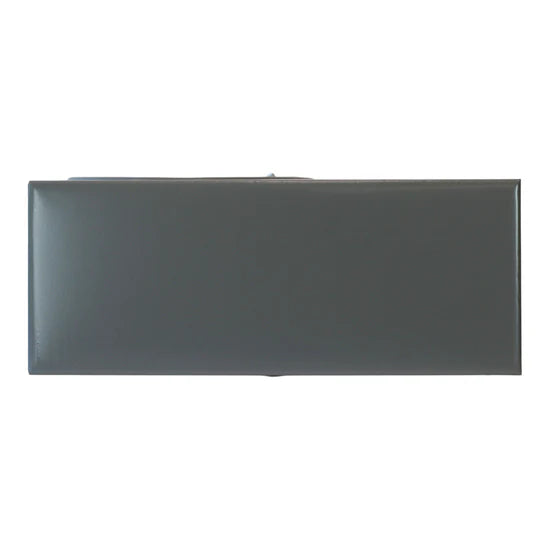

• Hub Type: Solid top (hub provision)

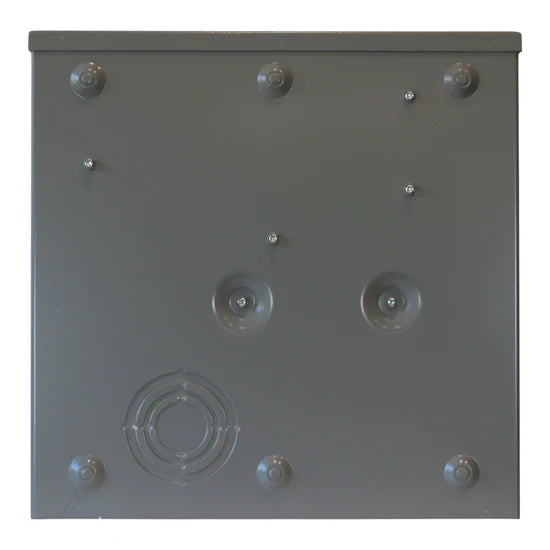

• Mounting: Surface mount
• Wiring: Side-wired

Wire Capacity:

• Line Wire Size: #8–350 kcmil Cu/Al
• Load Wire Size: #8–350 kcmil Cu/Al
• Ground Connection: #14–#2 Cu

Dimensions & Weight:

• • Height: 13 in
  • Width: 13 in
  • Depth: 4.94 in
  • Weight: 13 lbs

Certifications:

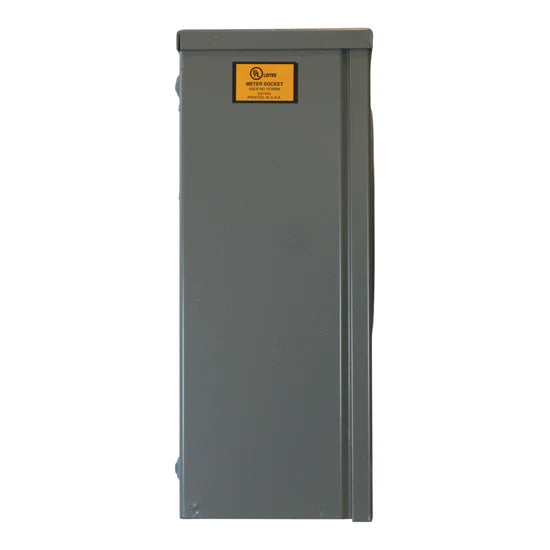

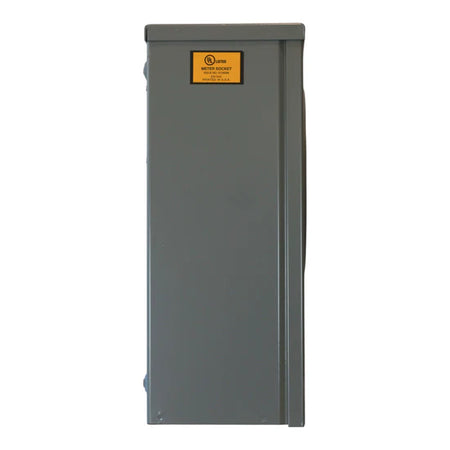

• UL Listed

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Residential Single-Position Meter Sockets

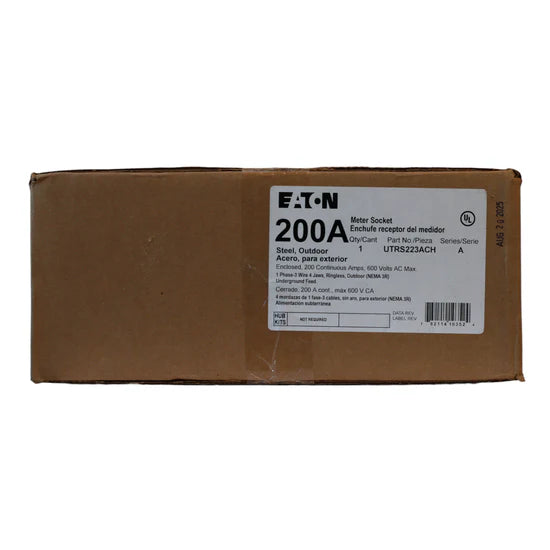

• Model Number: UTRS223ACH
• UPC: 782114103524
