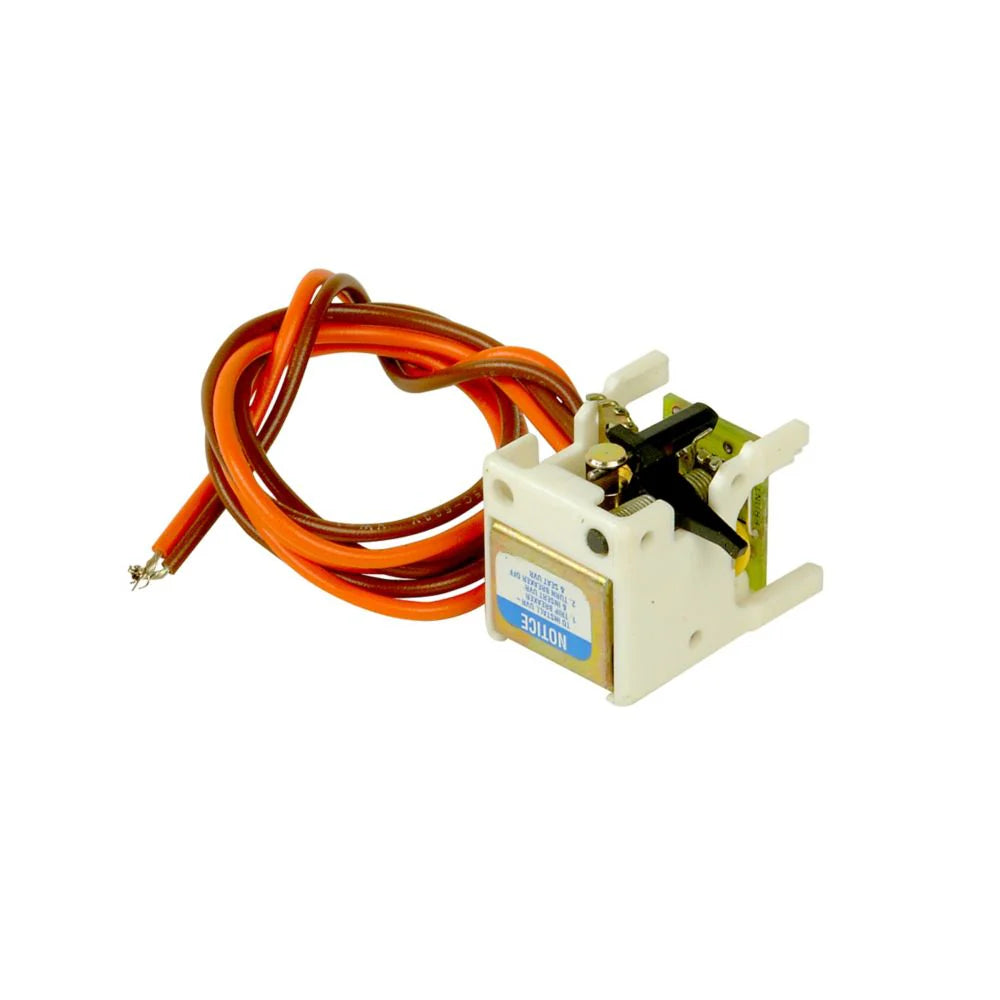

Eaton UVH1RP03K Undervoltage Release Mechanism – 24V, Series G, F-Frame, Right-Hand Mount
Couldn't load pickup availability
Ask an expert
The Eaton UVH1RP03K undervoltage release mechanism is a molded case circuit breaker accessory designed to automatically trip compatible Eaton Series G F-frame breakers when control voltage drops below a safe operating level. This helps ensure system protection by disconnecting power during undervoltage conditions, preventing equipment damage and maintaining electrical system stability. It is designed for field installation and features pigtail lead connections with right-hand mounting orientation.
Electrical Ratings
- Control Voltage: 24V
Key Specifications
- Manufacturer: Eaton Cutler-Hammer
- Part Number: UVH1RP03K
- Family: Series C
- Category: Circuit Breakers
- Type: UVH
- Series: Series G
- Frame Size: F Frame
- Mounting Type: Right-hand mounting
- Connection Type: Pigtail leads
- Certifications: CSA Approved
Physical Details
- Dimensions (H × W × D): 5.5 in × 2.9 in × 3.3 in
- Weight: 0.35 lb
Product Data
- Application: Undervoltage protection and automatic breaker tripping
- Installation Use: Compatible Eaton Series G F-frame molded case circuit breakers
- Function: Trips breaker when control voltage falls below safe level
- System Compatibility: Eaton Series G breaker platforms
- Safety Feature: Protects electrical systems and equipment from undervoltage-related faults and instability
- Type Undervoltage Release
- Vendor Eaton Cutler-Hammer
- Brand Eaton
