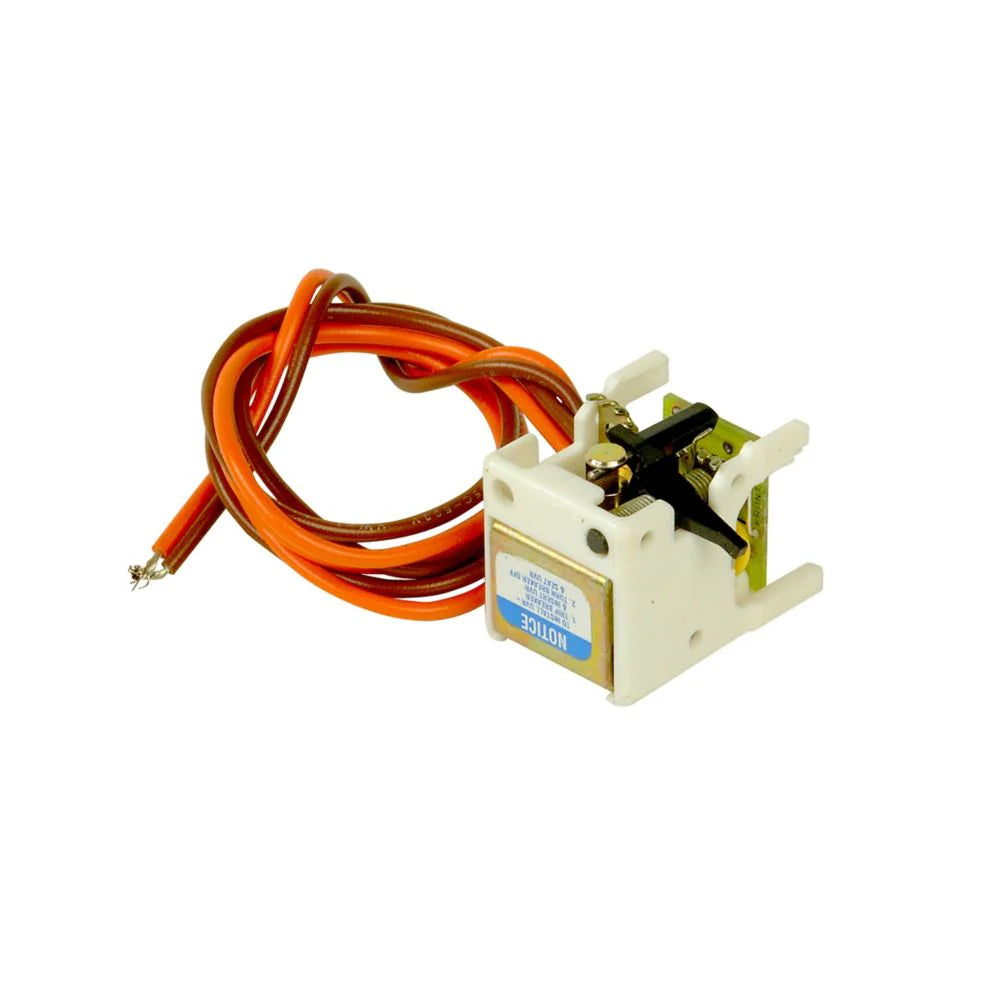

Eaton UVH1RP11K Undervoltage Release Mechanism – 208–240V, Series C/G, F-Frame, Right-Hand Mount

The Eaton UVH1RP11K undervoltage release mechanism is a molded case circuit breaker accessory designed to automatically trip compatible Eaton F-frame breakers when control voltage drops below a safe operating level. This enhances system protection by ensuring immediate disconnection during undervoltage conditions, helping prevent equipment damage and unstable operation. It is designed for field installation and features pigtail lead connections with right-hand mounting for integration into compatible breaker assemblies.

Electrical Ratings

• Control Voltage: 208–240V

Key Specifications

• Manufacturer: Eaton Cutler-Hammer
• Part Number: UVH1RP11K
• Family: Series G (Series C compatible listing noted)
• Category: Bus Plugs
• Type: Field mounted undervoltage release mechanism
• Frame Size: Frame F
• Mounting Method: Right-hand mounting
• Connection Type: Pigtail leads
• Certifications: CSA Approved

Compatible Frames

• F-frame molded case circuit breakers

Physical Details

• Dimensions (H × W × D): 5.5 in × 3.1 in × 3.2 in
• Weight: 0.35 lb

Product Data

• Application: Undervoltage protection and automatic breaker tripping
• Installation Use: Compatible Eaton F-frame molded case circuit breakers
• Function: Trips breaker when control voltage falls below safe threshold
• System Compatibility: Eaton molded case circuit breaker platforms
