Eaton UVH5LP03K Undervoltage Release Mechanism – 24V, Series G, N-Frame Compatible
Couldn't load pickup availability
Ask an expert

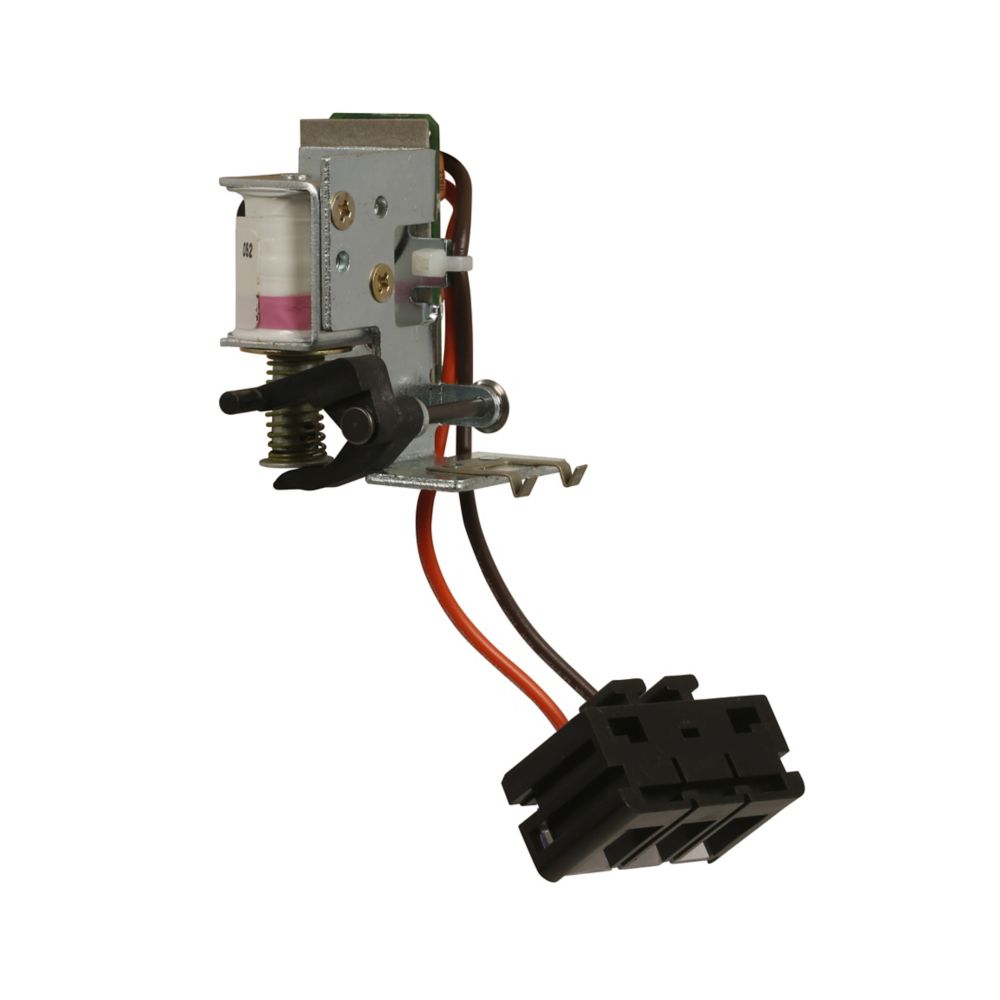

The Eaton UVH5LP03K undervoltage release mechanism is a molded case circuit breaker accessory designed to provide automatic tripping when control voltage drops below a safe operating level. This ensures enhanced electrical system protection by disconnecting the circuit during undervoltage conditions, helping prevent equipment damage and unstable operation. It is intended for use with Eaton Series G N-frame breakers and features pigtail lead connections for straightforward field installation.
Electrical Ratings
- Control Voltage: 24V
Key Specifications
- Manufacturer: Eaton
- Catalog Number: UVH5LP03K
- Global Catalog Number: UVH5LP03K
- Product Type: Molded case circuit breaker accessory
- Accessory Type: Undervoltage release mechanism
- Series: Series G
- Frame Size: Frame J-K
- Used With: N-frame
- Connection Type: Pigtail leads
- Compliance: Contact manufacturer
- Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first
Physical Details
- Product Length/Depth: 5.5 in
- Product Height: 3 in
- Product Width: 2.9 in
- Product Weight: 0.5 lb
Product Data
- Application: Undervoltage protection and automatic breaker tripping
- Installation Use: Compatible Eaton Series G N-frame molded case circuit breakers
- Function: Trips breaker when control voltage drops below safe threshold
- System Compatibility: Eaton Series G molded case circuit breaker platforms
- Safety Feature: Protects electrical systems and equipment by preventing operation under undervoltage conditions
- Type Undervoltage Release
- Vendor Eaton Cutler-Hammer
- Brand Eaton
