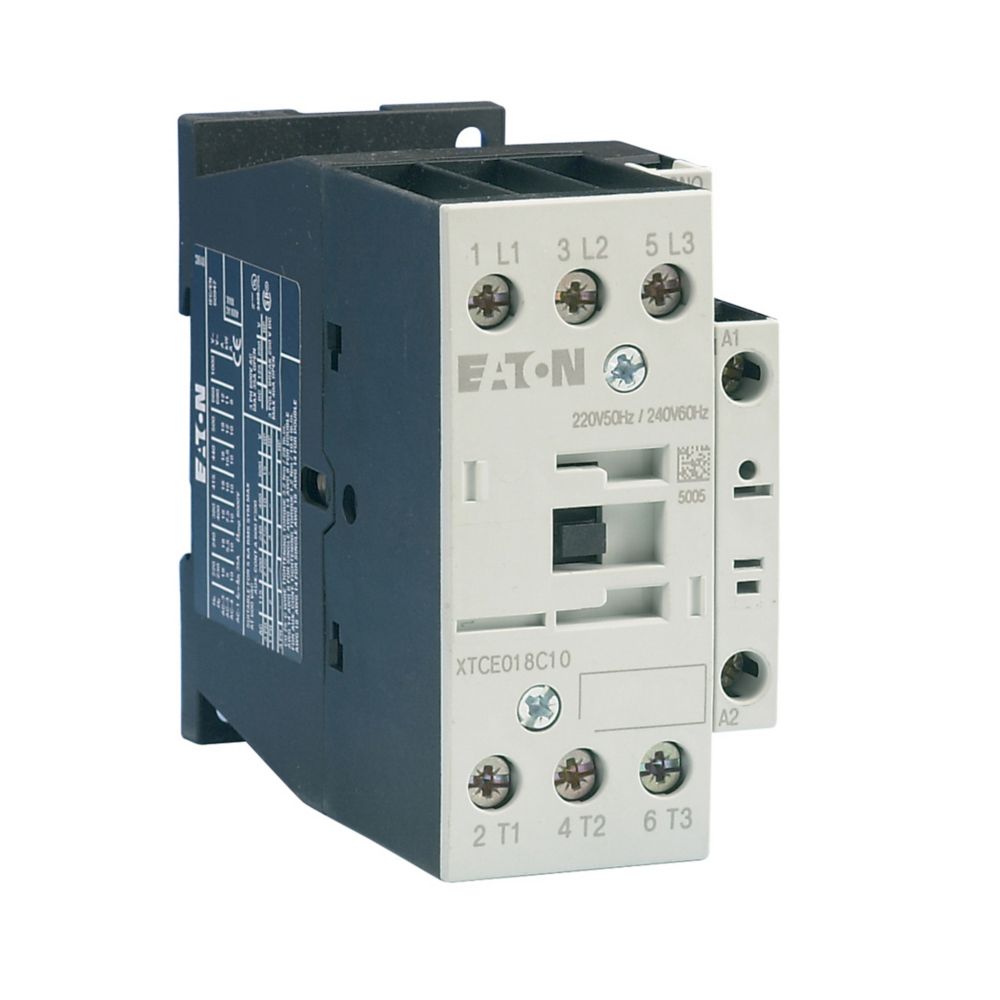

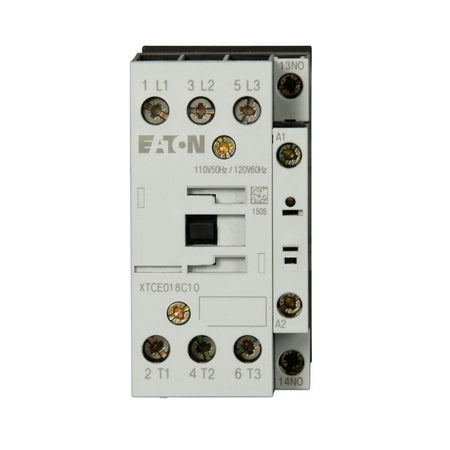

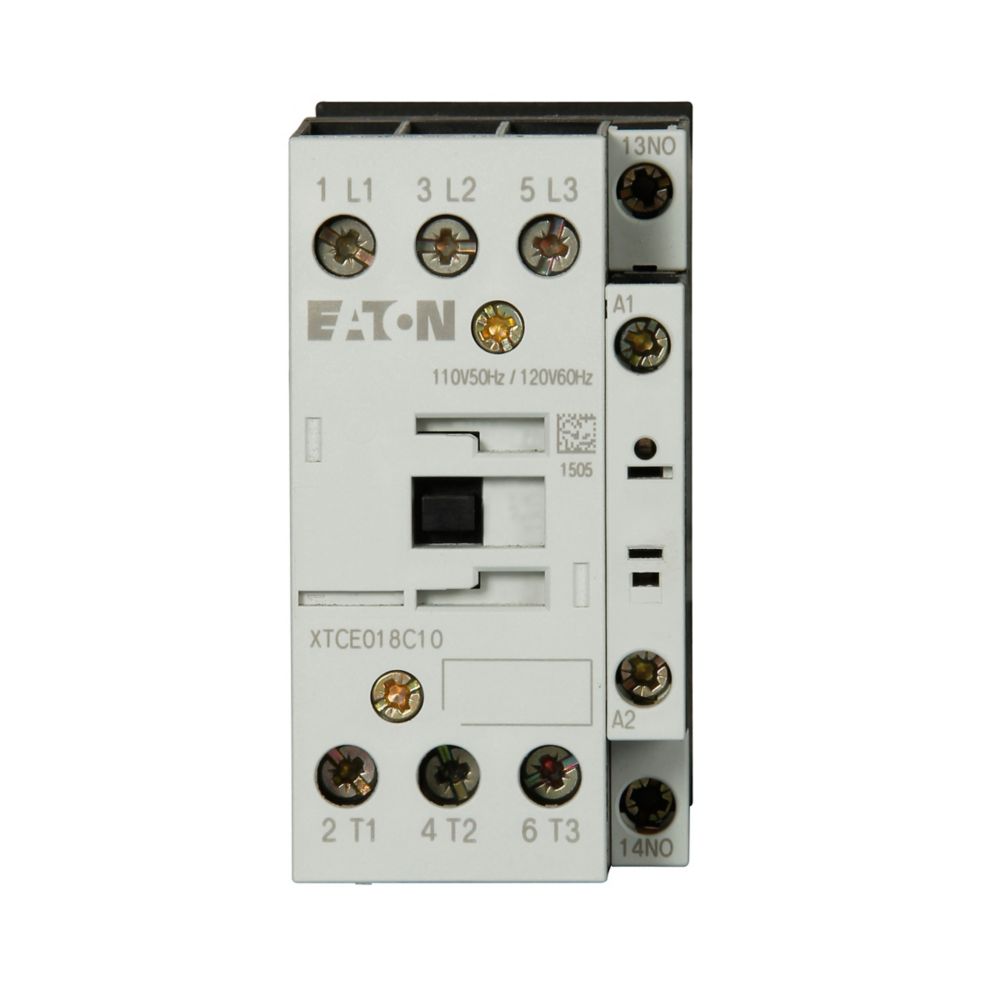

Eaton XTCE018C10E IEC Contactor – 18A, 3-Pole, 208V Coil, 45 mm Frame, Non-Reversing

The Eaton XTCE018C10E is an IEC-rated XT Series contactor designed for reliable switching of electrical loads in industrial and commercial motor control applications. It operates as a full voltage non-reversing contactor, providing dependable performance for motor starting and load switching tasks. Its compact 45 mm frame design makes it suitable for efficient installation in control panels where space and standardized IEC components are required.

Electrical Ratings

• Continuous Current Rating: 18 A
• Amperage Rating: 18 A
• Coil Voltage: 208 Vac (60 Hz)
• Frequency Rating: 60 Hz
• HP Rating (Max):
  • 2 HP (115 V, 1-phase)
  • 3 HP (200–230 V, 1-phase)
  • 5 HP (200–230 V, 3-phase)
  • 15 HP (460–575 V, 3-phase)

Key Specifications

• Manufacturer: Eaton
• Catalog Number: XTCE018C10E
• EAN: 4015082769987
• Product Type: Contactor
• Series: XT IEC
• Frame Size: 45 mm
• Operation Type: Non-reversing
• Number of Poles: Three-pole
• Contact Configuration: 1 NO
• Terminals: Screw terminals
• Compliance: CE Marked, RoHS Compliant
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947

Physical Details

• Product Length/Depth: 3.43 in
• Product Height: 3.90 in
• Product Width: 1.85 in
• Product Weight: 0.9 lb

Product Data

• Application: Motor control and electrical load switching
• Installation Use: Industrial control panels and motor starters
• Function: Provides full voltage non-reversing switching for motors and electrical loads
• System Compatibility: Eaton XT IEC contactor systems
• Safety Feature: Ensures reliable switching performance under IEC-compliant standards
