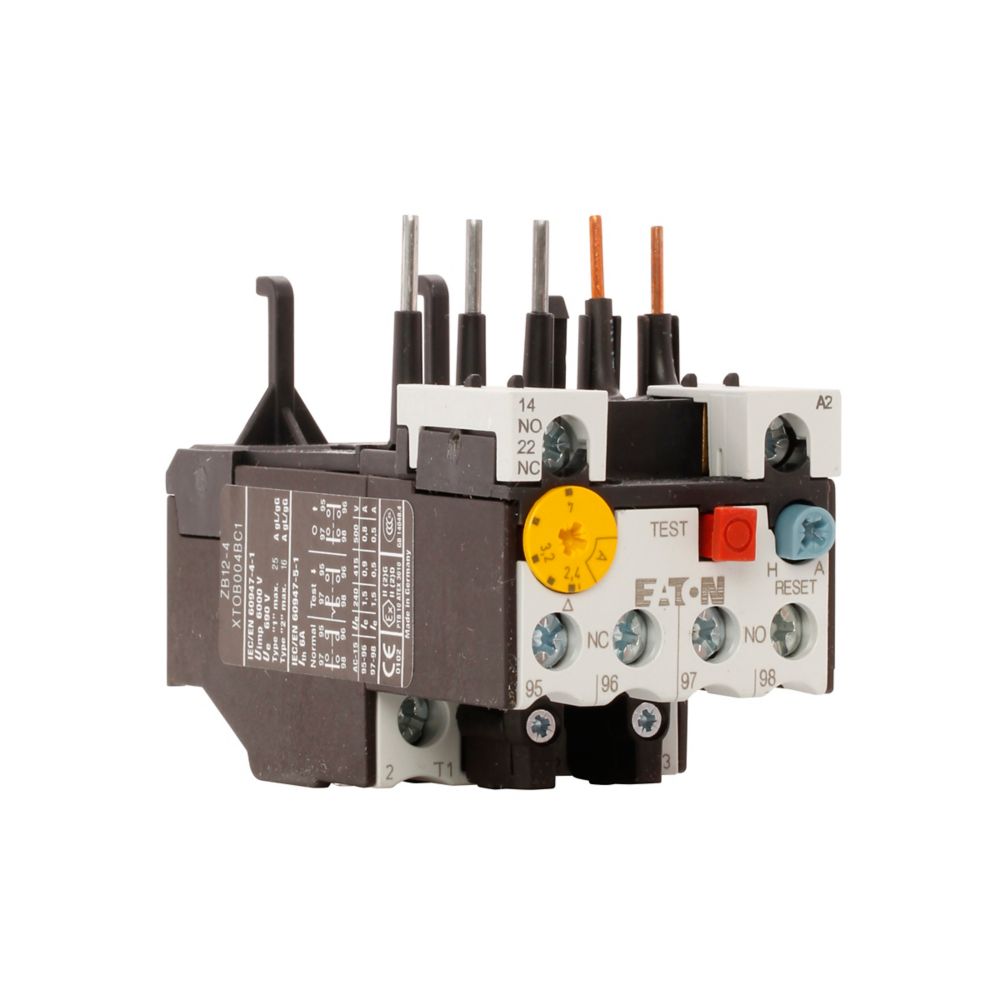

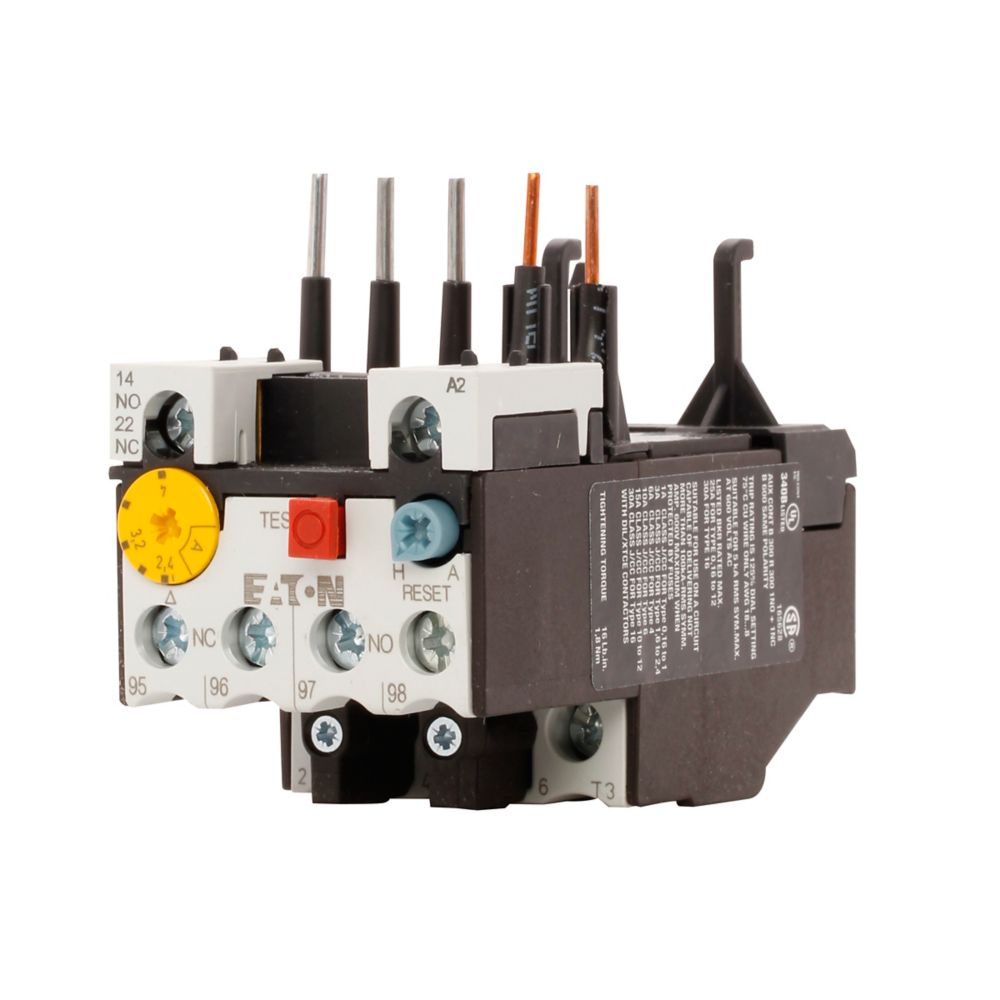

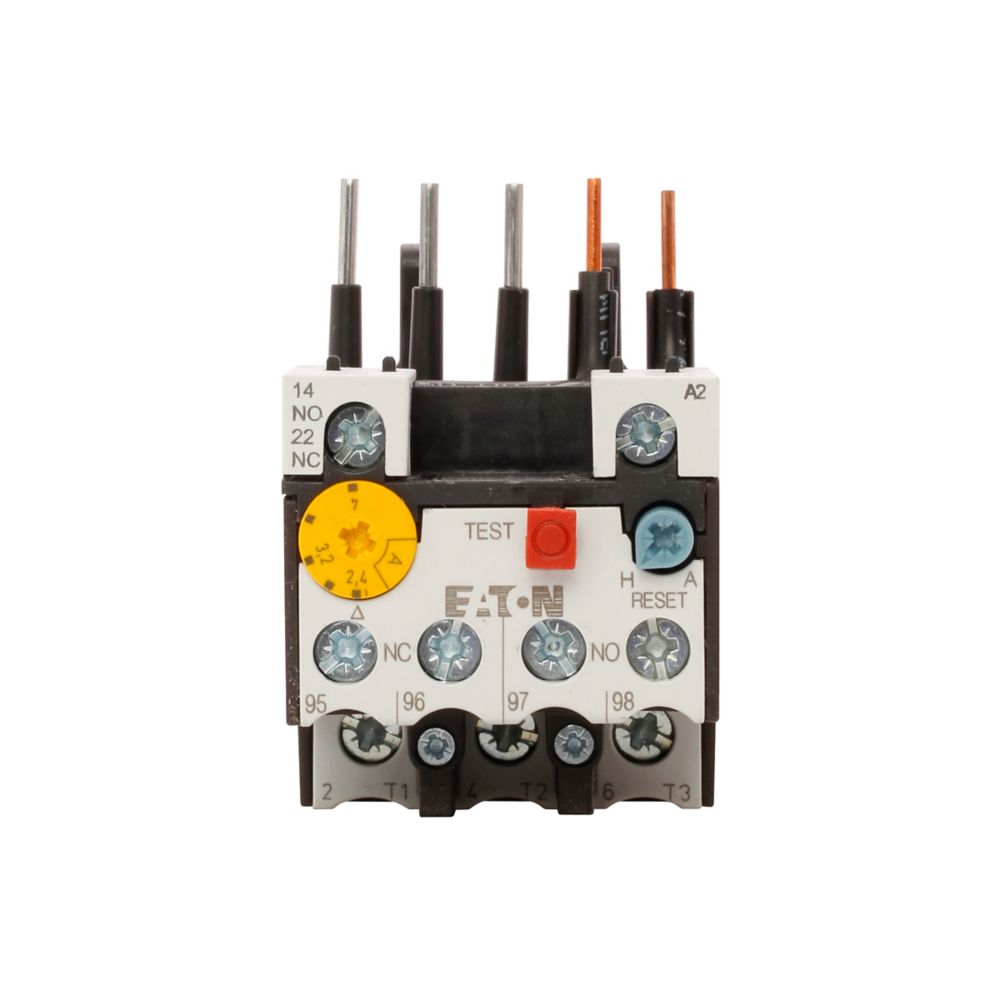

Eaton XTOB010CC1 XT IEC Bimetallic Overload Relay – 6–10A, Direct Mount, 45 mm Frame

The Eaton XTOB010CC1 is an XT IEC series bimetallic overload relay designed to provide reliable thermal overload protection for motors in industrial motor control systems. Engineered for direct mounting with compatible Eaton contactors, this overload relay helps safeguard motors from overheating and overcurrent conditions. Its adjustable overload range and compact 45 mm frame make it suitable for motor starters and control panel applications.

Electrical Ratings

• Overload Range: 6–10 A
• Trip Class: 10 A
• Contact Configuration: 1 NO, 1 NC

Key Specifications

• Manufacturer: Eaton
• Catalog Number: XTOB010CC1
• EAN: 4015082784515
• Product Type: Bimetallic overload relay
• Series: XT IEC
• Type: XT IEC Bimetallic Overload Relay
• Frame Size: 45 mm
• Mounting Type: Direct mounting
• Used With: 18–32A contactors

Compliance and Certifications

• CE Marked
• ATEX Compliant
• RoHS Compliant
• UL Listed
• CSA Certified
• IEC 60947
• EN 60947

Physical Details

• Product Length/Depth: 3.27 in
• Product Height: 1.89 in
• Product Width: 1.77 in
• Product Weight: 0.3 lb

Product Data

• Application: Motor overload protection
• Installation Use: Industrial motor starters and control panels
• Function: Protects motors from overload and overheating conditions
• System Compatibility: Eaton XT IEC contactors and motor control systems
• Special Features: Suitable for protection of EEx e-motors; compatible with direct device mounting per manufacturer fuse limitations
