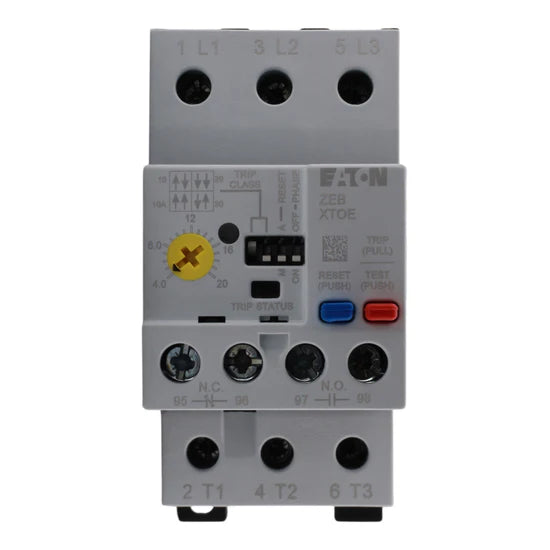

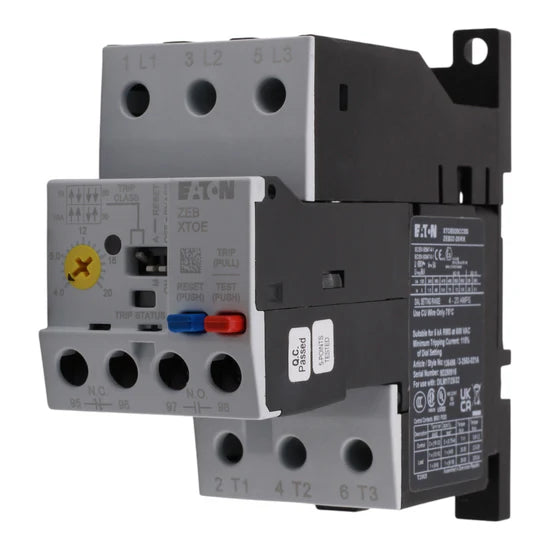

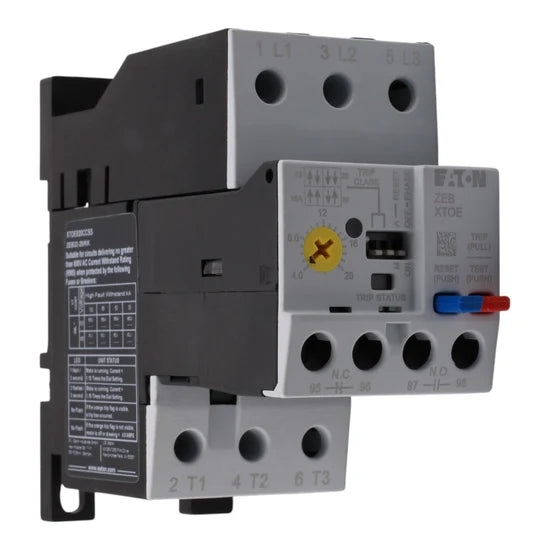

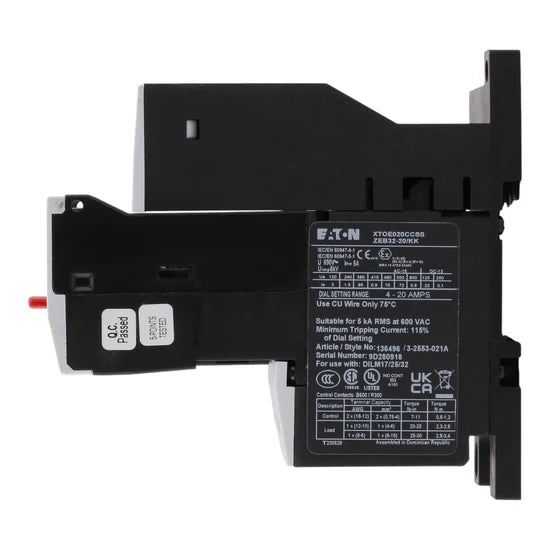

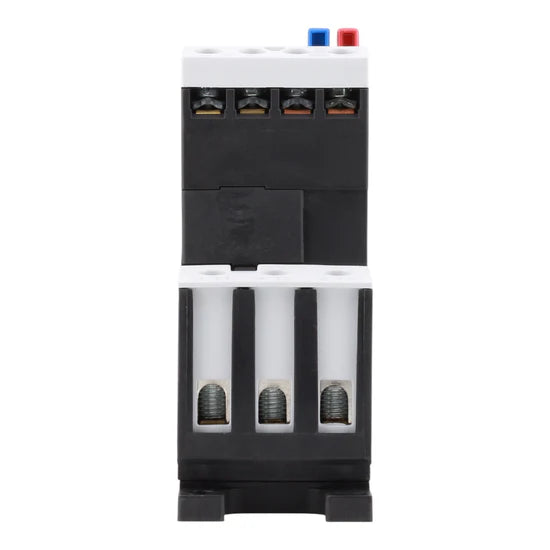

Eaton XTOE020CCSS 4-20A Electronic Overload Relay – Separate Mount – 45mm

The Eaton XTOE020CCSS is a 4–20 Amp electronic overload relay designed for C440 motor control applications. With selectable trip classes (10A, 10, 20, 30) and a 45mm compact frame, it provides precise overload protection for motors of various sizes. Designed for separate mounting, it ensures safe, flexible integration into Eaton motor control systems in industrial environments.

Electrical Specifications

• Overload Range: 4–20 Amps
• Trip Type: Selectable 10A, Class 10, 20, 30

Mechanical & Mounting Specifications

• Frame Size: 45 mm
• Mounting Method: Separate mounting
• Dimensions: Height: 6.5 in; Width: 1.8 in; Depth: 4.32 in
• Weight: 0.87 lbs

Certifications & Compliance

• CSA Certified
• UL Listed

Key Features

• Reliable 4–20A overload protection for motors
• Selectable trip classes for flexible motor protection
• Compact 45mm frame for space-efficient installation
• Separate mounting for flexible integration with motor control systems
• CSA and UL listed for industrial safety and compliance
