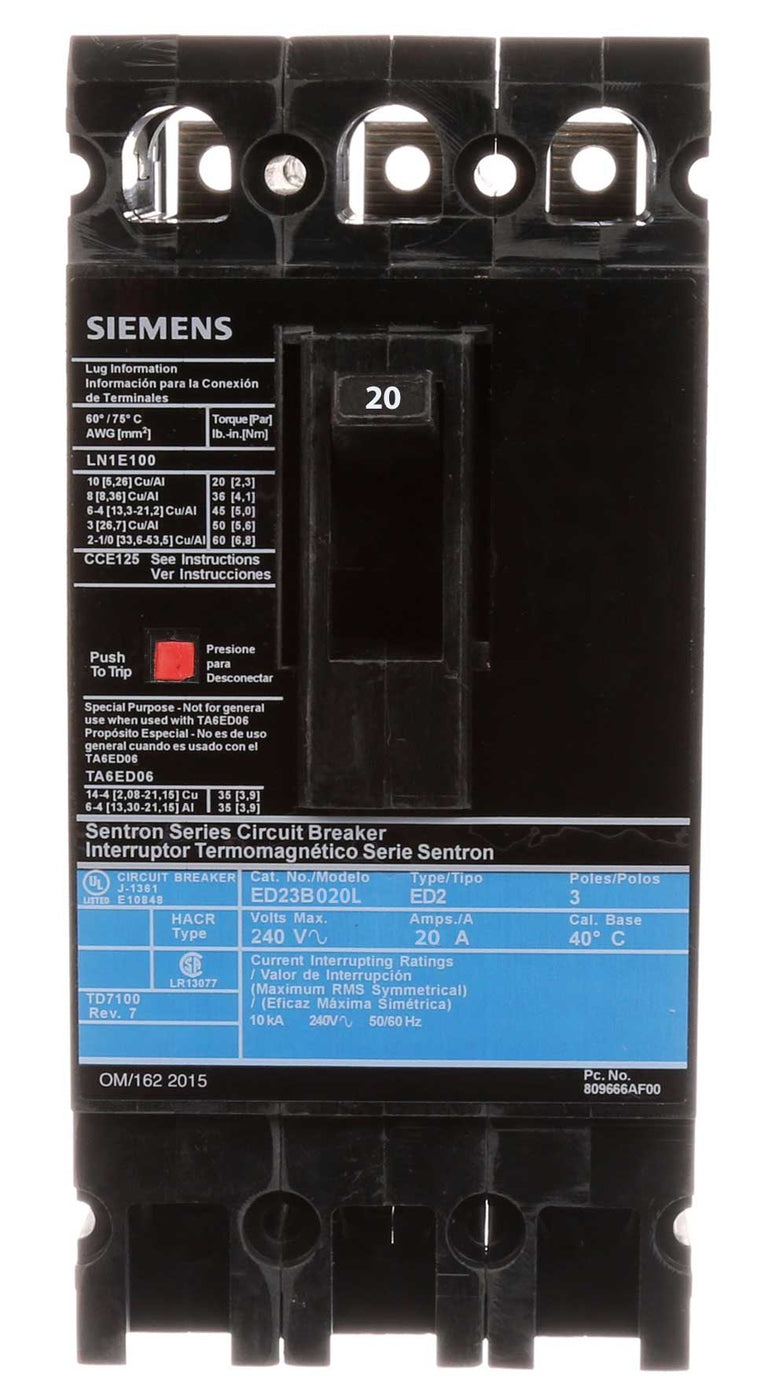

Siemens ED23B020L 20 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 10 kA@240 V – Feed-Thru – SENTRON Series

The Siemens ED23B020L is a 20 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type ED. Rated for 240 V, it provides a 10 kA interrupting rating at 240 V and features thermal-magnetic overcurrent protection with LI (Long-Time and Instantaneous) trip functions. The breaker is designed for feed-thru applications and includes line and load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: ED
• Catalog Number / MPN: ED23B020L
• Primary Rating: 20 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 10 kA@240 V
• Interrupting Capacity: Standard
• Calibration Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED23B020L
• Series: SENTRON
• Type: ED
• Current Rating: 20 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 783643003071

Compatibility

The Siemens ED23B020L is intended for compatible Siemens SENTRON Type ED electrical distribution equipment supporting its voltage, current rating, and feed-thru connection configuration.
