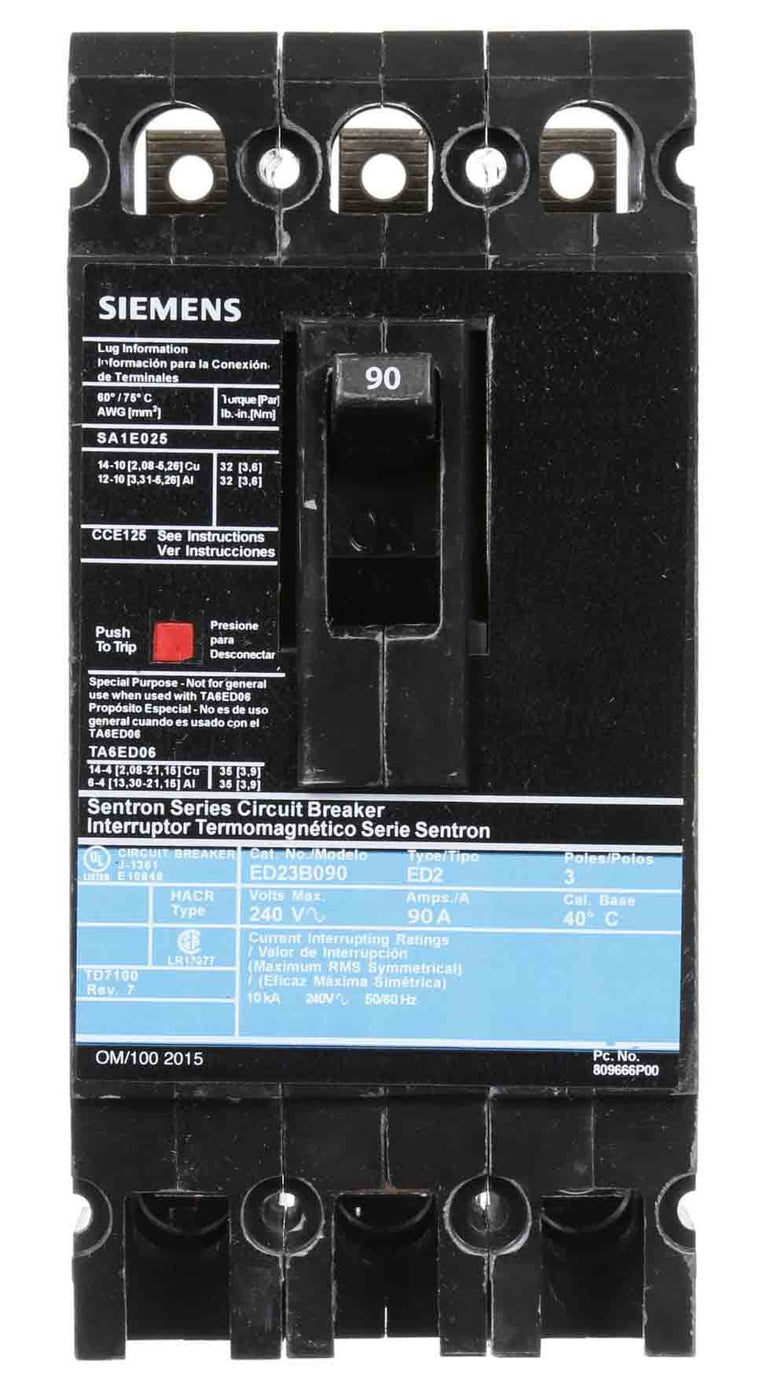

Siemens ED23B090 90 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 10 kA@240 V – Thermal-Magnetic – Standard Interrupting Capacity – Sentron ED Frame

The Siemens ED23B090 is a 90 Amp, 3-pole low-voltage molded case circuit breaker from the Siemens Sentron Series, ED Frame. It features a thermal-magnetic trip unit designed to provide overload and short-circuit protection in electrical distribution systems.

The breaker provides a 10 kA interrupting rating at 240 V, with standard breaking capacity. It is calibrated at 40°C and meets UL 489 and IEC 60947-2 standards for low-voltage circuit breakers.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: Sentron
• Frame: ED
• Catalog Number / MPN: ED23B090
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• Voltage: 240 V
• Interrupting Rating: 10 kA @ 240 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Calibration Temperature: 40°C
• Application: Low-Voltage Electrical Distribution
• Protection: Overload and Short-Circuit
• Applicable Standards: UL 489 / IEC 60947-2

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED23B090
• Series: Sentron
• Frame: ED
• Current Rating: 90 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Interrupting Capacity Classification: Standard
• Trip Unit: Thermal-Magnetic
• Calibration: 40°C
• UPC:783643209077

Compatibility

The Siemens ED23B090 is intended for compatible Siemens Sentron Series low-voltage electrical distribution equipment supporting ED Frame, 90 Amp, 3-pole molded case circuit breakers.

Certifications

• UL 489 – Meets UL 489 Standard
• IEC 60947-2 – Meets IEC 60947-2 Standard
