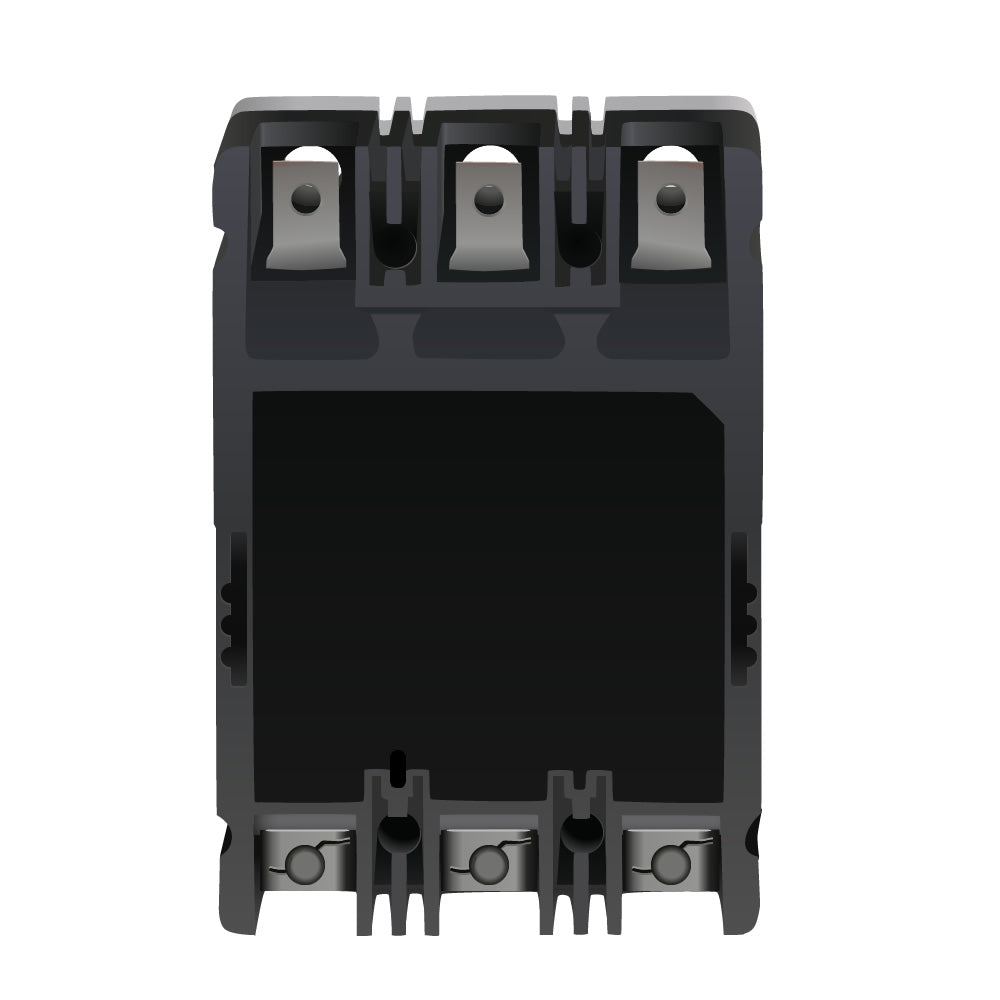

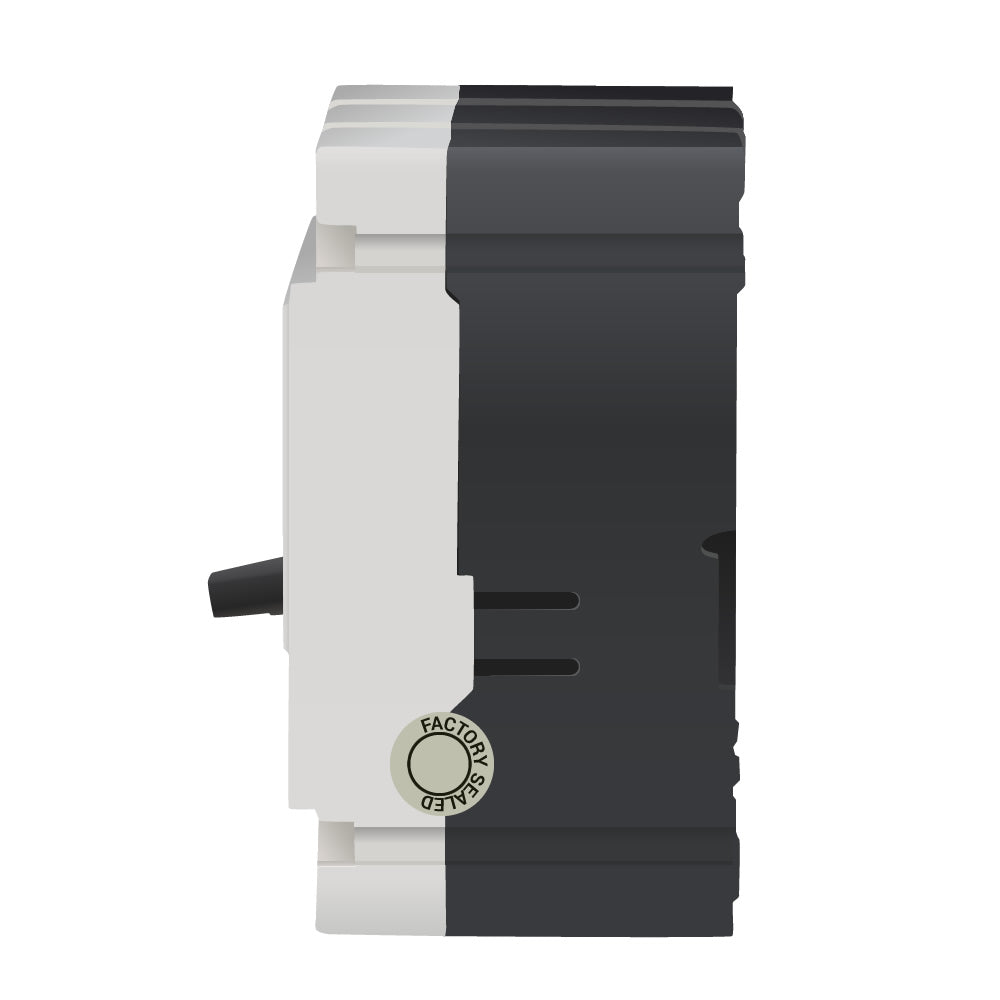

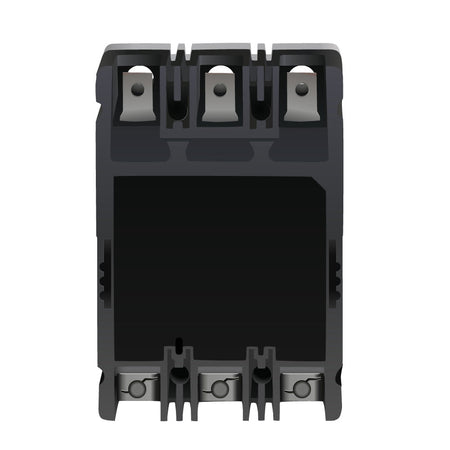

Eaton ED3150 Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 240V – 35kA @ 480V – Feed-Thru – Series C ED

The Eaton ED3150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer / Westinghouse Series C Type ED. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The ED3150 is rated for 240V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration with line-side and load-side lug terminals and is rated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: ED
• Catalog No.: ED3150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED3150
• Catalog Number: ED3150
• Model: ED3150
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: ED
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• UPC:783164069020

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type ED electrical distribution equipment that accepts ED Series molded case circuit breakers. The ED3150 provides 150A, 3-pole thermal-magnetic overcurrent protection for compatible electrical distribution applications.

The supplied information lists a 240V voltage rating while specifying a 35kA interrupting rating at 480V. Always verify the manufacturer's rating table and the specific panelboard or electrical equipment model before installation. Also verify the approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements.

Certifications:

• No specific certification information provided
