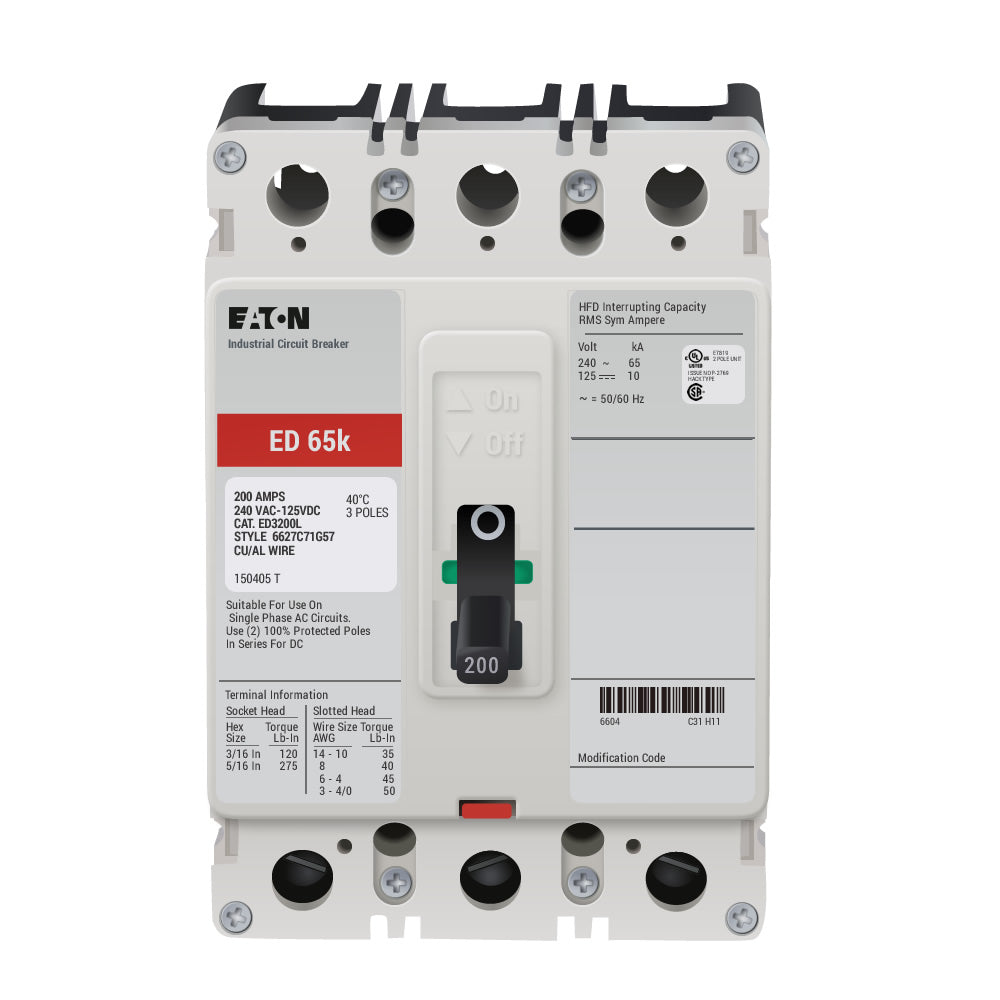

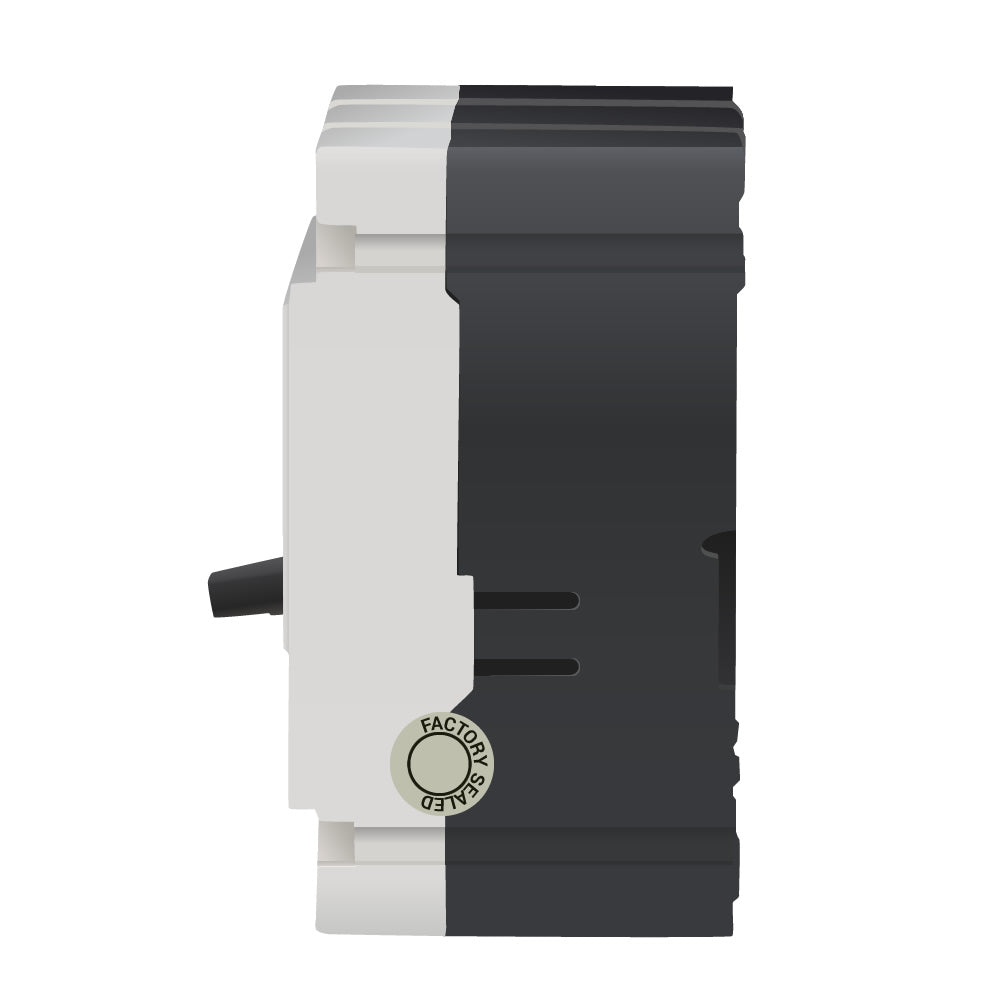

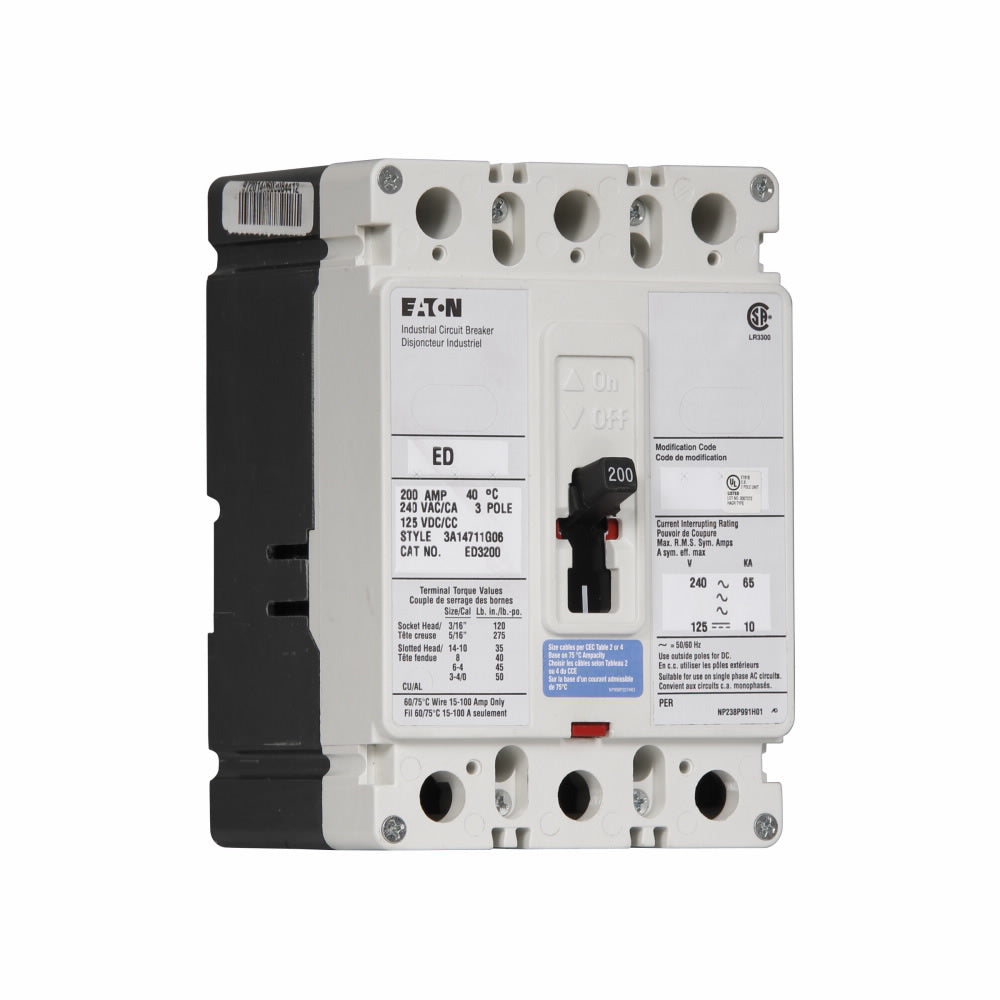

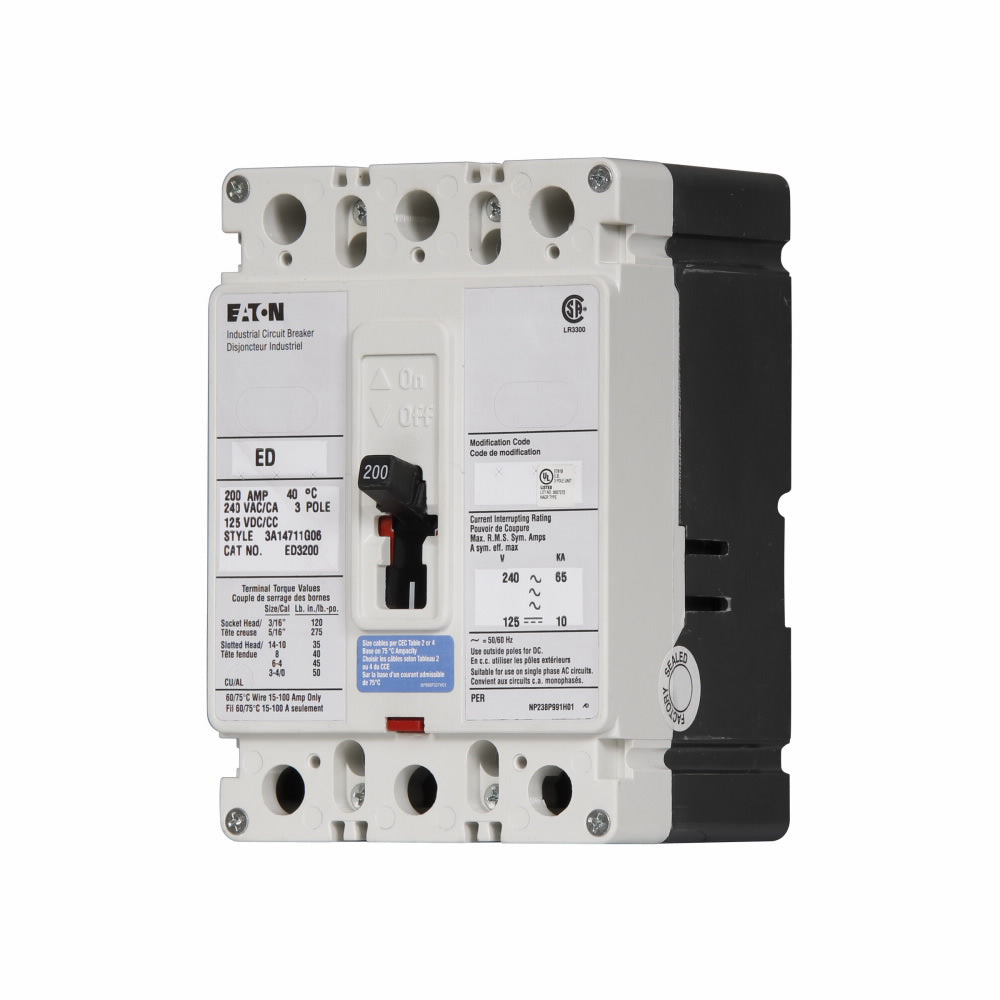

Eaton ED3200L Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V – 35kA @ 480V – Feed-Thru – Series C ED

The Eaton ED3200L is a 200A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C Type ED. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The ED3200L is rated for 240V and provides a 35kA interrupting rating at 480V. It features a feed-thru configuration and includes load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: ED
• Catalog No.: ED3200L
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru

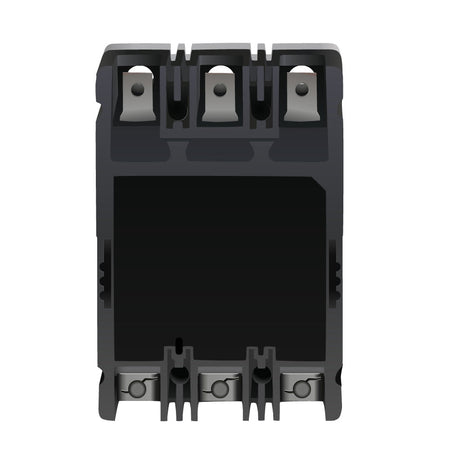

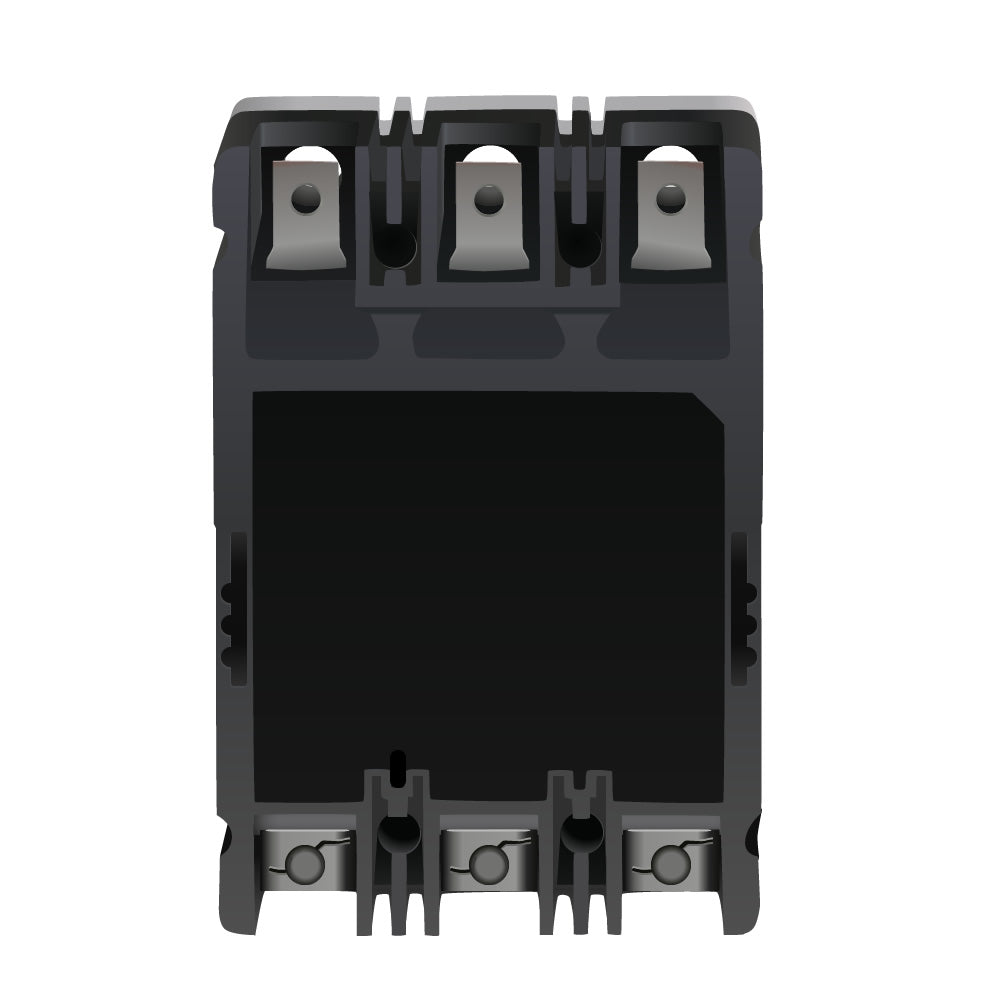

• Terminal Type: Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED3200L
• Catalog Number: ED3200L
• Model: ED3200L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: ED
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• UPC:786679454428

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type ED electrical distribution equipment that accepts ED Series molded case circuit breakers. The ED3200L provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
