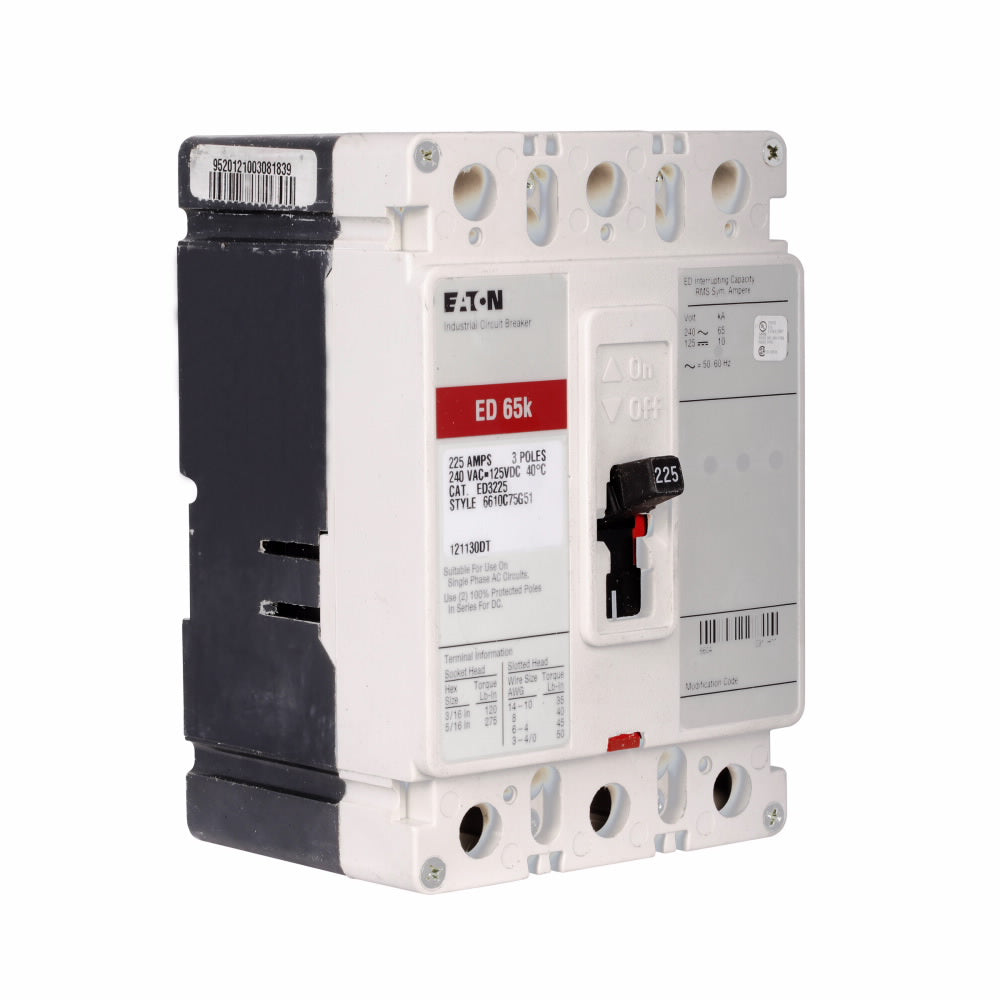

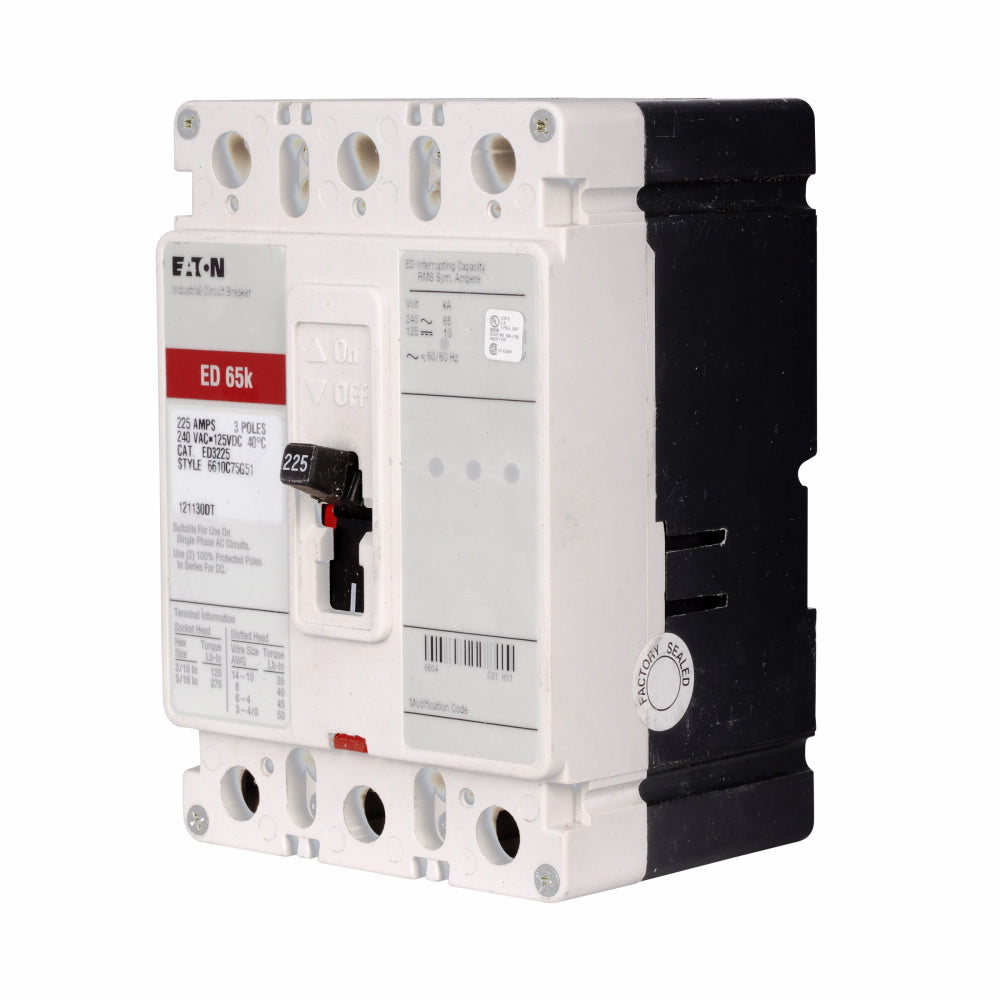

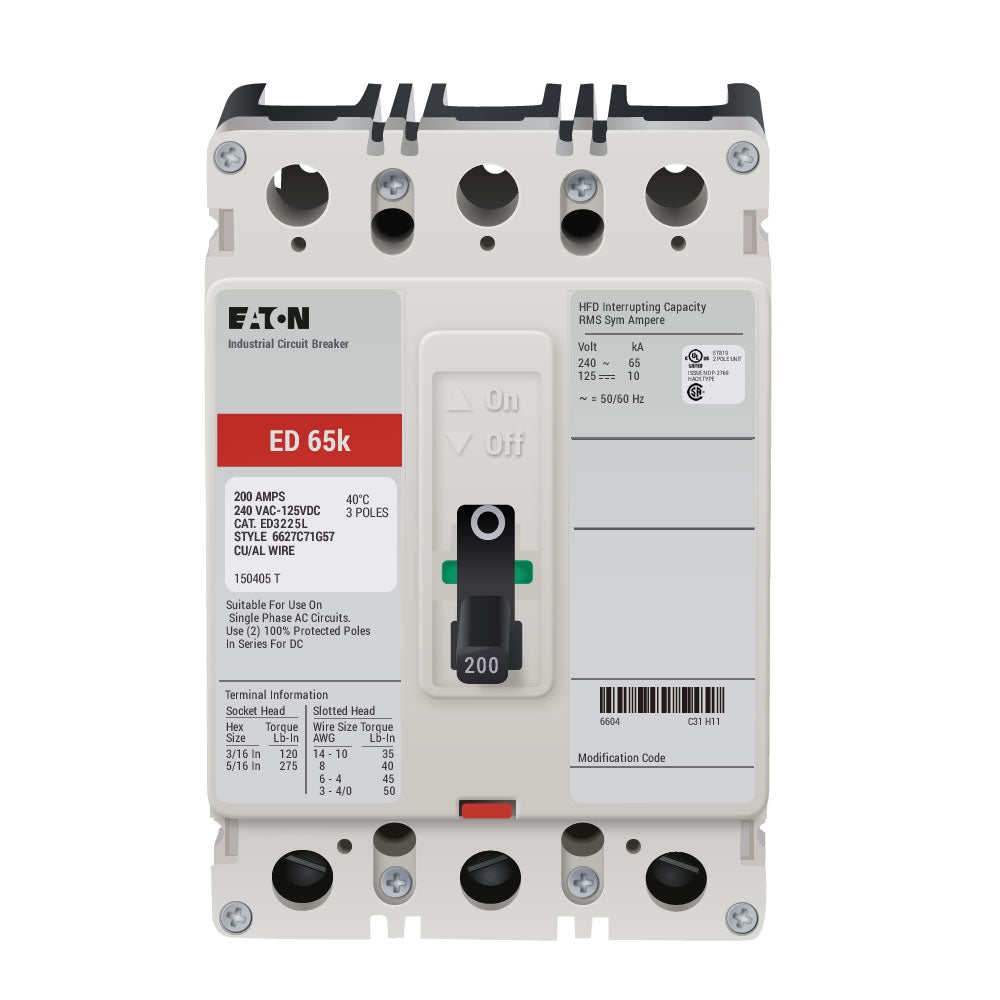

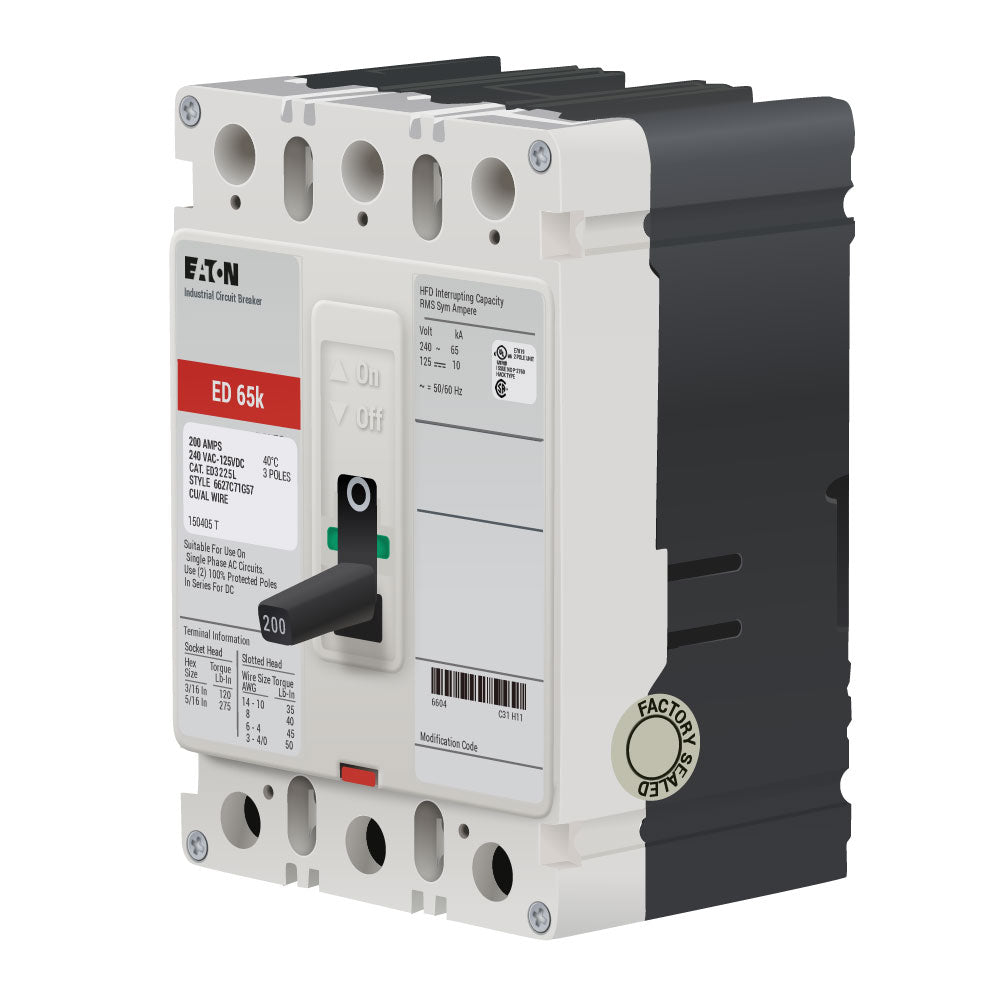

Eaton ED3225L Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 240V – 35kA @ 480V – Feed-Thru – Series C ED

The Eaton ED3225L is a 225A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer / Westinghouse Series C Type ED. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The ED3225L is rated for 240V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, non-interchangeable LI (Long-Time and Instantaneous) trip functions, and line-side and load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: ED
• Catalog No.: ED3225L
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED3225L
• Catalog Number: ED3225L
• Model: ED3225L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: ED
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• UPC:786679454367

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type ED electrical distribution equipment that accepts ED Series molded case circuit breakers. The ED3225L provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals.
